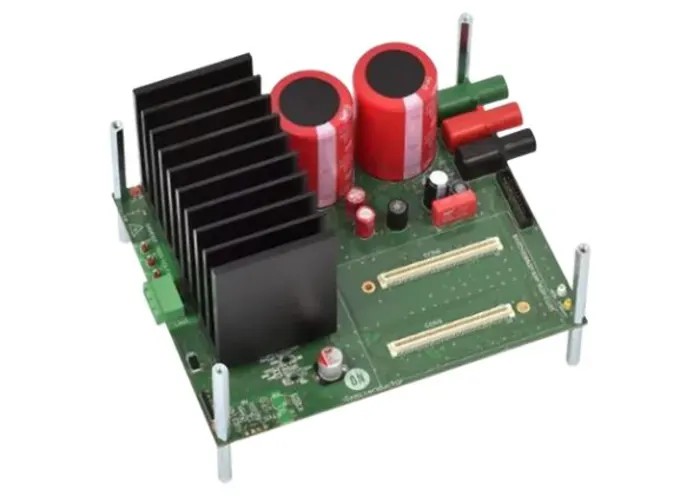

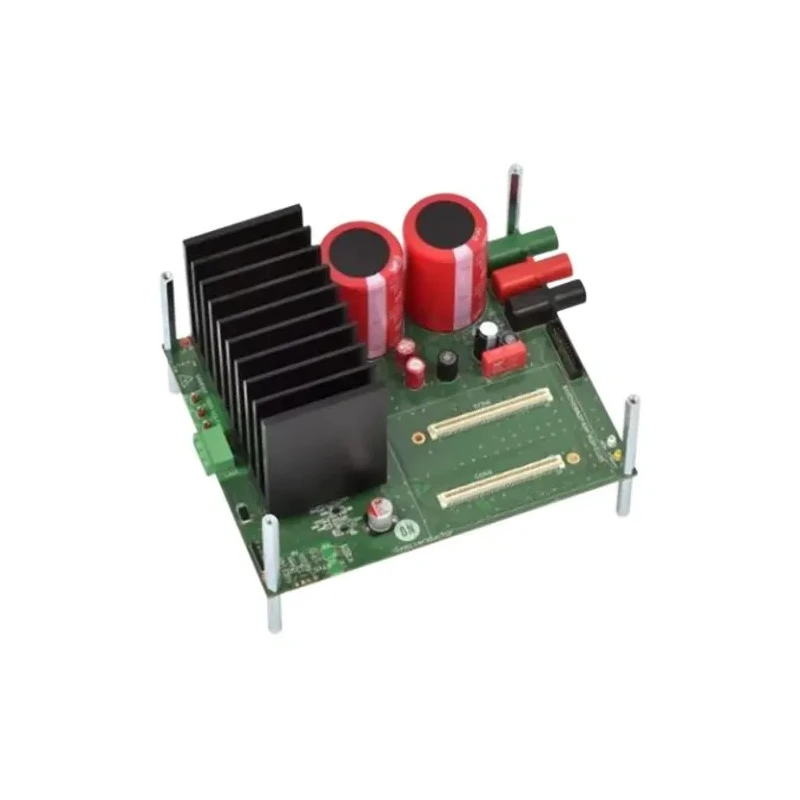

onsemi SECO-MDK-4KW-65SPM31-GEVB Motor Development Kit Evaluation Board for NFAM5065L4B, 4 kW, 650 V
Specifications
| Country of Origin | India |
|---|---|
| Brand | onsemi |
| Model | SECO-MDK-4KW-65SPM31-GEVB |
| For Use With | NFAM5065L4B |
| Inverter Voltage | 650 V |
| Standards/Approvals | RoHS |
| Kit Classification | Development Kit |
| Featured Device | SECO-MDK-4KW-65SPM31-GEVB |
| Kit Name | Evaluation Board |
Key Features
- Suitable for white goods, industrial fans, automation, and motor control projects.
- Supports motor control with up to 4 kW output and 650 V supply voltage.
- Features intelligent power module (NFAM5065L4B) in DIP39 package for high voltage 3-phase inverters.
- Includes DC/DC converters for auxiliary supplies (15V, 5V, 3.3V) and advanced protection circuitry.
- Compatible with Universal Controller Board (FPGA controller based on Xilinx Zynq-7000 SoC).
- Offers encoder interface for 3-HALL sensors and quadrature encoder.
- On-board current, voltage, and temperature sensing with integrated operational amplifiers and thermistor.
- RoHS compliant for safe operation in laboratory and industrial environments.
Product Description
onsemi SECO-MDK-4KW-65SPM31-GEVB is an advanced motor development kit evaluation board designed for high-efficiency three-phase motor drive applications using the NFAM5065L4B intelligent power module. The platform delivers up to 4 kW power with 650 V capability, supporting both continuous and short-term high-power operation. This evaluation board is tailored for product developers and engineers working on white goods, industrial fan drives, automation systems, and general motor control solutions.
The development board is compatible with the Universal Controller Board (UCB) featuring the Xilinx Zynq-7000 SoC. This integration enables robust FPGA-based control strategies for AC induction motors, PMSM, BLDC, and other advanced motor topologies. Out-of-the-box support includes Field Oriented Control (FOC) and V/F control, accessible via a graphical user interface for rapid prototyping and experimentation in laboratory and industrial environments.
4 kW motor control solution for demanding industrial applications. 650 V/50 A NFAM5065L4B intelligent power module mounted in DIP39 package. DC/DC converters generate auxiliary power supplies: 15V (NCP1063), 5V (FAN8303), and 3.3V (NCP718).
Three-phase current measurements enabled by operational amplifiers (NCS20166b), and voltage monitoring via resistive divider circuits. Integrated encoder interface supports both 3-HALL sensors and quadrature encoder for versatile motor feedback.
In-built thermistor for temperature sensing and NCS2250 comparator for over current protection. 512 kB EEPROM with I2C interface provides ample storage for program and control data. Complies with RoHS standards for operational safety and environmental protection.
This evaluation kit streamlines hardware development for high-voltage motor control systems, facilitating rapid design validation and field testing. Ideal for use in industrial automation, motor control research, and commercial white goods prototyping.
Explore more motor driver boards and development platforms from onsemi in the Motor Driver Boards category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It supports an inverter voltage of up to 650 V, allowing for high voltage motor control applications.
The board features the NFAM5065L4B intelligent power module, which is mounted in a DIP39 package.
The board includes advanced protection circuitry, an in-built thermistor for temperature sensing, and a comparator for overcurrent protection.
This kit is designed for high-efficiency motor control applications in white goods, industrial fans, automation, and general motor control solutions.
It complies with RoHS standards, ensuring operational safety and environmental protection.
The evaluation board includes a 512 kB EEPROM with an I2C interface for ample storage of program and control data.
The country of origin for this product is India.
