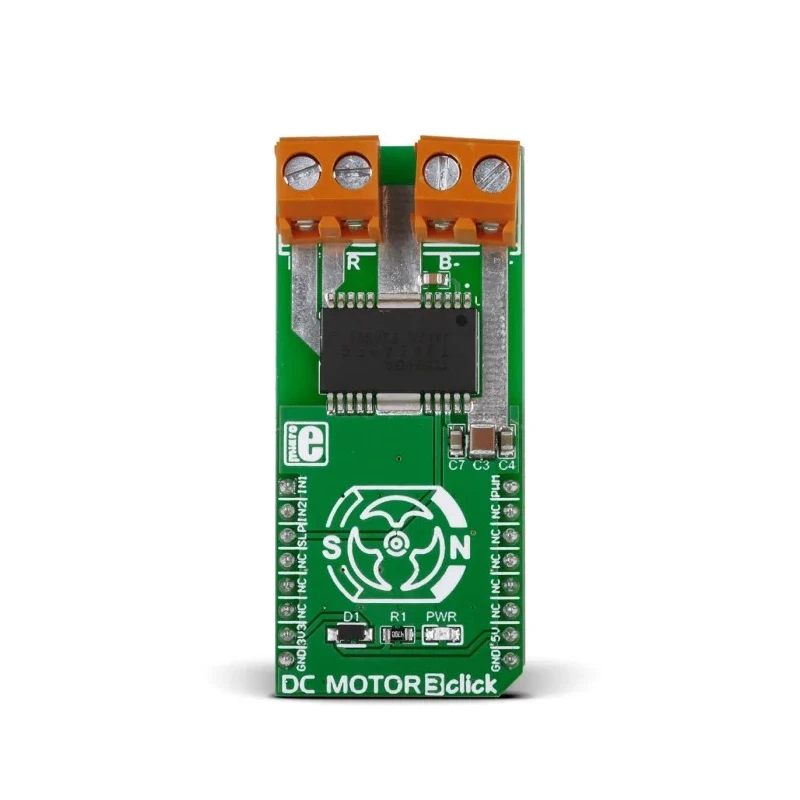

MikroElektronika DC Motor 3 Click DC Motor for TB6549FG High Power Motors MIKROE-2047

Free Delivery in India | Lowest Global Shipping Charges

MikroElektronika DC Motor 3 Click DC Motor for TB6549FG High Power Motors MIKROE-2047

Name: MikroElektronika DC Motor 3 Click DC Motor for TB6549FG High Power Motors MIKROE-2047
Brand: MikroElektronika
SKU: 204654
Price: 36.63 USD
Availability: InStock



Category Motor Driver Boards Brand MikroElektronika Condition New

Specifications

Country of Origin	India
Brand	MikroElektronika
Model	MIKROE-2047
For Use With	High Power Motors
Kit Classification	MikroBus Click Board
Featured Device	TB6549FG
Kit Name	DC Motor 3 Click
Motor operating modes	clockwise rotation, counter-clockwise rotation, short brake and stop

Key Features

Controlled by a sensorless PWM controller IC Toshiba TB6575FNG ensuring precise speed control.
Supports external motor power supply up to 30 V DC with maximum current of 3.5 A.
Motor operating modes include clockwise rotation, counter-clockwise rotation, short brake, and stop.
Features built-in overcurrent protection and thermal shutdown for enhanced safety.
Provides a 3.3 V power supply on mikroBUS socket for onboard logic.

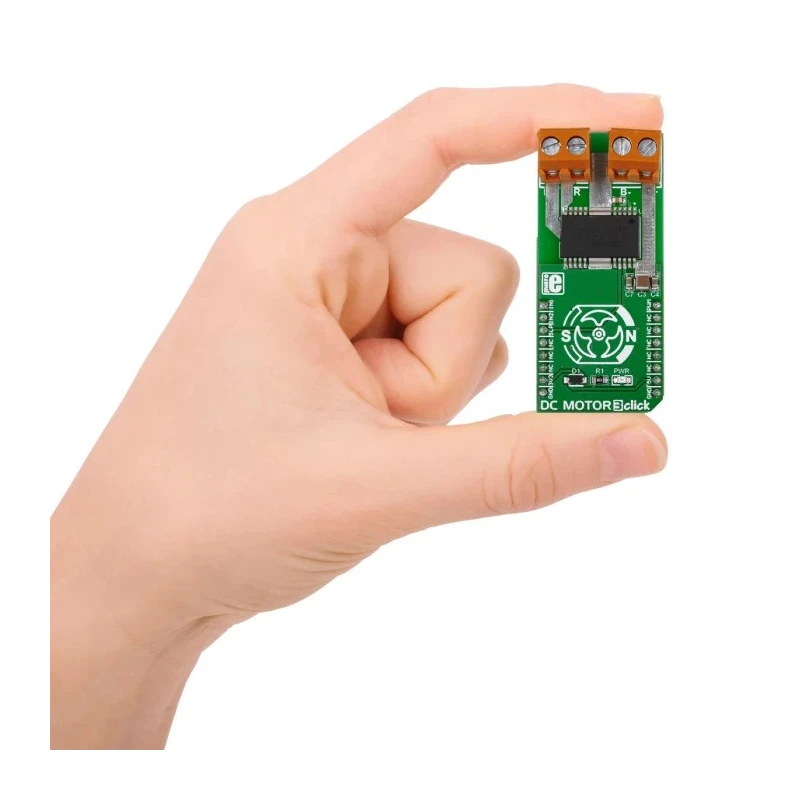

Compact dimensions measure 57.15 x 25.4 mm, suitable for embedded applications.
Standby system to reduce power consumption when motor is inactive.

Product Description

MikroElektronika MIKROE-2047 DC Motor 3 Click is a robust mikroBUS add-on board engineered for controlling high power DC motors in industrial automation, robotics, and power management applications. Powered by the Toshiba TB6575FNG sensorless PWM controller IC, this board enables smooth and accurate motor speed control through pulse width modulation techniques.

The DC Motor 3 Click supports an external motor power supply operating up to 30 V DC and capable of providing continuous current up to 3.5 A, making it suitable for driving medium to high power motors efficiently. It offers multiple motor operating modes including clockwise rotation, counter-clockwise rotation, short brake, and stop, allowing versatile control schemes for various use cases.

Safety is a key feature, with built-in overcurrent protection and thermal shutdown mechanisms to prevent damage under fault conditions. The board also incorporates a standby system to minimize power usage during idle states, improving overall system energy efficiency.

It runs on a 3.3 V power supply available through the mikroBUS socket, providing compatibility with a wide range of embedded controllers and development platforms. The compact form factor of 57.15 x 25.4 mm facilitates easy integration into prototypes or end-user devices.

This evaluation board is ideal for engineers and developers working on motor control projects within industrial, robotics, automation, and educational environments requiring reliable and controllable DC motor driving.

Controlled by Toshiba TB6575FNG sensorless PWM IC for precise speed regulation. Accepts external motor supply up to 30 V DC and 3.5 A continuous current. Supports motor modes: clockwise, counter-clockwise, short brake, stop.

Integrated overcurrent protection and thermal shutdown system. MikroBUS 3.3 V power supply for seamless MCU interfacing. Compact dimensions enable flexible deployment in embedded setups. Energy-efficient standby system for reduced power consumption.
