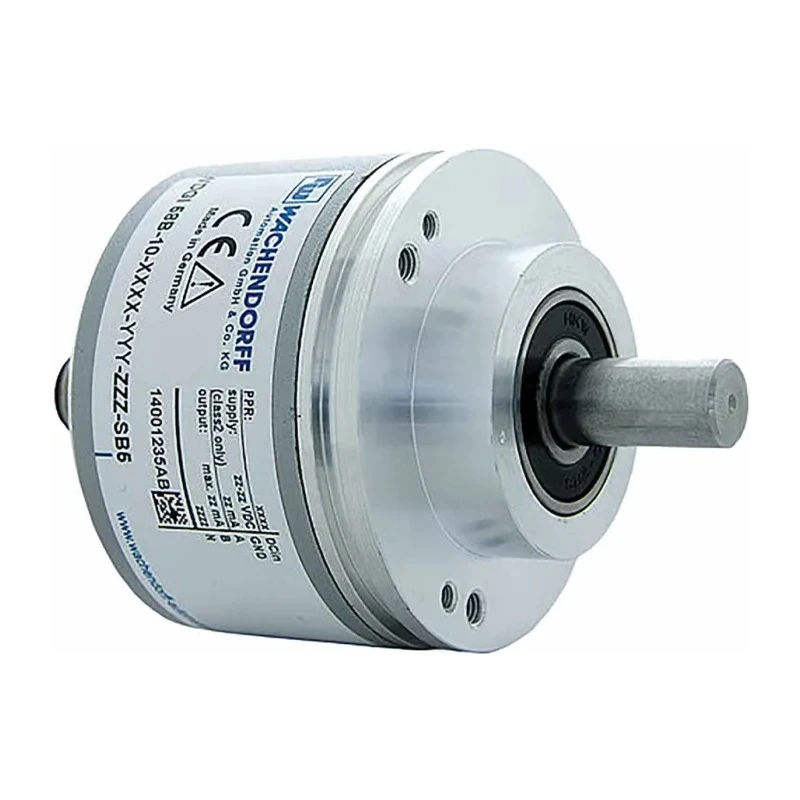

Wachendorff WDGI 58B Series Incremental Encoder 30V dc, 4096 ppr, HTL Signal, Solid Shaft 10 mm WDG58B-4096-ABN-G24-K3

Free Delivery in India | Lowest Global Shipping Charges

Wachendorff WDGI 58B Series Incremental Encoder 30V dc, 4096 ppr, HTL Signal, Solid Shaft 10 mm WDG58B-4096-ABN-G24-K3

Name: Wachendorff WDGI 58B Series Incremental Encoder 30V dc, 4096 ppr, HTL Signal, Solid Shaft 10 mm WDG58B-4096-ABN-G24-K3
Brand: Wachendorff
SKU: 182508
Price: 409.45 USD
Availability: InStock



Category Incremental Encoder Brand Wachendorff Condition New

Specifications

Country of Origin	United States
Brand	Wachendorff
Model	WDG58B-4096-ABN-G24-K3
IP Rating	IP67, IP65
Mount Type	Clamping Flange Mount
Standards	DIN VDE 0160
Series	WDGI 58B
Overall Width	83mm
Maximum Operating Temperature	80°C
Minimum Operating Temperature	-20°C
Shaft Diameter	10mm
Overall height	83mm
Switching Frequency	200kHz
Shaft Type	Solid
Terminal type	Cable and Connector
Pulses per Revolution	4096ppr
Maximum Supply Voltage	30V dc
Encoder Technology	Incremental
Maximum Revolutions	8000rpm
Output Signal Type	HTL
High protection class according to DIN 40 050	IP65 (shaft), IP67 (cover)

Key Features

Encodes rotary motion with 4096 ppr precision.
Maximum rotational speed of 8000 rpm enables high-speed monitoring.
Solid shaft design with 10 mm diameter ensures durability.
Compatible with 30V dc power supply for standard industrial systems.
High protection rating with IP65 at the shaft and IP67 at the cover guards against environmental threats.
Equipped with a clamping flange mount for secure installation.
Operating temperature range from -20°C to 80°C suits varied industrial environments.
Robust aluminium housing contributes to long-term reliability.

Product Description

Wachendorff WDG58B-4096-ABN-G24-K3 is a high-precision incremental encoder designed for industrial automation, motion control, and sensor integration. It operates on a 30V dc power supply and delivers 4096 pulses per revolution, facilitating accurate measurement of rotational speed, position, and distance.

The encoder features a solid 10 mm diameter shaft combined with a sturdy aluminium housing, optimized for heavy-duty applications demanding robustness and longevity. Its clamping flange mount ensures stable and secure placement in diverse mounting scenarios.

Designed to withstand demanding industrial environments, the unit offers an IP65 protection class at the shaft and IP67 for the cover, safeguarding against dust and water ingress. It supports operational temperatures from -20°C up to 80°C, enhancing its suitability across a broad spectrum of conditions.

With a maximum rotational speed rating of 8000 rpm and a switching frequency of 200kHz, this device provides reliable and precise output signals in HTL format. The encoder incorporates early warning outputs and a highly precise chip analysis system to ensure operational integrity and predictive maintenance capabilities.

This Incremental Encoder is widely applicable in sectors such as manufacturing, packaging, robotics, material handling, and automation systems, where accurate motion control and feedback are critical.

Encodes rotary motion with 4096 ppr precision. Maximum rotational speed of 8000 rpm. Solid 10 mm shaft diameter for durable operation. 30V dc operating voltage for standard industrial compatibility. High ingress protection with IP65 (shaft) and IP67 (cover).

Clamping flange mounting for stable installation. Wide operating temperature range from -20°C to 80°C. Robust aluminium housing enhances durability. Cable and connector terminal type for convenient connectivity.

For reliable and precise incremental encoding, the WDG58B-4096-ABN-G24-K3 by Wachendorff is an excellent choice. Browse our category for more top-quality motion control sensors and industrial automation components.
