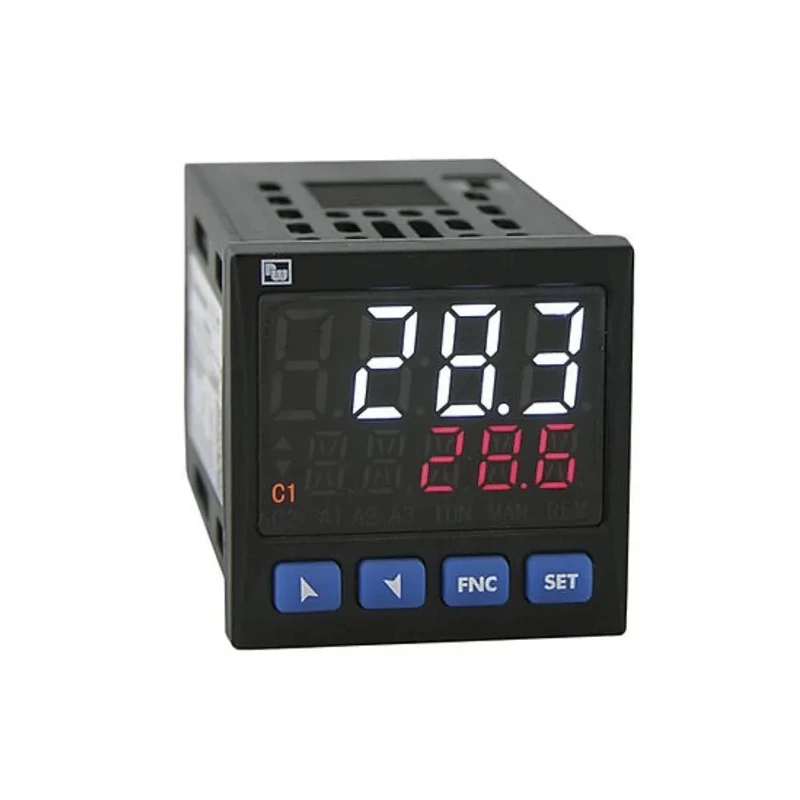

Wachendorff DIN Rail PID Temperature Controller 2 Input, 3 Output 4 to 20 mA, Analogue (0 to 10 V), Relay, SSR UR4848xA

Wachendorff UR4848xA DIN Rail PID Temperature Controller is a compact, highly configurable industrial instrument designed for accurate temperature process control in industrial and automation environments. Featuring a universal input capability for process signals such as thermocouples, Pt100, Pt500, Pt1000, RTD, and potentiometers, this device supports multiple control modes including PID, PI, PD Control with proportional time, and On-Off with hysteresis, enabling versatile and precise temperature management.

The controller provides 2 inputs and 3 outputs, including analogue outputs (4 to 20 mA and 0 to 10 V), Relay, and SSR PNP outputs with a maximum current rating of 2 Amps, suitable for driving a variety of control elements within the automation chain. With a robust IP20 and IP65 protection rating, it is ideal for use in demanding industrial, laboratory, HVAC, and manufacturing applications.

Designed to be easily mounted on standard DIN rails, this device features compact dimensions of 48mm (width) by 8mm (length) and a panel depth of 80mm. It operates reliably across a temperature range from 0 to 45 degrees Celsius and runs on a supply voltage of 230 V with a maximum voltage rating of 250 V AC. Digital communication is facilitated via RS485 Modbus RTU slave protocol to support integration in complex automation and process control systems.

Certified for compliance with Low Voltage Directive 2014/35/EU and Electromagnetic Compatibility Directive 2014/30/EU, this CE-marked product ensures safety and performance in industrial control settings. Originating from Italy, this temperature controller is ideal for process control in industries requiring accurate temperature regulation and reliable operational continuity.

Equipped with PID, PI, PD control, and On-Off with hysteresis for versatile temperature regulation. Supports universal input types including thermocouples, Pt sensors, RTDs, and potentiometers. Features a 4 to 20 mA, 0 to 10 V analogue outputs, relay and SSR PNP outputs with a maximum current of 2A.

Robust design with IP20 and IP65 ratings suitable for industrial environments. Compact DIN rail mount with dimensions 48mm width, 8mm length, and 80mm panel depth. Includes RS485 Modbus RTU Slave digital communication for integration in automation systems.

Operates between 0°C to 45°C, supporting a 230 V supply voltage and maximum 250 V AC voltage. Complies with Low Voltage and EMC directives; CE marked for quality assurance.

This product is suitable for industrial automation, laboratory measurement and control, HVAC systems, manufacturing process control, and water treatment plants. To explore more options in temperature control and automation devices, browse the Temperature Controllers category on EnvMart.
