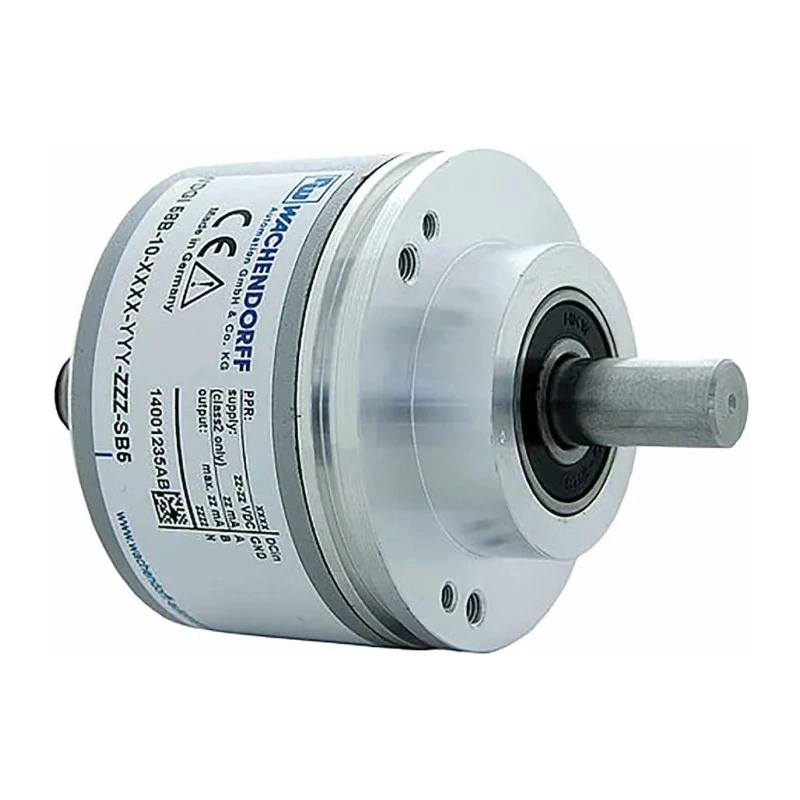

Wachendorff Incremental Encoder 5.5V DC, 360 PPR, TTL Inverted RS422 Signal, Solid Shaft 10mm, WDGI WDG58B-360-ABN-I05-K3

Free Delivery in India | Lowest Global Shipping Charges

Wachendorff Incremental Encoder 5.5V DC, 360 PPR, TTL Inverted RS422 Signal, Solid Shaft 10mm, WDGI WDG58B-360-ABN-I05-K3

Name: Wachendorff Incremental Encoder 5.5V DC, 360 PPR, TTL Inverted RS422 Signal, Solid Shaft 10mm, WDGI WDG58B-360-ABN-I05-K3
Brand: Wachendorff
SKU: 182502
Price: 370.18 USD
Availability: InStock



Category Incremental Encoder Brand Wachendorff Condition New

Specifications

Country of Origin	United States
Brand	Wachendorff
Model	WDG58B-360-ABN-I05-K3
IP Rating	IP67, IP65
Mount Type	Clamping Flange Mount
Standards	DIN VDE 0160
Series	WDGI 58B
Overall Width	83mm
Maximum Operating Temperature	80°C
Minimum Operating Temperature	-20°C
Shaft Diameter	10mm
Overall height	83mm
Switching Frequency	200kHz
Shaft Type	Solid
Terminal type	Cable and Connector
Pulses per Revolution	360ppr
Maximum Supply Voltage	5.5V dc
Encoder Technology	Incremental
Maximum Revolutions	8000rpm
Output Signal Type	TTL Inverted, RS422
High protection class according to DIN 40 050	IP65 (shaft), IP67 (cover)

Key Features

Encodes 360 pulses per revolution for accurate position feedback.
Supports maximum rotational speed up to 8000 rpm for high-speed applications.
Solid shaft design with 10 mm diameter ensures robust mechanical connection.
IP67 and IP65 protection classes provide excellent environmental resistance.
Operates reliably between -20°C and 80°C temperature range.
Equipped with clamping flange mount for secure installation.
High switching frequency of 200 kHz supports fast signal processing.
Constructed with industrial-grade aluminium housing for durability.

Product Description

Wachendorff WDG58B-360-ABN-I05-K3 is a high-performance incremental rotary encoder designed for precise measurement of rpm, position, distance, or speed in various industrial automation and motion control applications. It features a solid 10 mm diameter shaft and is configured to deliver TTL inverted and RS422 signal outputs at 360 pulses per revolution.

The encoder supports rotational speeds up to 8000 rpm, making it suitable for high-speed machinery. Its rugged aluminium housing and a clamping flange mount ensure robust mechanical stability and ease of installation. The device offers exceptional protection with an IP67 rating for the cover and IP65 for the shaft, which guards against dust and water ingress in harsh operating environments.

Operating reliably in temperature ranges from -20°C to 80°C, this encoder is ideal for demanding industrial settings including automation, manufacturing, robotics, and process control. It utilizes high precision chip analysis technology offering early warning output to enhance reliability and maintainability. The design complies with DIN VDE 0160 standards, reflecting its suitability for industrial electrical applications.

Key features include a very high switching frequency of 200 kHz, ensuring fast and accurate signal processing necessary for precise motion feedback. This product originates from the United States, supporting global standards and quality benchmarks.

360 pulses per revolution for precise measurement. Up to 8000 rpm maximum speed capability. Robust aluminium industrial housing. IP67 cover and IP65 shaft protection ratings. Wide operating temperature range from -20°C to 80°C.

Clamping flange mount for secure attachment. High switching frequency of 200 kHz. Complies with DIN VDE 0160 electrical standards.

This Incremental Encoder is widely used in industrial automation, manufacturing equipment, robotics, and other applications requiring accurate rotary position sensing and speed feedback. For more precision automation and sensing products, explore the Electronics & Electricals Sensors category at EnvMart.
