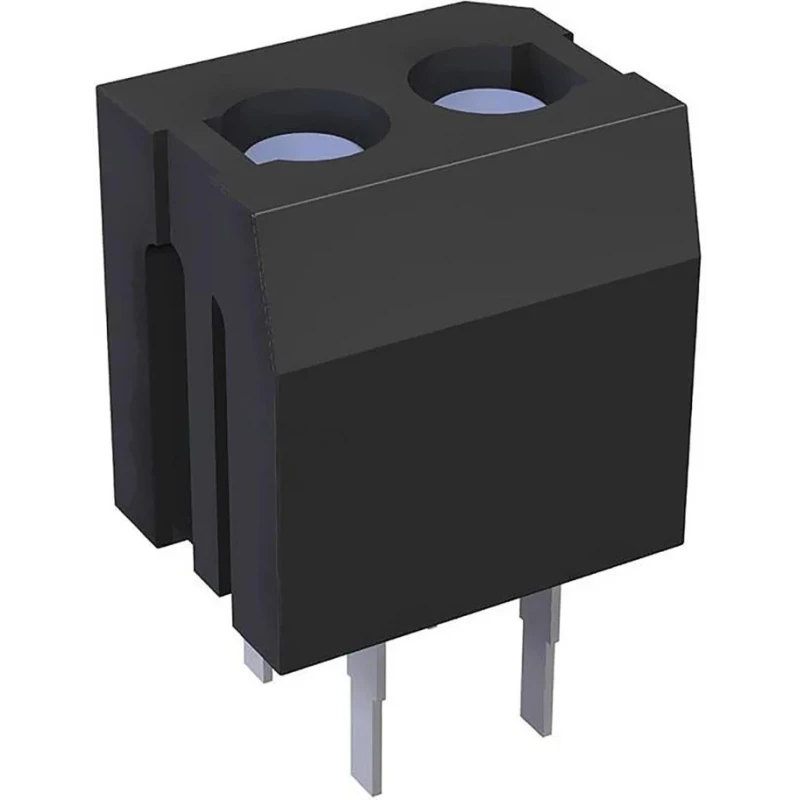

ROHM Through Hole Reflective Optical Sensor Phototransistor Output 1-Channel Radial Package RPR-220UC30N

The ROHM RPR-220UC30N is a high performance through hole reflective optical sensor designed for industrial and electronic applications requiring reliable and precise sensing capabilities. This sensor integrates a phototransistor output in a compact radial package with four pins, making it simple to install on PCBs via through hole mounting. It features a peak sensor distance of 6 mm, optimal for short-range detection tasks.

With typical rise and fall times of 10 microseconds, the sensor offers rapid response characteristics essential for high-speed signal processing applications. The operational temperature range from -25°C to 85°C ensures dependable operation in harsh environments such as factory floors, automotive electronics, and laboratory instruments.

RoHS compliance certifies the sensor's adherence to environmental safety standards. Its compact dimensions of approximately 6.4 mm in length, 6.5 mm in height, and 4.9 mm in width allow integration into space-constrained electronic assemblies.

Packaging is supplied in tubes, facilitating ease of use during automated assembly processes. The sensor’s single phototransistor channel output makes it suitable for reflective sensing tasks in devices ranging from optical encoders to presence detection on machinery.

Its robust design and precise optical sensing render it applicable in industrial automation, instrumentation, consumer electronics, and commercial equipment requiring accurate, reliable, and fast reflective optical detection.

The sensor features a peak sensing distance of 6 millimeters ensuring accurate proximity detection. It uses a phototransistor output device providing fast response times with typical rise and fall times of 10 microseconds.

Designed with a radial package and through hole mount type for easy PCB integration. Dimensions are compact with 6.4 mm length, 6.5 mm height, and 4.9 mm width. Operates reliably in temperature ranges from -25°C to 85°C fulfilling rugged industrial conditions.

Complies with RoHS environmental standards promoting hazardous substance compliance. Equipped with 4 pins and a single channel operation suitable for precise optical sensing applications. Ideal for use in electronic devices, industrial automation, instrumentation, and control systems.

Packaging provided in a protective tube format ensuring safe handling and storage. Explore the ROHM brand and Reflective Optical Sensors category on EnvMart for more specialized sensing solutions tailored to industrial and commercial requirements.
