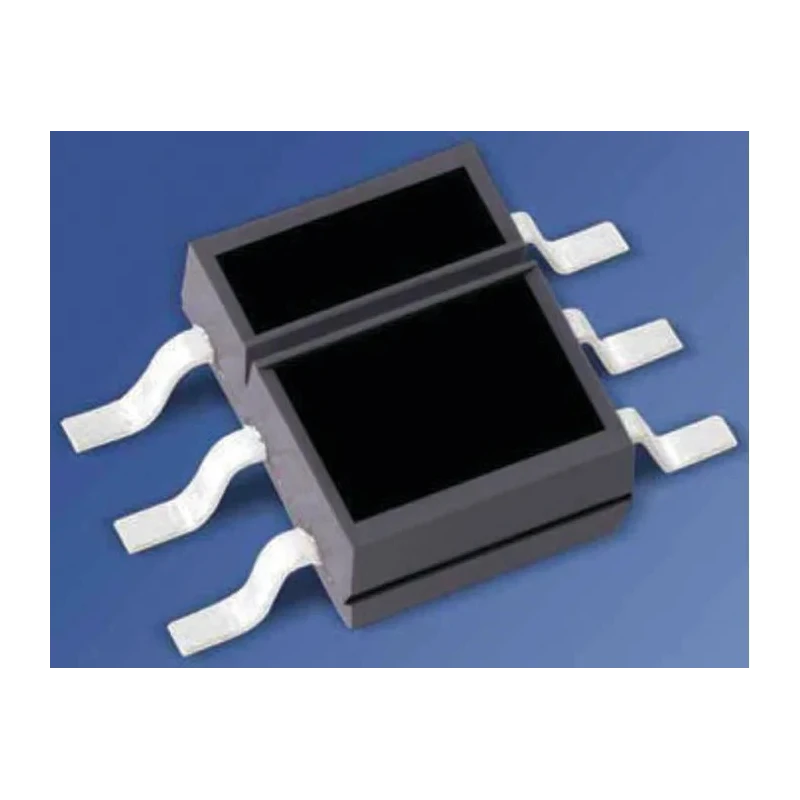

ams OSRAM SFH 9206 PCB Reflective Optical Sensor with Phototransistor Output, Surface Mount Package SFH 9206
Specifications
| Country of Origin | India |
|---|---|
| Brand | ams OSRAM |
| Height | 4.2mm |
| Length | 6.2mm |
| Model | SFH 9206 |
| Packaging | Tape & Reel |
| Width | 2.1mm |
| Mount Type | PCB |
| Series | SFH 9206 |
| Maximum Operating Temperature | 100°C |
| Package Type | Surface Mount |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 1 |
| Output Device | Phototransistor |
| Number of Pins | 6 |
| Typical Rise Time | 30μs |
| Typical Fall Time | 40μs |
| Peak Sensor Distance | 5mm |
Key Features
- The sensor has a peak sensing distance of 5 mm for precise detection.
- Phototransistor output ensures responsive signal conversion.
- Typical rise time is 30 microseconds and fall time is 40 microseconds.
- Comes in tape and reel packaging for automated assembly.
- Features a compact surface mount package measuring 6.2 mm length, 4.2 mm height, and 2.1 mm width.
- Operating temperature range is from -40°C to 100°C ensuring robust use in diverse environments.
- Includes a daylight filter for improved sensing accuracy.
- Suitable for position reporting, end position switching, speed regulation, and motion transmitter applications.
Product Description
ams OSRAM SFH 9206 PCB Reflective Optical Sensor SFH 9206 is a compact surface-mounted device designed for precise reflective sensor applications. It integrates a 950 nm LED and a silicon NPN phototransistor in a surface-mount package, featuring an integrated daylight filter for enhanced optical performance.
This reflective optical sensor is engineered for use in industrial, electronic, and automation environments where position detection, end position switching, speed regulation, and motion transmission are critical. Its 5 mm peak sensor distance and fast response times (30µs rise and 40µs fall) allow accurate and rapid sensing.
The device's package size of 6.2 mm length, 4.2 mm height, and 2.1 mm width enables compact PCB mounting. It supports one channel with six pins and is delivered in tape and reel packaging for efficient automated assembly.
With an operating temperature range from -40°C to 100°C, it ensures reliable performance in harsh conditions. The SFH 9206 complies with important industry standards including EN 60721-3-3 (IEC 721-3-3), RoHS, JEDEC Level 4, and J-STD-020D.01.
Typical applications encompass industrial automation, motion control systems, speed regulation, and position detection in electronic devices and machinery. The integrated daylight filter enhances the sensor's accuracy by reducing ambient light interference.
The peak sensor distance is 5 mm ensuring precise reflective detection. Phototransistor output delivers clear and responsive signal conversion. Fast typical rise and fall times of 30µs and 40µs respectively. Tape and reel packaging supports high-volume manufacturing automation.
Compact dimensions (6.2 x 4.2 x 2.1 mm) allow versatile PCB integration. Wide operating temperature range (-40°C to 100°C) for challenging environments. Includes built-in daylight filter for improved sensing reliability.
Complies with RoHS and other key industry standards for quality assurance. Single channel and 6-pin configuration for straightforward PCB mounting. Explore the extensive range of optical and reflective sensors on EnvMart for advanced industrial and electronic sensor solutions.
Explore more products in our Reflective Optical Sensors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The peak sensing distance of the SFH 9206 sensor is 5 mm, allowing for precise reflective detection.
This model features a phototransistor output, ensuring responsive signal conversion.
The typical rise time is 30 microseconds and the fall time is 40 microseconds, enabling rapid sensing response.
The dimensions of the SFH 9206 are 6.2 mm in length, 4.2 mm in height, and 2.1 mm in width, allowing for compact PCB mounting.
The operating temperature range for the SFH 9206 is from -40°C to 100°C, making it suitable for various environments.
It comes in tape and reel packaging, which supports automated assembly processes.
This sensor supports PCB mounting, facilitating integration into electronic devices.
The SFH 9206 sensor has one channel with a six-pin configuration for straightforward PCB integration.
The SFH 9206 complies with EN 60721-3-3 (IEC 721-3-3), RoHS, JEDEC Level 4, and J-STD-020D.01 standards.
This sensor is suitable for applications such as position reporting, end position switching, speed regulation, and motion transmission.
Yes, it includes a daylight filter that enhances sensing accuracy by reducing ambient light interference.
The SFH 9206 is manufactured in India.
