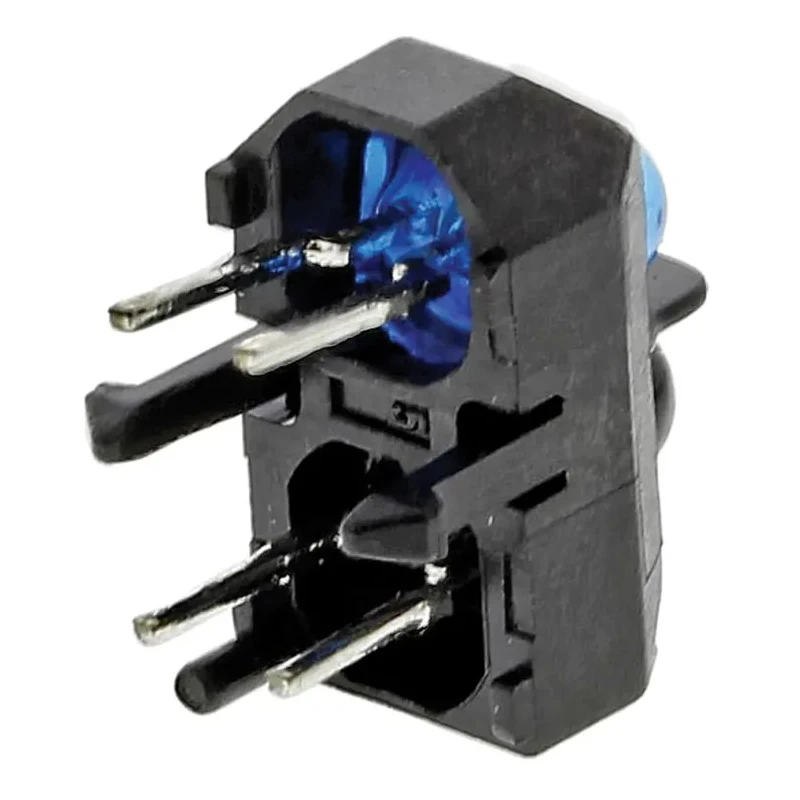

Vishay Through Hole Reflective Optical Sensor Phototransistor Output, 1-Channel, Leaded Package TCRT5000
Specifications
| Country of Origin | Philippines |
|---|---|
| Brand | Vishay |
| Height | 7mm |
| Length | 10.2mm |
| Model | TCRT5000 |
| Packaging | Tube |
| Width | 5.8mm |
| Mount Type | Through Hole |
| Series | TCRT5000 |
| Maximum Operating Temperature | 85°C |
| Package Type | Leaded |
| Minimum Operating Temperature | -25°C |
| Number Of Channels | 1 |
| Output Device | Phototransistor |
| Standards/Approvals | RoHS 2002/95/EC, WEEE 2002/96/EC |
| Number of Pins | 4 |
| Output Signal Type | Transistor |
| Peak Sensor Distance | 2.5mm |
Key Features
- The reflective sensor integrates an infrared emitter and phototransistor in a compact leaded package.
- Peak sensor distance is 2.5 mm ensuring accurate detection of reflective materials.
- Designed with daylight blocking filter to minimize interference and enable reliable operation.
- Operating temperature ranges from -25°C to 85°C ensuring durability in various environments.
- Ideal for position sensing in shaft encoders and detection of paper, magnetic tapes, and other reflective surfaces.
- Features a package dimension of 10.2 x 5.8 x 7 mm for easy through-hole mounting.
- Compliant with RoHS 2002/95/EC and WEEE 2002/96/EC environmental standards.
- Typically used as limit switches in mechanical motion devices such as VCRs or for general sensing where space is limited.
Product Description
Vishay TCRT5000 Through Hole Reflective Optical Sensor is a precise phototransistor output sensor featuring a 1-channel leaded package optimized for diverse electronic sensing applications. It includes an infrared emitter and phototransistor housed in a leaded package that effectively blocks visible light interference.
The sensor is engineered with a peak operating distance of 2.5 mm, delivering reliable detection of reflective materials including paper, IBM cards, magnetic tapes, and more. It incorporates a daylight blocking filter to reduce ambient light effects and improve signal fidelity.
With dimensions of 10.2 mm length, 5.8 mm width, and 7 mm height, the TCRT5000 sensor is designed for through-hole mounting and is compatible with tube packaging. Operating temperature ranges from -25°C to 85°C ensure stable performance in industrial, laboratory, and commercial environments.
This sensor finds widespread use as a position sensor for shaft encoders, limit switches for mechanical motions such as in video cassette recorders, and general-purpose reflective sensing applications with space constraints. Its phototransistor output enables straightforward signal processing in electronic systems.
The reflective sensor package includes two mounting clips for secure installation. Peak sensor distance of 2.5 mm enables precise detection of reflective surfaces. Daylight blocking filter ensures high accuracy even under ambient light conditions.
Operates reliably within a temperature range of -25°C to 85°C. Complies with RoHS 2002/95/EC and WEEE 2002/96/EC environmental directives. Compact dimensions facilitate integration in space-limited devices. Ideal for industrial automation, electronics manufacturing, and laboratory instrumentation use cases.
Choose Vishay TCRT5000 for dependable, compact reflective optical sensing solutions. Explore more sensors and optoelectronic components in the EnvMart catalog to complement your electronic design needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The peak sensor distance for the TCRT5000 is 2.5 mm, allowing for accurate detection of reflective materials.
This model operates within a temperature range of -25°C to 85°C, ensuring stable performance in various environments.
The dimensions of the TCRT5000 are 10.2 mm in length, 5.8 mm in width, and 7 mm in height, making it suitable for through-hole mounting.
The TCRT5000 features a phototransistor output, which enables straightforward signal processing in electronic systems.
This sensor complies with RoHS 2002/95/EC and WEEE 2002/96/EC environmental standards.
The TCRT5000 is a 1-channel sensor, designed for various electronic sensing applications.
This model utilizes a through-hole mounting type, facilitating easy integration into electronic devices.
The TCRT5000 is designed to detect reflective materials such as paper, magnetic tapes, and IBM cards.
The TCRT5000 comes in a leaded package, which is suitable for through-hole applications.
The output signal type of the TCRT5000 is a transistor output, allowing for effective signal transmission.
The reflective optical sensor package includes two mounting clips for secure installation.
The TCRT5000 is manufactured in the Philippines.
