ams OSRAM SFH 9206-5/6 Surface Reflective Optical Sensor, Phototransistor Output, 5mm Peak Sensor Distance SFH 9206-5/6

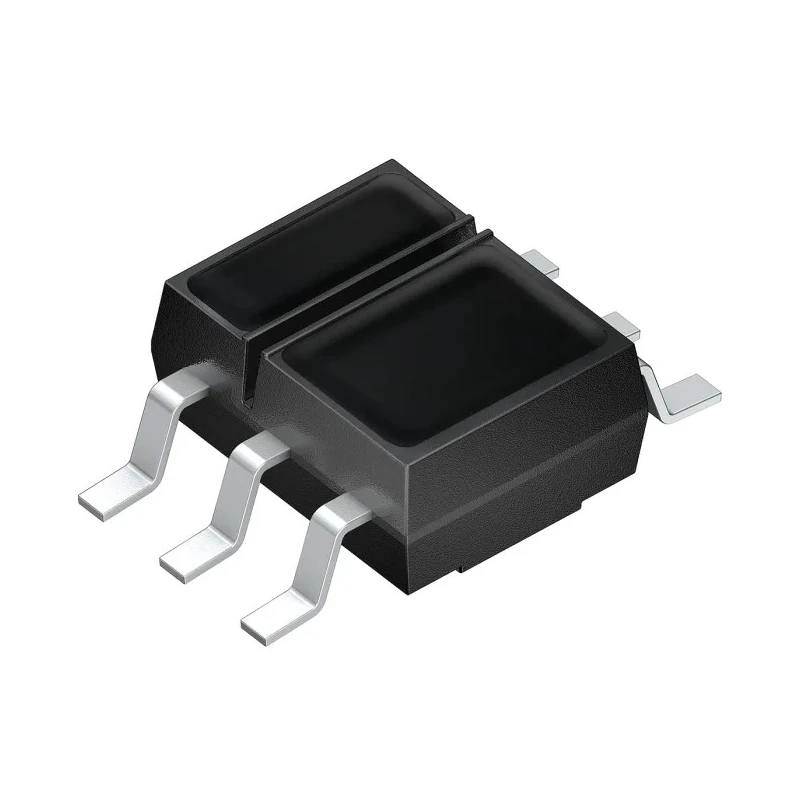

Name: ams OSRAM SFH 9206-5/6 Surface Reflective Optical Sensor, Phototransistor Output, 5mm Peak Sensor Distance SFH 9206-5/6
Brand: ams OSRAM
SKU: 388436
Price: 0.89 USD
Availability: InStock



Category Reflective Optical Sensor Brand ams OSRAM Condition New

Specifications

Country of Origin	Malaysia
Brand	ams OSRAM
Height	2.1mm
Length	4.2mm
Model	SFH 9206-5/6
Packaging	Tape & Reel
Width	3.4mm
Mount Type	Surface
Series	SFH 9206
Maximum Operating Temperature	100°C
Minimum Operating Temperature	-40°C
Output Device	Phototransistor
Standards/Approvals	MSL Level 4
Number of Pins	6
Typical Rise Time	30μs
Typical Fall Time	40μs
Peak Sensor Distance	5mm

Key Features

The sensor is surface-mounted with a compact size of 4.2mm length, 3.4mm width, and 2.1mm height.
It incorporates a 950 nm LED and silicon NPN phototransistor with a daylight filter.
Typical rise time is 30 microseconds and fall time is 40 microseconds ensuring fast response.
Operates reliably within a temperature range from -40°C to 100°C.
Packaged in tape and reel format for efficient automated assembly.
Includes 6 pins for electrical connections.
Designed for position reporting, end position switch, speed regulation, and motion transmission applications.
Complies with MSL Level 4 standards for quality and reliability.

Product Description

ams OSRAM SFH 9206-5/6 Surface Reflective Optical Sensor is an advanced reflective sensor featuring a phototransistor output and a peak sensor distance of 5mm, suitable for precise optical detection applications.

The device comes in a surface mount technology (SMT) package with dimensions of 4.2mm length, 3.4mm width, and 2.1mm height, integrating a 950 nm wavelength LED and a silicon NPN phototransistor with a daylight filter to provide high detection accuracy.

It exhibits a typical rise time of 30 microseconds and fall time of 40 microseconds, enabling rapid response in dynamic sensing environments. The sensor is engineered to operate efficiently within a broad temperature range from -40°C up to 100°C, ensuring reliable performance in various industrial and environmental conditions.

Packaged using tape and reel for compatibility with automated pick-and-place machinery, the device features 6 pins for secure electrical connectivity. The SFH 9206-5/6 sensor is ideal for applications such as position reporting, end position switches, speed regulation, and motion transmitters in industrial automation, instrumentation, and electronic device manufacturing.

This product meets MSL Level 4 standards reflecting its robustness and quality assurance. Originating from Malaysia, the sensor provides a reliable component option for OEMs requiring consistent and precise reflective optical sensing capabilities.

The sensor is surface-mounted with a compact size of 4.2mm length, 3.4mm width, and 2.1mm height. Incorporates a 950 nm LED and silicon NPN phototransistor with a daylight filter. Typical rise and fall times of 30μs and 40μs respectively ensure timely signal response.

Operates within -40°C to 100°C temperature range for versatile usage. Packaged in tape and reel format for efficient manufacturing processes. Features 6 pins suitable for various electronic assemblies. Applications include position reporting, speed regulation, end position switching, and motion transmitting.

Complies with MSL Level 4 quality standard for manufacturing reliability. Explore more sensors and reflective optical components to suit your industrial, laboratory, and manufacturing needs at EnvMart.
