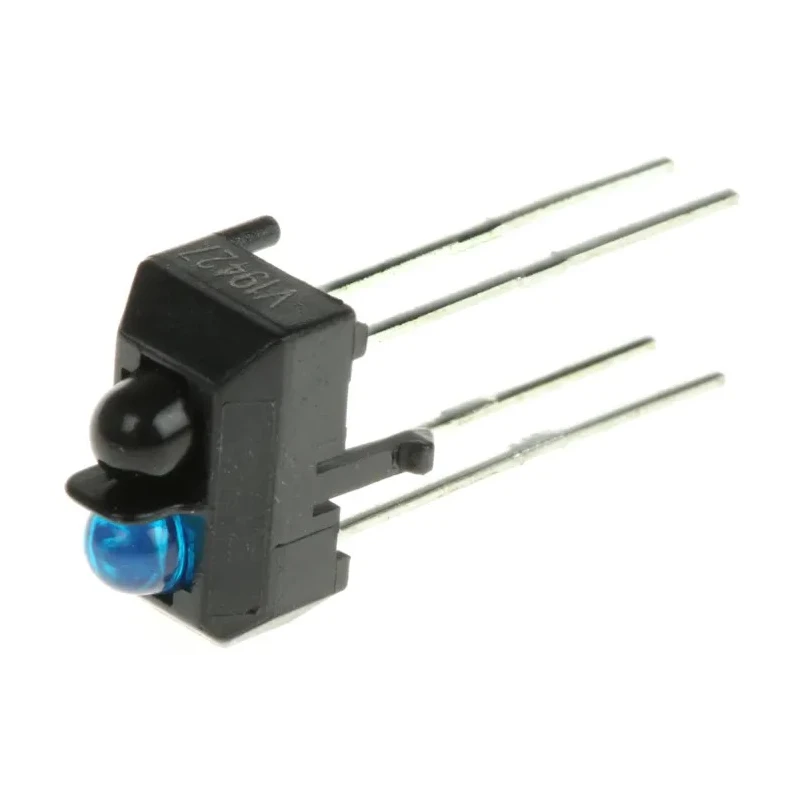

Vishay Through Hole Reflective Optical Sensor Transistor Output 2-Channel Leaded Package TCRT5000
Specifications
| Country of Origin | Philippines |
|---|---|
| Brand | Vishay |
| Height | 8.5mm |
| Length | 10.2mm |
| Model | TCRT5000 |
| Packaging | Tube |
| Width | 5.8mm |
| Mount Type | Through Hole |
| Detector Type | phototransistor |
| Series | TCRT5000 |
| Maximum Operating Temperature | 85°C |
| Package Type | Leaded |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 2 |
| Output Device | Transistor |
| Standards/Approvals | WEEE 2002/96/EC, RoHS 2002/95/EC |
| Number of Pins | 4 |
| Peak Sensor Distance | 2.5mm |
| Dimensions (L x W x H in mm) | 24.5 x 6.3 x 10.8 |
| Gap (in mm) | 3.1 |
| Emitter wavelength | 950 nm |
Key Features
- Operates with a peak sensor distance of 2.5 mm.
- Features a phototransistor detector with a daylight blocking filter.
- Includes a 950 nm infrared emitter with 4 pins and a leaded through-hole mount.
- Designed to function within a temperature range of -40°C to 85°C.
- Compact dimensions of 24.5 x 6.3 x 10.8 mm with a gap of 3.1 mm.
- Complies with WEEE 2002/96/EC and RoHS 2002/95/EC standards.
- Packaging is supplied in tubes for ease of handling.
- Typical output current under test is approximately 4 mA.
Product Description
Vishay TCRT5000 is a through-hole reflective optical sensor featuring a transistor output and dual-channel configuration packaged in a leaded format. It operates at a peak sensor distance of 2.5 mm, making it suitable for precise optical sensing tasks in industrial and laboratory environments.
The device integrates an infrared emitter with a wavelength of 950 nm and a phototransistor detector designed with a daylight blocking filter ensuring stable performance under ambient light conditions. The sensor exhibits a typical output current of 4 mA, facilitating reliable signal processing.
Its mechanical dimensions measure 24.5 mm length, 6.3 mm width, and 10.8 mm height, with a 3.1 mm gap. The sensor is mounted via a through-hole method with a total of 4 pins for robust PCB integration. This sensor is compliant with environmental directives including WEEE and RoHS, supporting green manufacturing standards.
Operating temperature ranges from -40°C to 85°C, accommodating a wide array of operating environments typically found in manufacturing automation, counting mechanisms, and encoder feedback systems. The packaging is tube-based, aiding in efficient handling and insertion during assembly.
Vishay’s TCRT5000 sensor is widely used in applications such as optical switches, photo interrupters, counters, and various encoder systems where precise optical interruption and detection are critical for operational accuracy.
Operates reliably across a broad temperature range. Leaded package supports standard PCB through-hole mounting. Compact size allows integration into constrained spaces. High sensitivity phototransistor for accurate detection.
Complies with RoHS and WEEE environmental standards. Ideal for industrial automation and control applications. Infrared emitter wavelength suitable for common optical sensing tasks. Dual channel output improves sensing versatility.
Robust construction made in the Philippines. Explore the full range of Vishay sensors and Reflective Optical Sensors on EnvMart to enhance your industrial and laboratory sensing solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The peak sensor distance for this model is 2.5 mm, allowing for precise optical sensing tasks.
It operates within a temperature range of -40°C to 85°C, suitable for various environmental conditions.
This unit features a transistor output, facilitating reliable signal processing in optical sensing applications.
The dimensions are 24.5 mm in length, 6.3 mm in width, and 10.8 mm in height, with a gap of 3.1 mm.
It has a dual-channel configuration, which enhances its sensing versatility.
The infrared emitter operates at a wavelength of 950 nm, suitable for common optical sensing tasks.
This model is designed for through-hole mounting, featuring a total of 4 pins for robust PCB integration.
It complies with WEEE 2002/96/EC and RoHS 2002/95/EC standards, supporting environmental regulations.
The typical output current under test conditions is approximately 4 mA, ensuring reliable performance.
The sensor is supplied in tube packaging, which aids in handling and insertion during assembly.
This reflective optical sensor is manufactured in the Philippines.
It is widely used in applications such as optical switches, photo interrupters, counters, and encoder systems.
