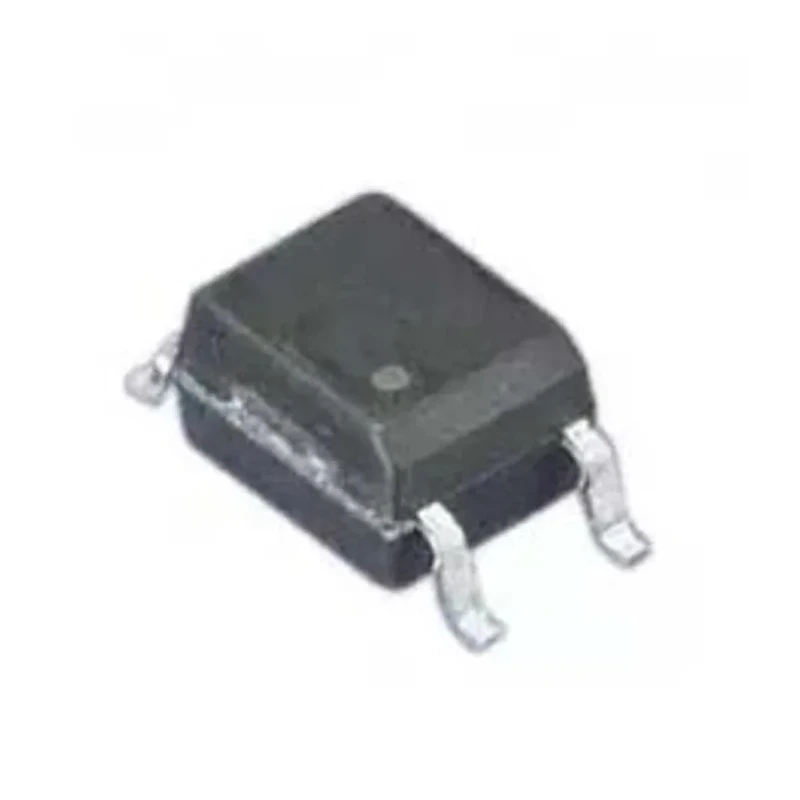

Sharp AC Input 2-Channel Optocoupler Surface Mount Mini-Flat 4-Pin PC354NJ0000F

The Sharp PC354NJ0000F is a high-performance AC input optocoupler featuring two channels in a compact 4-pin Mini-Flat surface mount package. It couples an infrared emitting diode with a phototransistor, providing electrical isolation with an input-output isolation voltage of 3.75 kV RMS. This isolation ensures the safe transfer of signals between high and low voltage circuits, making it suitable for diverse industrial and electronic applications.

Designed for surface mounting, the package employs double transfer mold technology which is optimal for flow soldering processes, enhancing production efficiency and reliability. The device supports a maximum forward voltage of 1.4 V and can handle an input current up to 50 mA, enabling flexibility in various AC input signal conditions.

With a collector-emitter voltage rating of 80 V and a wide operating temperature range from 30°C to 100°C, the PC354NJ0000F delivers robust performance in demanding environments including industrial control, power supply monitoring, and signal isolation in electronic components. The current transfer ratio varies from 20% to 400% at an input current of ±1 mA, allowing adaptive response based on load requirements.

The optocoupler exhibits fast switching with typical rise time of 4 microseconds and fall time of 3 microseconds, making it suitable for high-speed electronic signal applications. It contains logic output compatibility and is compliant with safety standards like UL1577, ensuring adherence to international quality and safety norms. Furthermore, the device is RoHS compliant, supporting environmentally friendly manufacturing guidelines.

The Sharp PC354NJ0000F finds application in industrial automation, power supplies, measurement instruments, telecommunications equipment, and other fields requiring precise and reliable AC signal isolation. Its miniature modern packaging and excellent electrical characteristics optimize board space and facilitate easy integration into complex electronics.

Features a 4-pin Mini-Flat package ideal for surface mounting applications. Provides high input-output isolation voltage of 3.75 kV RMS for safety and noise immunity. Supports a maximum forward voltage of 1.4 V and an input current up to 50 mA.

Collector-emitter voltage rating of 80 V ensuring robust performance. Current Transfer Ratio (CTR) ranges from 20% to 400% at ±1 mA input current. Operating temperature range from 30°C to 100°C suitable for industrial environments.

Typical rise and fall times of 4 µs and 3 µs respectively enable fast switching. Compliant with RoHS directive and UL1577 safety standard approvals. Double transfer mold package designed for ideal soldering and reliability.
