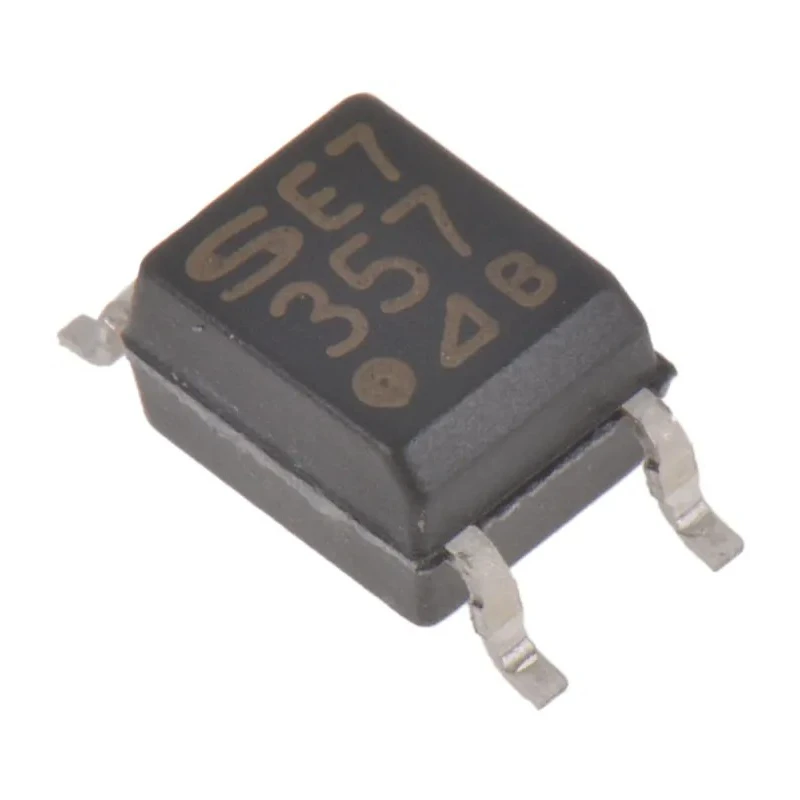

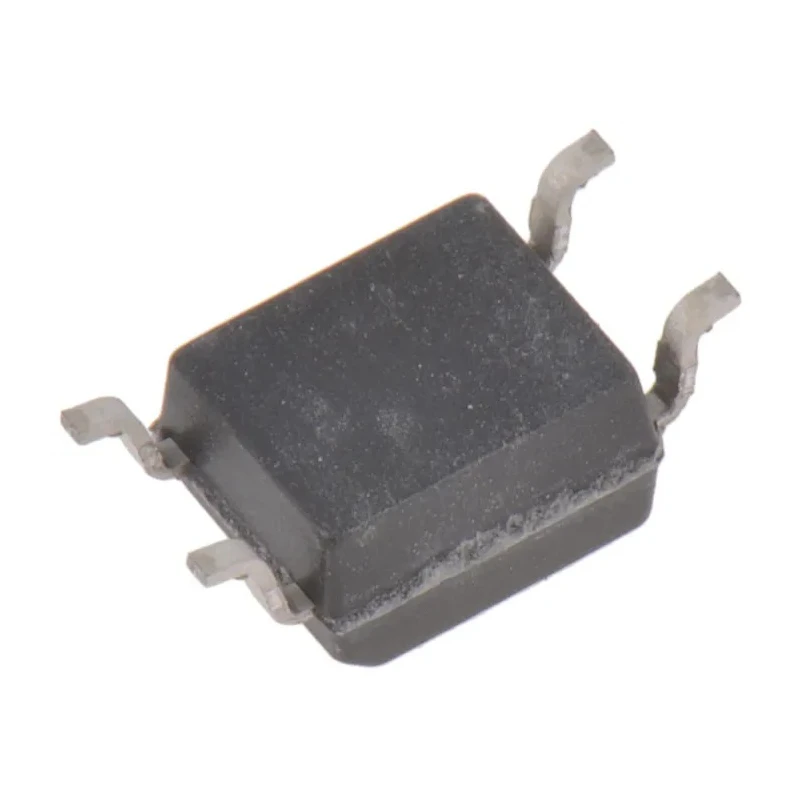

Sharp Optocoupler Surface Mount 4-Pin Mini-Flat 1 Channel 1.4V Forward Voltage PC357N2J000F

Sharp PC357N2J000F is a high-performance optocoupler designed for surface mount applications, featuring a compact 4-pin mini-flat package suitable for protecting electronic circuits by providing galvanic isolation.

This device includes a single channel transistor output with bipolar transistor configuration, supporting a maximum input current of 50 mA and a maximum forward voltage of 1.4 V. It guarantees an isolation voltage of 3.75 kV, making it ideal for sensitive electrical signal isolation in industrial, commercial, and laboratory electronics.

The optocoupler operates reliably within a temperature range from 30°C to 100°C, ensuring adaptability across standard electronic assemblies. Its typical rise and fall times of 18 microseconds enable effective switching speeds for signal transmission and reception.

With a maximum current transfer ratio of 600% and a minimum current transfer ratio of 50%, this optocoupler achieves dependable amplification and signal integrity. The product adheres to UL1577 safety requirements and RoHS environmental compliances, highlighting its suitability for sustainable and safe manufacturing processes.

Sharp PC357N2J000F finds applications across various domains including industrial automation, control systems, HVAC equipment, manufacturing instruments, and electronic power management systems. Its low profile surface mount allows efficient printed circuit board integration, enhancing production efficiency and device miniaturization.

Set contains: 1 Pc Sharp Optocoupler, Surface Mount, 4-Pin Mini-Flat. The device offers a maximum forward voltage of 1.4 volts for efficient signal transmission. Maximum input current rating of 50 mA enhances application reliability.

Isolation voltage up to 3.75 kV ensures safe signal separation. Operational temperature range between 30°C and 100°C supports diverse electronic environments. Typical rise and fall times of 18 microseconds improve switching performance.

Maximum current transfer ratio of 600% allows high signal amplification. Compliance with UL1577 and RoHS standards ensures quality and environmental safety. Explore more electronic components like Optocouplers at EnvMart for advanced industrial and laboratory applications.
