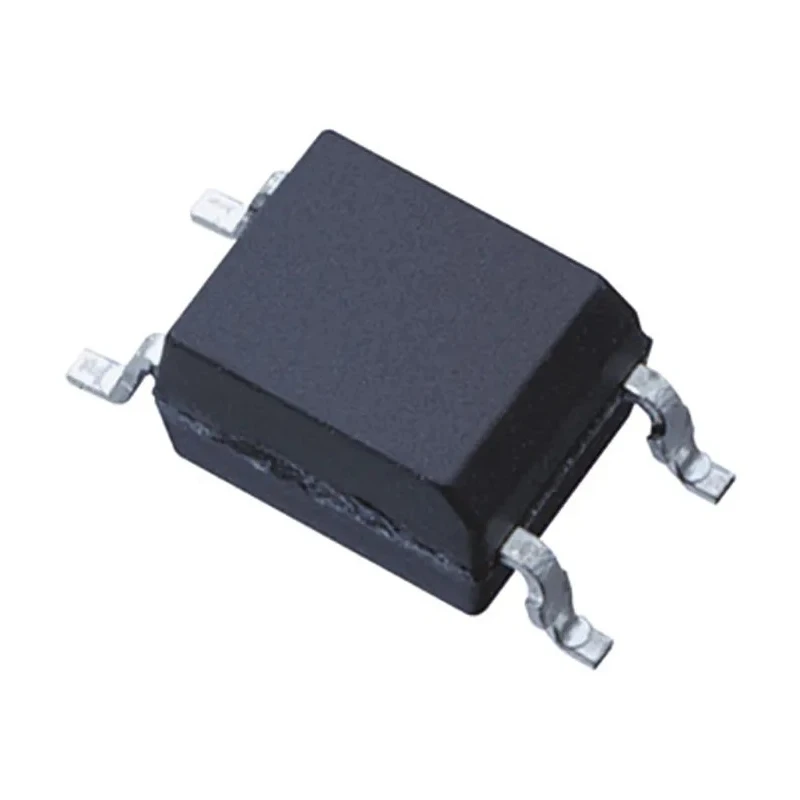

Sharp Optocoupler Surface Mount 4-Pin Mini-Flat PC357NJ0000F

Sharp PC357NJ0000F is a new, high-performance optocoupler designed for surface mounting applications, housed in a compact 4-pin mini-flat package. This device uses a bipolar transistor output providing excellent switching and signal isolation capabilities, essential in electronics circuits for controlling and isolating high voltage signals.

With a maximum forward voltage of 1.4 volts and maximum input current of 50 mA, it ensures energy-efficient performance while maintaining signal quality. The optocoupler features typical rise and fall times of 18 microseconds, enabling fast response suited for industrial and commercial electronic systems.

The high isolation voltage rating of 3.75 kV provides robust electrical isolation critical for protecting low-voltage circuits from high-voltage spikes or noise interference. The device is rated for operation from 30°C minimum up to 100°C maximum, making it reliable in demanding thermal environments.

Its current transfer ratio ranges broadly from 50% to 600%, ensuring flexibility and precision in signal transfer, suitable for a wide range of electronic control and monitoring applications. The packaging is taping suitable for automated assembly lines, facilitating efficient production processes.

This product meets UL1577 safety standards and complies with RoHS directives, ensuring it is environmentally friendly and safe for use in commercial electronics manufacturing. Features a bipolar transistor output for enhanced switching.

Compact surface mount mini-flat 4-pin package. Maximum forward voltage 1.4 V and input current up to 50 mA. High isolation voltage of 3.75 kV for signal protection. Operating temperature range from 30°C to 100°C. Current transfer ratio between 50% and 600% for flexibility.

Tap packaging ideal for automated manufacturing. UL1577 safety approved and RoHS compliant.

This Sharp optocoupler suits applications in electronics manufacturing, control systems, instrumentation, and communications equipment where efficient electrical isolation and signal transfer are required. For more industrial components in the Optocoupler category, explore the EnvMart electronics components catalog.
