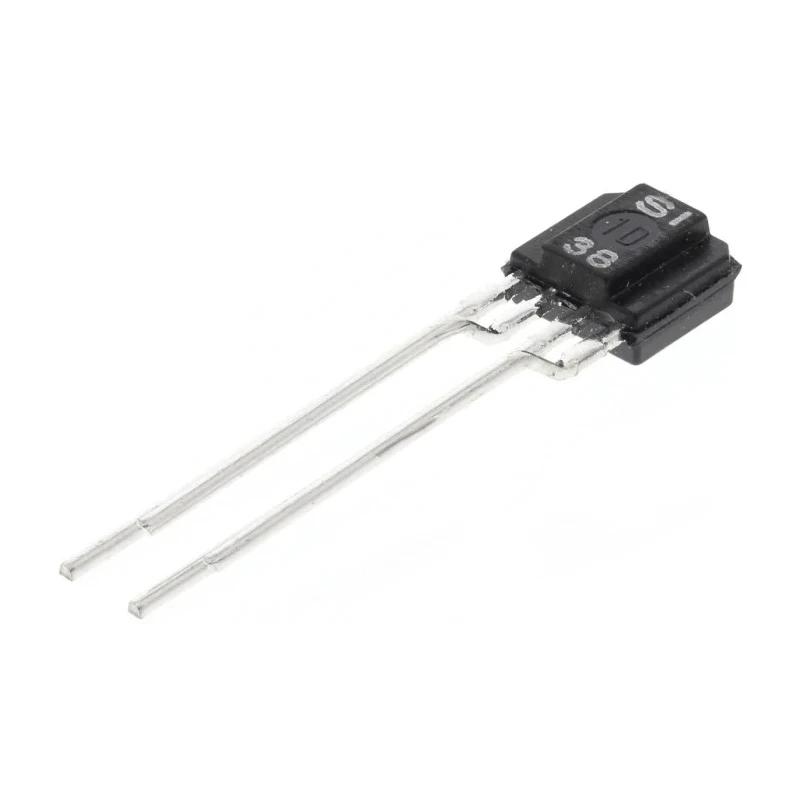

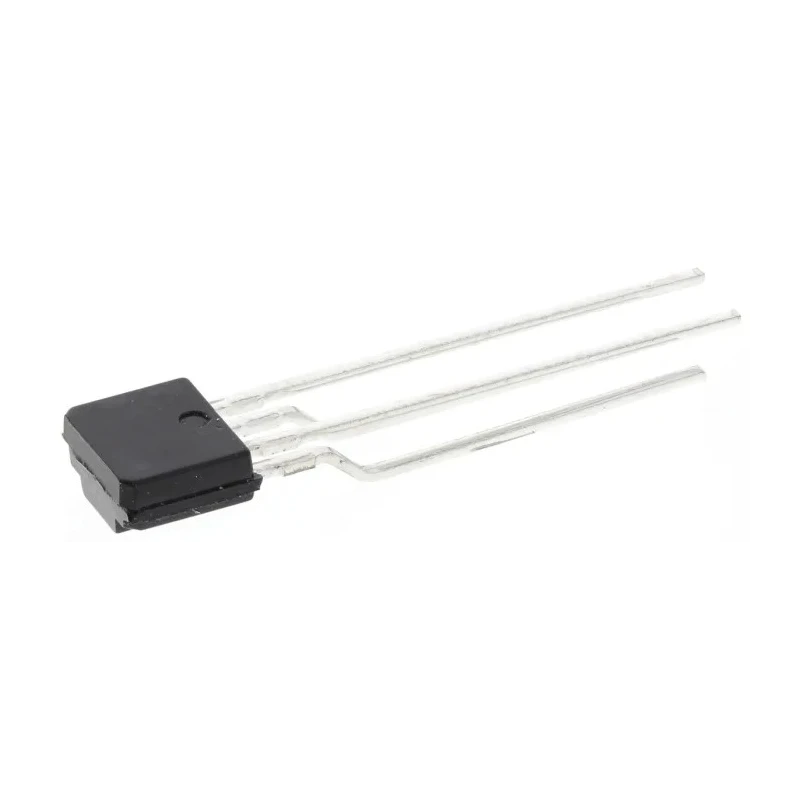

Sharp Infrared Photodiode, 65° Half Sensitivity Angle, Surface Mount TO-5 Package IS471FE

Sharp IS471FE infrared photodiode is an advanced optoelectronic component designed for reliable light modulation signal detection with immunity to ambient light interference. This photodiode features a 65° half sensitivity angle and a surface mount TO-5 package that facilitates straightforward installation in electronic circuits.

With an operating supply voltage between 4.5 to 16 volts, it suits a range of industrial and commercial optical applications including copiers, printers, telecommunications devices, and optoelectronic switches. The device's wavelength detection spans from 700nm to 1150nm, peaking at 900nm, targeting infrared light sources.

The IS471FE provides fast response times with typical rise and fall times of 400 microseconds, while the built-in pulse driver and sync detector circuits enhance signal integrity by minimizing interference from external light disruptions.

Physically compact, this photodiode measures 6mm in length, 5.4mm in height, and 2.5mm in width, featuring 4 pins for secure electronic mounting. It operates reliably within a temperature range of -25°C to 85°C, making it suitable for diverse environmental conditions.

Its low dark current of 0.5nA ensures high sensitivity and low noise, essential for precise optical sensing applications. The breakdown voltage rating of 30V protects device integrity under varying electrical conditions. Compliant with RoHS standards, this product meets environmental safety regulations.

Detects infrared light with peak sensitivity at 900nm. TO-5 surface mount package with 4 pins for easy circuit integration. Wide operating voltage range of 4.5 to 16 V. Working temperature range from -25°C to 85°C. Includes built-in pulse driver and sync detector circuits.

Fast typical rise and fall times of 400μs for efficient detection. Compact size ensures versatile application. Low dark current reduces noise in signal detection. High breakdown voltage for durable operation. RoHS compliant ensuring environmental safety.

This Sharp IS471FE photodiode is ideal for industrial, telecommunications, printing, and optoelectronic switching applications. The device supports precision infrared light detection with excellent noise rejection, making it an essential component in modern sensor and control systems.
