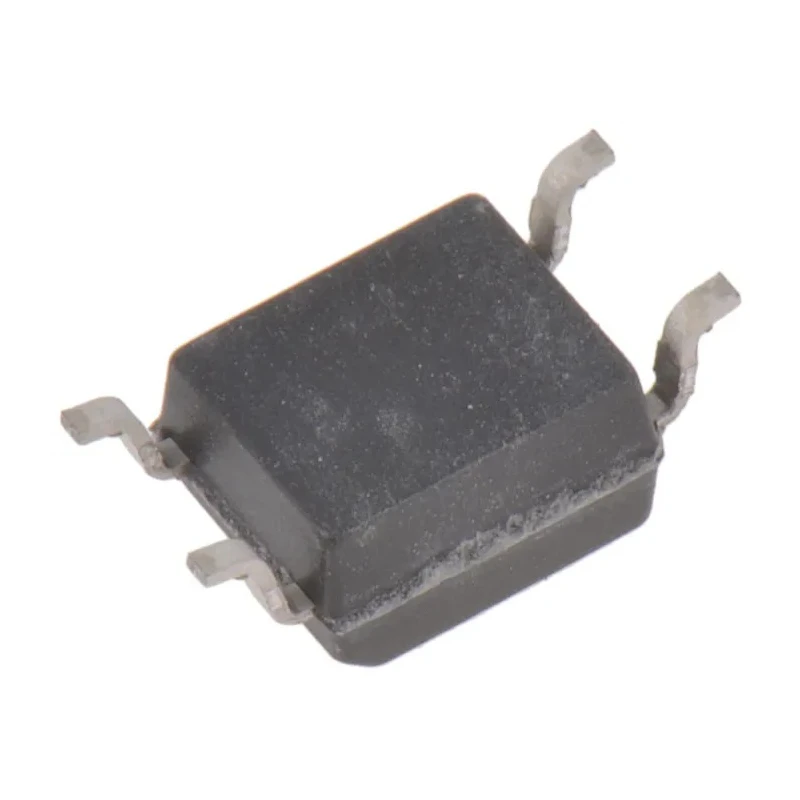

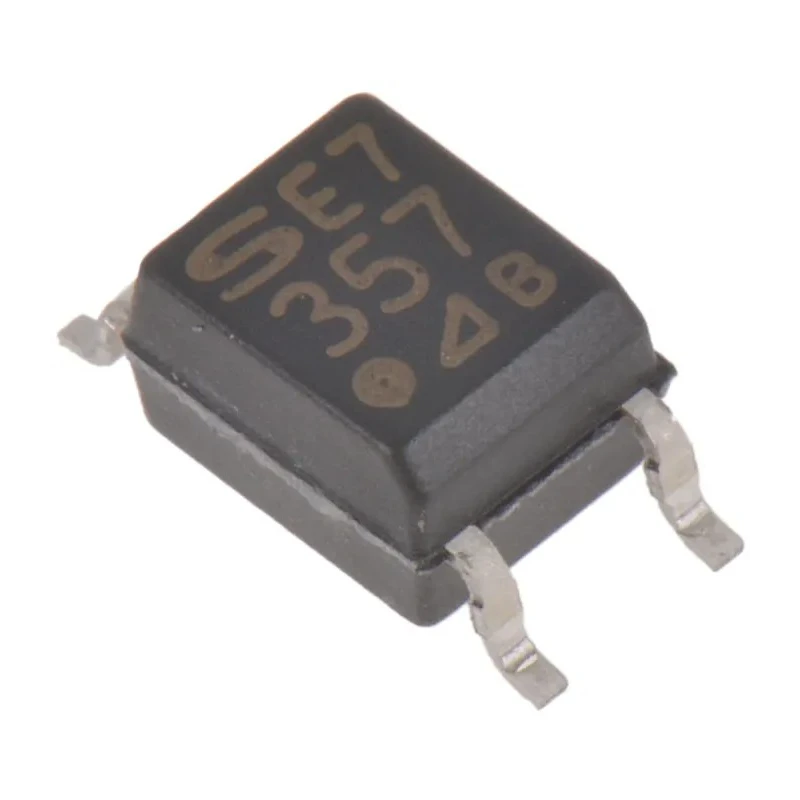

Sharp Optocoupler Surface Mount 4-Pin Mini-Flat PC357N2J000F

The Sharp PC357N2J000F optocoupler is a high-quality surface mount component designed for electronic isolation between different sections of a circuit. Packaged in a compact 4-pin mini-flat form factor, it offers ease of PCB layout in densely packed electronic assemblies.

This single channel optocoupler features a maximum forward voltage of 1.4 volts, supporting low voltage operation while maintaining isolation up to 3.75 kilovolts, making it suitable for industrial, laboratory, and commercial electronic applications requiring signal isolation and noise immunity.

The device operates reliably in ambient temperatures from 30°C up to 100°C, providing consistent performance under varied environmental conditions. It supports a maximum input current of 50 mA, with a current transfer ratio that ranges from 50% minimum to 600% maximum, enabling effective phototransistor switching response.

Typical rise and fall times of 18 microseconds contribute to rapid switching capabilities necessary for precise signal control. The Sharp PC357N2J000F complies with UL1577 and RoHS directives, ensuring safety and environmental standards are met.

Common applications include industrial control systems, measurement instruments, and signal isolation in power supplies. This optocoupler enhances production efficiency when inserted into machinery requiring reliable electrical isolation.

Sharp is a trusted brand in electronic components, recognized for durable and efficient devices suitable for modern electronic and industrial system requirements. Designed for surface mount applications with a mini-flat package.

Single channel optocoupler providing electrical isolation. Max forward voltage is 1.4 volts, ensuring efficient operation. Isolation voltage rated up to 3.75 kilovolts for high safety standards. Operates reliably between 30°C and 100°C ambient temperatures.

Maximum input current rated at 50 milliamperes. Current transfer ratio ranges from 50% minimum to 600% maximum, optimizing signal transfer. Typical rise and fall times are 18 microseconds each for responsive switching. Compliant with UL1577 and RoHS standards ensuring safety and environmental compliance.
