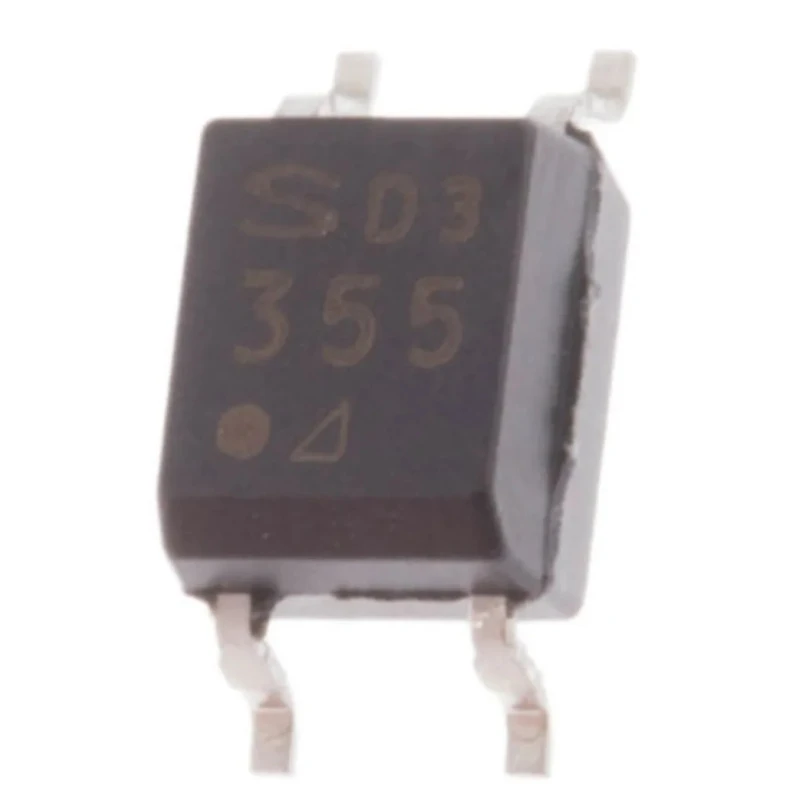

Sharp Optocoupler Surface Mount 4-Pin Mini-Flat PC355NJ0000F
Specifications
| Country of Origin | India |
|---|---|
| Brand | Sharp |
| Model | PC355NJ0000F |
| Mount Type | Surface |
| Series | PC355NJ0000F |
| Maximum Operating Temperature | 100°C |
| Package Type | Mini-Flat |
| Minimum Operating Temperature | 30°C |
| Maximum input current | 50mA |
| Standards/Approvals | RoHS Directive, UL1577 |
| Maximum Forward Voltage | 1.4V |
| Number of Pins | 4 |
| Typical Rise Time | 60μs |
| Maximum Current Transfer Ratio | 600% |
| Typical Fall Time | 53μs |
Key Features
- The device has a maximum forward voltage of 1.4 volts.
- It operates with a maximum input current of 50 milliamperes.
- The typical rise time is 60 microseconds, and the typical fall time is 53 microseconds.
- It features a maximum current transfer ratio of 600% with a minimum operating temperature of 30 degrees Celsius.
- The maximum operating temperature reaches up to 100 degrees Celsius.
- The optocoupler package employs a mini-flat surface mount design suitable for compact applications.
- The device complies with RoHS Directive and UL1577 standards, ensuring quality and safety.
- It is a phototransistor-type optocoupler with a Darlington transistor output configuration.
Product Description
The Sharp PC355NJ0000F Optocoupler is a high-performance surface mount component designed to provide optical isolation in electronic circuits. This 4-pin mini-flat package optocoupler features a Darlington transistor output, enhancing switching capabilities and signal integrity.
With a maximum forward voltage of 1.4 volts and a maximum input current of 50 milliamperes, this device offers efficient operation suitable for a variety of electronic applications. The typical rise and fall times are 60 microseconds and 53 microseconds respectively, ensuring timely response in control and signal processing circuits.
This optocoupler maintains a maximum current transfer ratio of 600%, balancing efficiency and reliability. It operates safely within a temperature range from 30°C to 100°C, making it adaptable for diverse industrial, laboratory, and manufacturing environments.
The compact mini-flat surface mount package facilitates easy integration into densely populated circuit boards, supporting modern electronics design requirements. The device complies with the RoHS Directive and UL1577 standards, confirming adherence to environmental and safety regulations.
Sharp’s PC355NJ0000F is ideal for applications in industrial automation, electronic equipment, power monitoring systems, and other fields requiring dependable signal isolation. Its robust electrical characteristics and compact form factor support efficient and reliable system operations.
The device has a maximum forward voltage of 1.4 volts. It operates with a maximum input current of 50 milliamperes. The typical rise time is 60 microseconds, and the typical fall time is 53 microseconds. It features a maximum current transfer ratio of 600% with a minimum operating temperature of 30 degrees Celsius.
The maximum operating temperature reaches up to 100 degrees Celsius. The optocoupler package employs a mini-flat surface mount design suitable for compact applications. The device complies with RoHS Directive and UL1577 standards, ensuring quality and safety.
It is a phototransistor-type optocoupler with a Darlington transistor output configuration. Explore more Sharp Optocoupler products and high-quality electronic components with EnvMart for professional and industrial usage.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum forward voltage of this optocoupler is 1.4 volts.
It operates with a maximum input current of 50 milliamperes.
The typical rise time is 60 microseconds, and the typical fall time is 53 microseconds.
It features a maximum current transfer ratio of 600%.
The device operates safely within a temperature range from 30°C to 100°C.
The optocoupler employs a mini-flat surface mount package design suitable for compact applications.
It complies with the RoHS Directive and UL1577 standards, ensuring adherence to environmental and safety regulations.
This optocoupler has 4 pins.
It features a Darlington transistor output configuration.
This model is suitable for applications in industrial automation, electronic equipment, and power monitoring systems.
The country of origin for this optocoupler is India.
The mini-flat surface mount design facilitates easy integration into densely populated circuit boards, supporting modern electronics design requirements.
