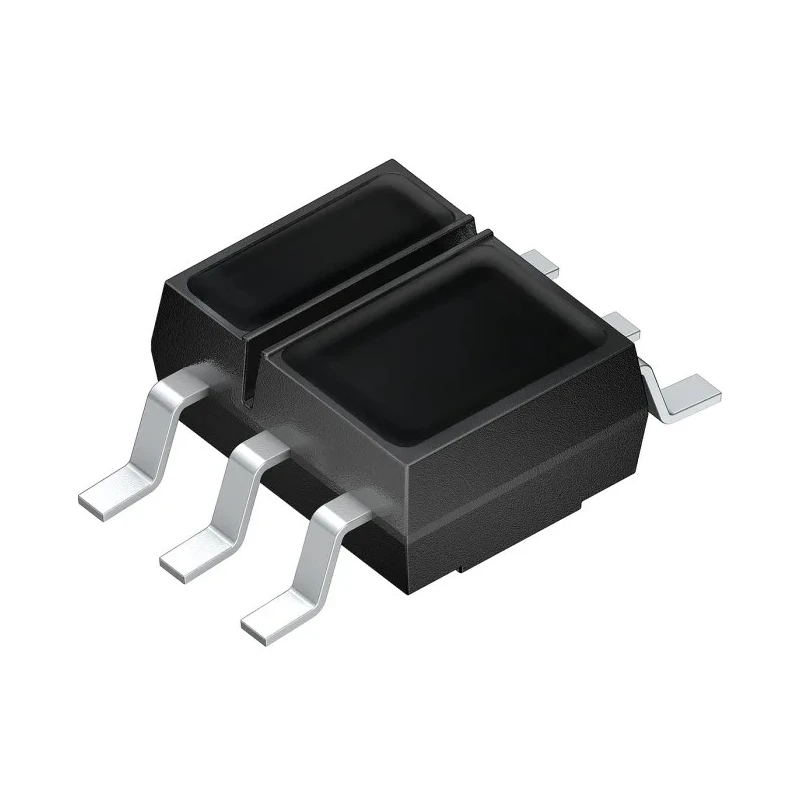

ams OSRAM Surface Reflective Optical Sensor with Phototransistor Output, Peak Sensor Distance 5mm, Surface Mount SFH 9206-6/7

ams OSRAM SFH 9206-6/7 Surface Reflective Optical Sensor is a high-performance reflective sensor designed for precise position and motion sensing applications in industrial and electronic systems. It features a phototransistor output integrated with a 950 nm infrared LED within a compact surface mount device (SMD) package. This reflective sensor is optimized with a daylight filter to enhance detection accuracy under varying ambient light conditions.

The SFH 9206-6/7 sensor provides a peak sensor distance of 5mm, making it ideal for close-range reflective sensing tasks. Its swift response characteristics with a typical rise time of 30 microseconds and fall time of 40 microseconds enable rapid signal processing, suitable for speed regulation and end-position detection.

The compact package measures 4.2mm in length, 3.4mm in width, and 2.1mm in height, fitting small footprints in modern electronic designs. Rated for reliable operation across a wide temperature range from -40°C to 100°C, it is adaptable to various operating environments. It comes supplied on tape and reel packaging, supporting automated PCB assembly processes for enhanced manufacturing efficiency.

This optical sensor is part of the SFH 9206 series and complies with MSL Level 4 standards for moisture sensitivity. It is manufactured in Malaysia, ensuring high quality consistent with ams OSRAM's semiconductor components. Typical applications include position reporting, motion transmitters, speed regulation sensors, and end position switches in industrial automation, electronics, and instrumentation.

Includes integrated infrared LED and silicon NPN phototransistor in SMD format. Typical rise time: 30 microseconds and fall time: 40 microseconds. Compact dimensions of 4.2mm x 3.4mm x 2.1mm ensure easy PCB mounting. Operating temperature range from -40°C to 100°C for durability under harsh conditions.

Packaged on tape and reel suitable for automated placement machinery. Daylight filter to improve signal accuracy under ambient light interference. Makes position reporting and motion detection reliable in industrial settings.

MSL Level 4 moisture sensitivity standard compliant product. Manufactured in Malaysia under strict quality controls.
