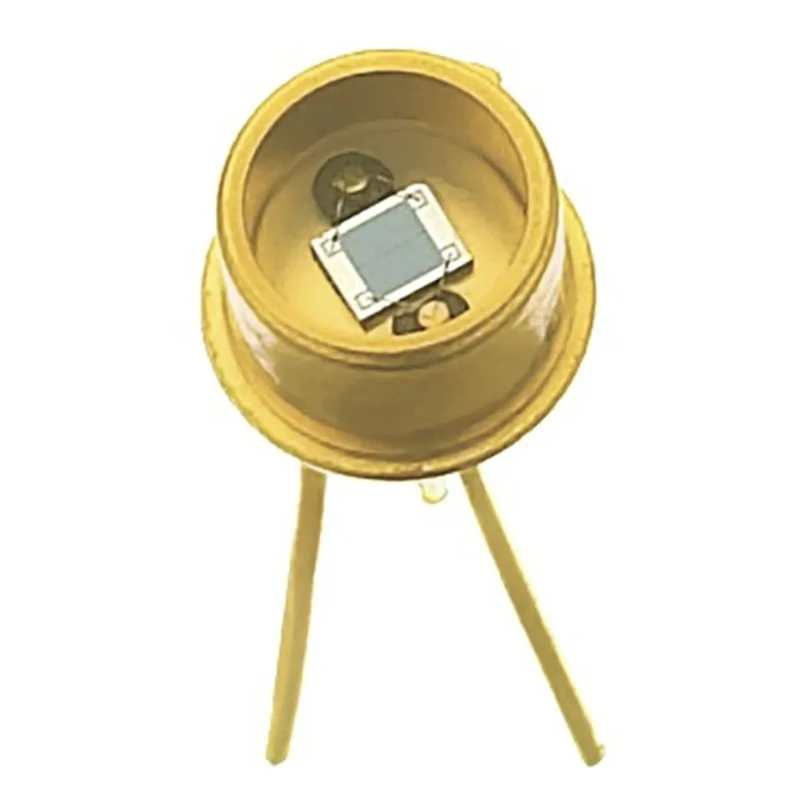

OSI Optoelectronics Infrared Photodiode PIN-SPOT2D 65 ° Angle Through Hole TO-5 Package PIN-SPOT2D
Specifications
| Country of Origin | United States |
|---|---|
| Diameter | 9.14mm |
| Brand | OSI Optoelectronics |
| Height | 0.11in |
| Length | 8.255mm |
| Model | PIN-SPOT2D |
| Packaging | Tape & Reel |
| Width | 5mm |
| Mount Type | Through Hole |
| Series | Spot |
| Maximum Operating Temperature | 85°C |
| Package Type | TO-5 |
| Minimum Operating Temperature | -25°C |
| Polarity | Reverse |
| Dark Current | 0.2nA |
| Standards/Approvals | RoHS |
| Number of Pins | 3 |
| Typical Rise Time | 22ns |
| Typical Fall Time | 0.6ns |
| Wavelength of Peak Sensitivity | 970nm |
| Spectrums Detected | Infrared |
| Breakdown Voltage | 30V |
| Minimum Wavelength Detected | 350nm |
| Maximum Wavelength Detected | 1100nm |
| Angle of Half Sensitivity | 65 ° |
| OSI Optoelectronics PIN-SPOT2D Infrared Photodiode, 65 °, Through Hole TO-5Brand | OSI Optoelectronics |
Key Features
- Detects infrared spectrum with peak sensitivity at 970nm.
- Features a through-hole TO-5 package with three pins for easy mounting.
- Operates in temperatures ranging from -25°C to 85°C ensuring stability.
- Exhibits ultra-low dark current of 0.2nA for high accuracy.
- Typical rise and fall times of 22ns and 0.6ns respectively for high-speed response.
- Compliance with RoHS standards assures environmental and safety adherence.
- Reverse polarity configuration enables reliable signal detection.
- Suitable for machine tool alignment, position measuring, beam centering, surface profiling, targeting, and guidance systems.
Product Description
OSI Optoelectronics PIN-SPOT2D is a high-accuracy infrared photodiode designed for industrial and electronic component applications. Featuring a 65 ° angle of half sensitivity, this through-hole photodiode is housed in a TO-5 package with a robust three-pin configuration that facilitates secure mounting on circuit boards.
It detects infrared wavelengths ranging from 350nm to 1100nm with a peak sensitivity at 970nm, making it ideal for precise optical sensing tasks. The device exhibits a low dark current of 0.2nA which allows for excellent noise performance and response accuracy. Its quick typical rise time of 22ns and fall time of 0.6ns ensures fast response suitable for high-speed optical systems.
Designed to operate reliably in temperatures between -25°C and 85°C, the PIN-SPOT2D maintains stable sensitivity and performance across typical industrial environments. Its reverse polarity and spot series design make it particularly suited for applications requiring targeted beam sensing and alignment.
Key industrial uses include machine tool alignment, precise position measuring, beam centering, surface profiling, targeting instrumentation, and guidance systems in automation and robotics.
Detects infrared wavelengths with high precision from 350nm to 1100nm peak at 970nm. Through hole TO-5 package with dimensions optimized for compact electronic assemblies. Low dark current and rapid response time for clear and accurate signal detection.
Wide operating temperature range suitable for harsh industrial conditions. Compliant with RoHS to ensure environmentally responsible manufacturing. Applied in diverse fields such as automated manufacturing, instrumentation, and guidance systems.
This OSI Optoelectronics photodiode combines precision, reliability, and ruggedness, making it an essential component in advanced infrared sensing and detection applications. Explore more in the Photodiode category at EnvMart for compatible and complementary electronic components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The peak sensitivity wavelength of the PIN-SPOT2D photodiode is 970nm.
This model operates in temperatures ranging from -25°C to 85°C.
The typical rise time is 22ns and the fall time is 0.6ns, allowing for high-speed response.
The PIN-SPOT2D exhibits a low dark current of 0.2nA, which contributes to its high accuracy.
It is housed in a TO-5 package, designed for through-hole mounting with three pins.
This photodiode can detect infrared wavelengths ranging from 350nm to 1100nm.
The angle of half sensitivity for the PIN-SPOT2D is 65 °.
Yes, it is compliant with RoHS standards, ensuring environmental and safety adherence.
The breakdown voltage for this model is 30V.
This photodiode uses a through-hole mounting type, suitable for secure placement on circuit boards.
It is suitable for applications such as machine tool alignment, position measuring, and guidance systems.
The dimensions are 9.14mm in diameter, 8.255mm in length, and 5mm in width.
