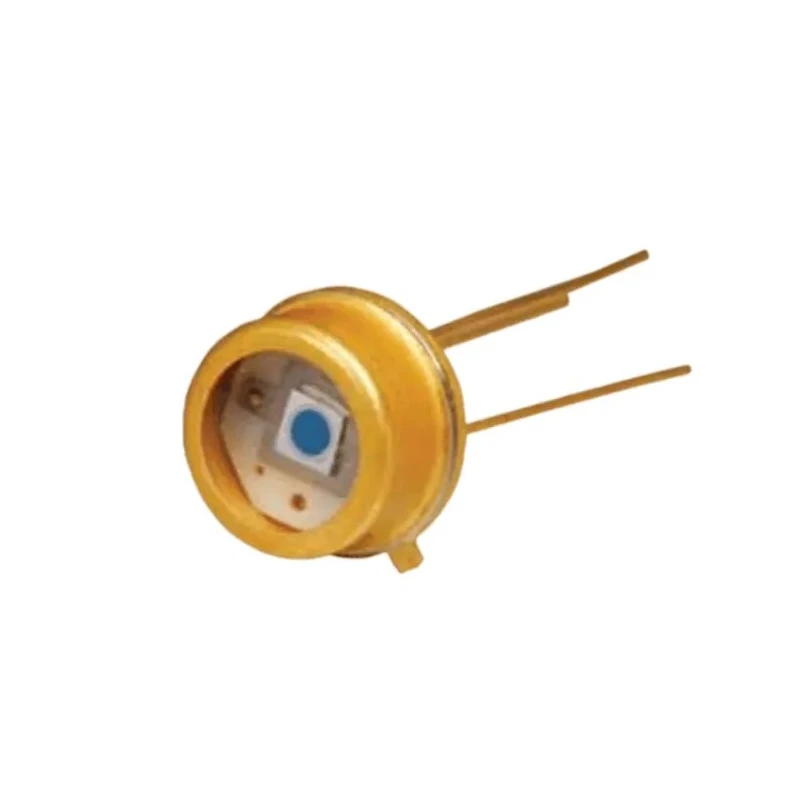

OSI Optoelectronics Infrared Photodiode Through Hole 65 ° Angle Sensitivity 30V Breakdown Voltage FCI-InGaAs-1500
Specifications
| Country of Origin | United States |
|---|---|
| Diameter | 5.4mm |
| Brand | OSI Optoelectronics |
| Height | 3.81mm |
| Length | 8mm |
| Model | FCI-InGaAs-1500 |
| Packaging | Tape & Reel |
| Width | 5mm |
| Mount Type | Through Hole |
| Series | FCI-InGaAS |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -25°C |
| Polarity | Reverse |
| Dark Current | 0.2nA |
| Standards/Approvals | RoHS |
| Number of Pins | 2 |
| Typical Fall Time | 0.6ns |
| Wavelength of Peak Sensitivity | 1550nm |
| Spectrums Detected | Infrared |
| Breakdown Voltage | 30V |
| Minimum Wavelength Detected | 1100nm |
| Maximum Wavelength Detected | 1620nm |
| Angle of Half Sensitivity | 65 ° |
| OSI Optoelectronics FCI-InGaAs-1500 Infrared Photodiode, 65 °, Through HoleBrand | OSI Optoelectronics |
Key Features
- Detects infrared spectrums with peak sensitivity at 1550nm.
- Operates effectively within 1100nm to 1620nm wavelength range.
- Offers fast response with typical rise and fall times of 0.6ns.
- Designed for operating temperatures from -25°C to 85°C.
- Packaged in tape & reel with 2-pin configuration for easy integration.
- Features a large active area with diameter of 5.4mm for high responsivity.
- Breakdown voltage rated at 30V with low dark current of 0.2nA.
- Complies with RoHS standards ensuring environmentally friendly design.
Product Description
OSI Optoelectronics FCI-InGaAs-1500 is a high-performance infrared photodiode featuring a through hole mount and 65 ° angle of half sensitivity. This device exhibits excellent responsivity within the infrared spectrum, specifically from 1100nm to 1620nm, with peak sensitivity at 1550nm.
The photodiode offers rapid response times with typical rise and fall times of 0.6 nanoseconds, allowing for precise detection of weak infrared signals. Packaged in tape & reel with a 2-pin configuration, it facilitates easy assembly into electronic instrumentation.
Engineered to operate over a wide temperature range of -25°C to 85°C, it ensures reliable performance in diverse environments. The device features a large active area diameter of 5.4mm, enhancing signal detection capabilities.
With a breakdown voltage of 30V and very low dark current of 0.2nA, the photodiode minimizes noise, making it suitable for sensitive applications. It is RoHS compliant, emphasizing its adherence to environmental and safety standards.
This photodiode series is ideal for industrial and laboratory applications such as optical instrumentation, power measurement, and infrared sensing. Its robust design supports use cases in medical devices and precision monitoring.
Detects infrared spectrums with peak sensitivity at 1550nm. Operates effectively within 1100nm to 1620nm wavelength range. Offers fast response with typical rise and fall times of 0.6ns. Designed for operating temperatures from -25°C to 85°C.
Packaged in tape & reel with 2-pin configuration for easy integration. Features a large active area with diameter of 5.4mm for high responsivity. Breakdown voltage rated at 30V with low dark current of 0.2nA. Complies with RoHS standards ensuring environmentally friendly design.
Ideal for optical instrumentation, power measurement, and IR sensing applications. Explore more Photodiodes and optoelectronic components in the Electronics Components category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The peak sensitivity wavelength of this photodiode is 1550nm.
This model operates effectively within a temperature range of -25°C to 85°C.
The breakdown voltage is rated at 30V.
It offers typical rise and fall times of 0.6 nanoseconds.
The dimensions are 8mm in length, 5mm in width, and 3.81mm in height, with a diameter of 5.4mm for the active area.
This photodiode features a through-hole mount type.
The dark current is specified at 0.2nA, which helps minimize noise in sensitive applications.
It is packaged in tape & reel for easy integration into electronic systems.
This device complies with RoHS standards, ensuring it meets environmental safety requirements.
The angle of half sensitivity is 65 °.
It operates effectively within the wavelength range of 1100nm to 1620nm.
This photodiode is suitable for optical instrumentation, power measurement, and infrared sensing applications.
