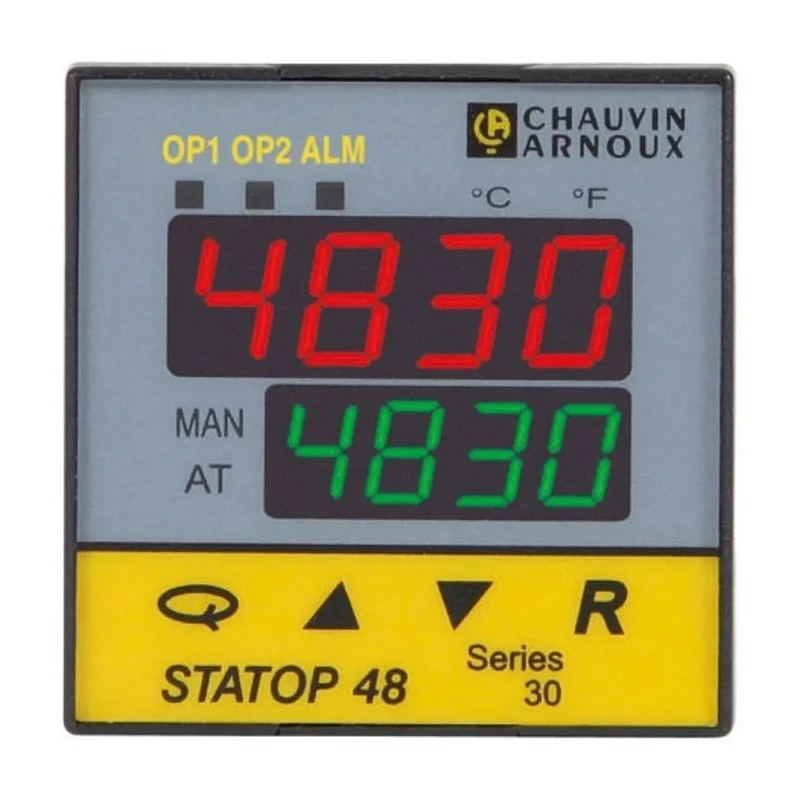

Pyro Controle STATOP 48 Panel PID Temperature Controller, 2 Output Current 260V PID LR04830-002
Specifications
| Country of Origin | France |
|---|---|
| Display Type | LCD |
| Display | 2 x 10,000 points |
| Brand | Pyro Controle |
| Operating Temperature | -10 ￫ +50 °C |
| Length | 48mm |
| Model | LR04830-002 |
| IP Rating | IP50 |
| Width | 48mm |
| Mount Type | Panel |
| Timer | 0 ￫ 9999 min |
| Output type | Current |
| Series | STATOP 48 |
| Input Type | Thermocouple |
| Maximum Operating Temperature | 50°C |
| Control Type | PID |
| Minimum Operating Temperature | -10°C |
| Maximum Current | 2A |
| Number of outputs | 2 |
| Terminal type | Screw |
| Proportional Band | 0 ￫ 20 °C |
| Maximum Supply Voltage | 260V |
| Panel Depth | 105mm |
| Regulators fitted with 2 displays | red for measurement and green for setpoint |
| Programmable temperature input | thermocouple and Pt 100 Ώ resistance |
| Temperature ramp | 0 ￫ 480 °C/min |
| Regulation output | 2 A inverter relay, analogue 4 ￫ 20 mA - 0 ￫ 10 V or logic 0 ￫ 5 V |
| Digital regulators fitted with automatic action adjustment system | self-adjusting PID regulation mode |
| Regulation algorithm | PID + fuzzy logic |
Key Features
- Professional PID temperature controller designed for panel mounting.
- Supports 2 output currents with a maximum current of 2 A.
- Operating temperature range from -10°C to 50°C.
- Screw terminal type ensures secure electrical connections.
- Programmable temperature inputs supporting thermocouple and Pt 100 Ω resistance sensors.
- Regulation algorithm combines PID with fuzzy logic for automatic adjustment.
- Temperature ramp rate up to 480 °C per minute for rapid response.
- Timer adjustable from 0 to 9999 minutes for precise process control.
Product Description
Pyro Controle LR04830-002 STATOP 48 Panel PID Temperature Controller is an advanced temperature regulation device designed for industrial and process control applications. It operates with a supply voltage of up to 260V and incorporates PID control combined with fuzzy logic for enhanced stability and automatic process recovery.
The device features two output currents of maximum 2 A each, controlled through inverter relays and analog signal outputs (4 to 20 mA, 0 to 10 V, or logic 0 to 5 V), making it suitable for diverse industrial automation tasks. Its input supports both thermocouples and Pt 100 Ω resistance sensors, allowing high versatility for temperature sensing.
The controller includes dual LCD displays for clear measurement and setpoint visualization. It supports temperature ramps up to 480 °C per minute and includes a programmable timer ranging from zero to 9999 minutes, enabling precise thermal process management.
Designed for panel mounting, the STATOP 48 comes with a compact footprint (48 mm by 48 mm faceplate, 105 mm panel depth) and robust IP50 rating for protection against dust ingress. The screw terminal connections ensure reliable electrical contacts in demanding industrial environments.
This product is made in France and belongs to Pyro Controle's professional series, catering to industrial automation, HVAC, manufacturing, laboratory, and process control applications where consistent temperature control is critical.
Professional PID temperature controller designed for panel mounting. Dual output currents each up to 2 A inverter relay and analog signal. Operating temperature between -10°C and 50°C for various environments. Supports thermocouple and Pt 100 Ω sensor inputs for versatile monitoring.
Advanced PID with fuzzy logic for automatic action adjustment and recovery. Dual LCD displays provide simultaneous measurement and setpoint visibility. Temperature ramp rate of up to 480 °C per minute. Adjustable timer from 0 to 9999 minutes for controlled processes.
Compact panel dimensions with IP50 protection rating. Explore our complete range of Temperature Controllers at EnvMart for robust solutions in industrial automation and process control.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The operating temperature range is from -10°C to 50°C.
It supports inputs from thermocouples and Pt 100 Ω resistance sensors.
The maximum current output is 2 A for each of its two outputs.
The temperature ramp rate can reach up to 480 °C per minute.
It features dual LCD displays, with one for measurement and one for setpoint visualization.
The panel dimensions are 48 mm by 48 mm, with a panel depth of 105 mm.
The IP rating is IP50, providing protection against dust ingress.
It utilizes a regulation algorithm that combines PID control with fuzzy logic for enhanced stability.
The outputs can be current, with options for inverter relay and analog signals (4 to 20 mA, 0 to 10 V, or logic 0 to 5 V).
The timer can be adjusted from 0 to 9999 minutes for precise process control.
This product is made in France.
It features screw terminal connections for secure electrical contacts.
