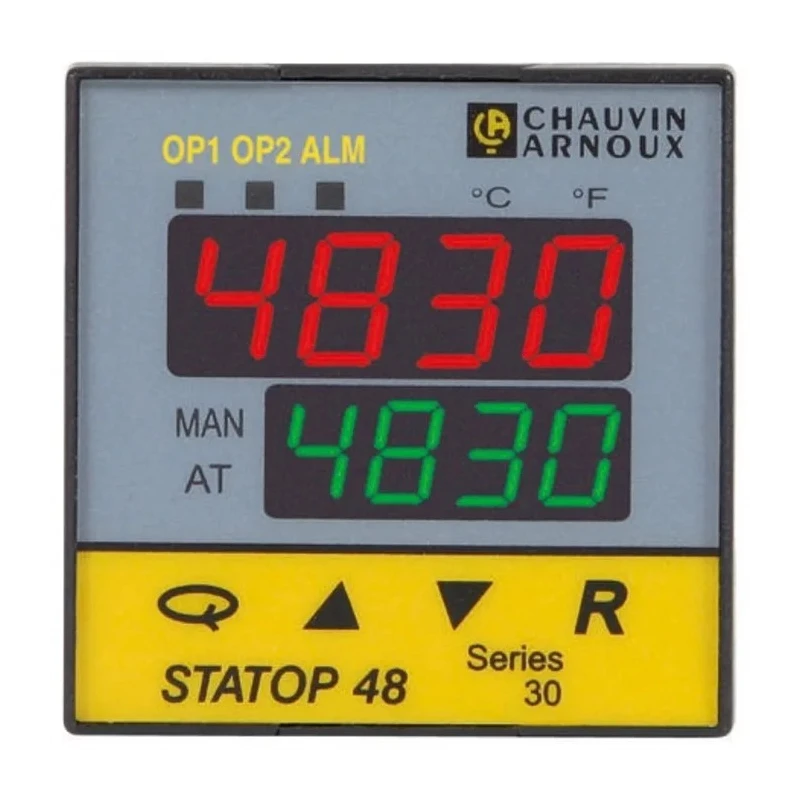

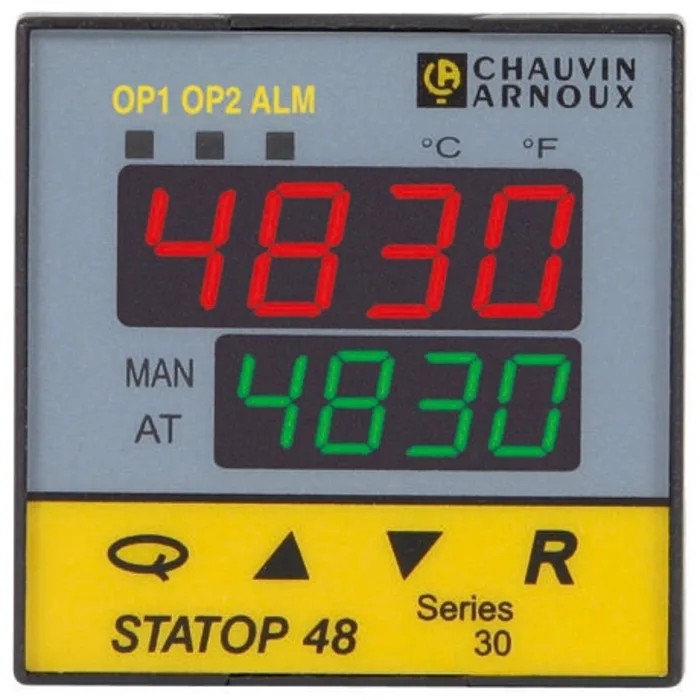

Pyro Controle Panel PID Temperature Controller 2 Output Logic, 260V, LCD Display LR04830-004
Specifications
| Country of Origin | France |
|---|---|
| Display Type | LCD |
| Display | 2 x 10,000 points |
| Brand | Pyro Controle |
| Operating Temperature | -10 ￫ +50 °C |
| Length | 48mm |
| Model | LR04830-004 |
| IP Rating | IP50 |
| Width | 48mm |
| Mount Type | Panel |
| Timer | 0 ￫ 9999 min |
| Output type | Logic |
| Series | STATOP 48 |
| Input Type | Thermocouple |
| Maximum Operating Temperature | 50°C |
| Control Type | PID |
| Minimum Operating Temperature | -10°C |
| Maximum Current | 2A |
| Number of outputs | 2 |
| Terminal type | Screw |
| Proportional Band | 0 ￫ 20 °C |
| Maximum Supply Voltage | 260V |
| Panel Depth | 105mm |
| Regulators fitted with 2 displays | red for measurement and green for setpoint |
| Programmable temperature input | thermocouple and Pt 100 Ώ resistance |
| Temperature ramp | 0 ￫ 480 °C/min |
| Regulation output | 2 A inverter relay, analogue 4 ￫ 20 mA - 0 ￫ 10 V or logic 0 ￫ 5 V |
| Digital regulators fitted with automatic action adjustment system | self-adjusting PID regulation mode |
| Regulation algorithm | PID + fuzzy logic |
Key Features
- Equipped with two outputs supporting logic and analog signals.
- Operates at a maximum supply voltage of 260V with screw terminal connections.
- Features LCD display with dual color for measurement and setpoint indication.
- Capable of handling a maximum current of 2A and programmable temperature inputs.
- Designed for panel mounting with IP50 rating for protection against dust.
- Operating temperature range from -10°C to 50°C.
- Includes built-in timer of up to 9999 minutes and temperature ramp control up to 480°C per minute.
- Incorporates self-adjusting PID and fuzzy logic algorithms for superior regulation.
Product Description
Pyro Controle LR04830-004 Panel PID Temperature Controller is a professional-grade digital regulator designed for accurate process temperature control across industrial sectors. Featuring two output logics and an analog regulation option, this controller ensures precise thermal management with a user-friendly LCD display that provides clear dual-color readouts for both measurement and setpoint.
This PID controller integrates fuzzy logic for automatic process recovery, enhancing reliability and efficiency in demanding applications such as manufacturing, HVAC systems, and laboratory environments. It accepts programmable temperature inputs from thermocouples and Pt 100 resistance sensors, with operational temperature support ranging from -10°C to +50°C.
The controller delivers a maximum output current of 2A through inverter relays, alongside analog outputs ranging from 4-20 mA, 0-10 V, or logic 0-5 V signals, enabling versatile control over connected devices. The device’s temperature ramping capability of up to 480 °C per minute accommodates fast and accurate thermal profiling.
Robust construction with panel mounting mechanism and IP50 protection ensures durability and resistance to dust intrusion in industrial settings. The timer function allows precise control over process duration, up to 9999 minutes, supporting automated workflows.
Its compact form factor (48mm x 48mm faceplate, 105mm panel depth) fits standard control panels, facilitating seamless integration. This model is manufactured in France, assuring quality and adherence to international standards.
Two output logics for complex control scenarios. PID and fuzzy logic control algorithms optimize performance. Dual display colors improve readability and user interaction. Supports thermocouple and Pt 100 inputs for flexible sensing.
Robust panel mounting with screw terminals. Wide operating voltage from 90V to 260V AC. Timer and temperature ramp functions enhance process control. Suitable for industrial, laboratory, HVAC, and manufacturing applications.
