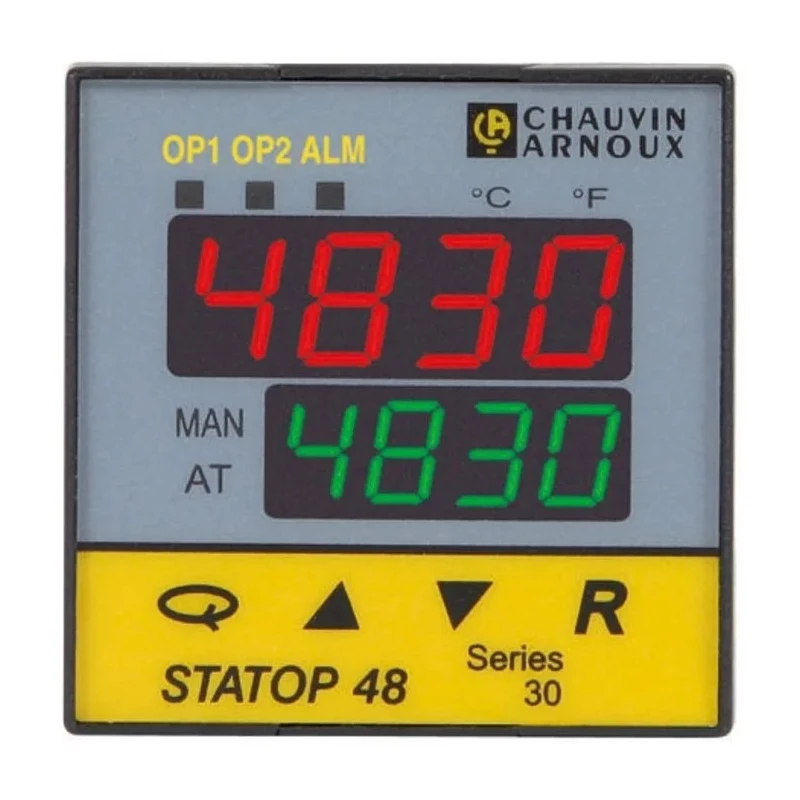

Pyro Controle STATOP 48 Panel PID Temperature Controller, PID/Fuzzy Logic, 1 Analogue Relay Output, 260V AC, LR04830-000

Pyro Controle LR04830-000 STATOP 48 Panel PID Temperature Controller is engineered for precise process regulation in industrial and laboratory environments. The controller employs advanced PID and fuzzy logic algorithms to ensure stable temperature control with automatic action adjustment for self-tuning functionality. Its wide supply voltage range from 90V to 260V AC makes it compatible with global industrial power standards, enabling straightforward installation in diverse process automation setups.

This model provides a single combined analogue relay output, allowing integration with various control systems and actuators. The controller supports both thermocouple and Pt 100 ohm resistance sensor inputs, making it adaptable for a wide variety of temperature monitoring and control applications. Equipped with a high-visibility LCD display, the unit features dual indication: red for live measurement and green for setpoint, providing clear, instant feedback to the operator. Dual displays and programmable setpoints minimize guesswork and facilitate both real-time monitoring and precise process adjustment.

The controller includes digital ramp, timer, and hysteresis settings that can be adjusted between 0 seconds and 11 seconds, or programmed for temperature ramps from 0°C/minute to 480°C/minute to suit demanding thermal process profiles. Its automatic process recovery feature leverages fuzzy logic to respond to abnormal states quickly, ensuring improved operational reliability and reduced downtime. Operators benefit from intuitive controls and a user-friendly interface, even if they lack specialized automation skills.

For industrial integration, the STATOP 48 series offers RS485 communication (subject to model variant) supporting remote monitoring and system-wide control. With panel mount design, compact dimensions (48mm x 48mm front face, 105mm depth), and IP50 ingress protection, the unit is suitable for harsh and dusty environments typical in manufacturing, laboratory, HVAC, and process industries. The screw terminal interface simplifies wiring during installation.

Typical use cases include temperature regulation in food processing machines, chemical reactors, water treatment lines, laboratory instruments, environmental chambers, industrial ovens, and commercial HVAC control panels where fast recovery, accuracy, and ease of use are critical. The programmable regulation algorithm, wide temperature input support, and robust relay output options make this controller an effective fit both for modernization and new build automation schemes.

PID temperature control with fuzzy logic, programmable input, and relay output. Automatic action adjustment adapts regulation to dynamic process conditions. Supports thermocouple and RTD inputs; operating temperature -10°C to 50°C.

LCD display indicates measurement and setpoint with dual color. Programmable temperature ramp (0 - 480°C/min), timer (0 - 9999 min), and hysteresis. RS485 communication for remote integration (variant-dependent). IP50 protection, screw terminals, and panel mount in industrial setups.
