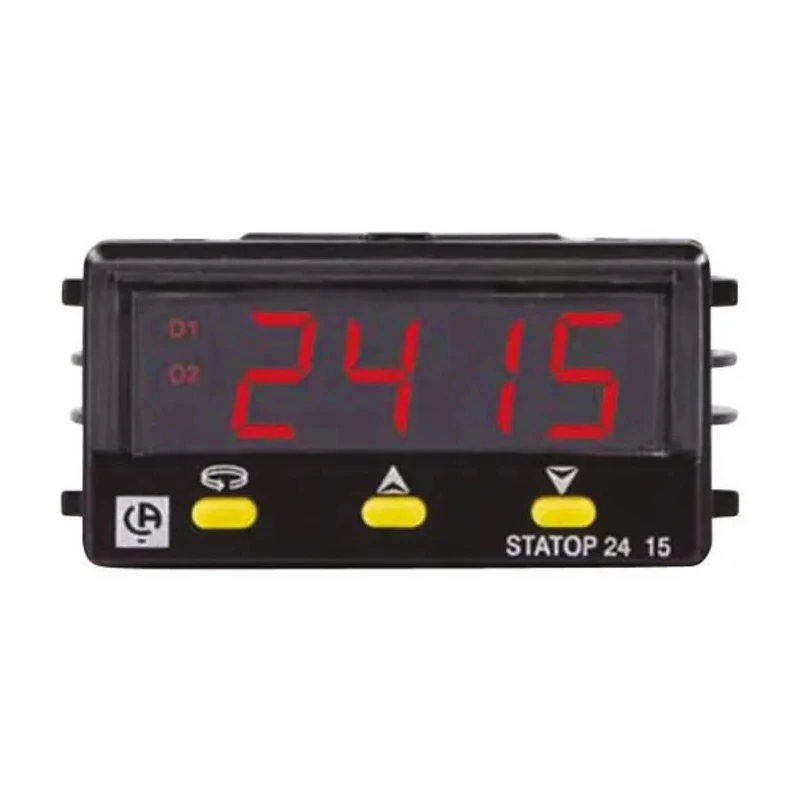

Pyro Controle STATOP 15 Panel PID Temperature Controller Relay, 1 Input, 2 Output, 26V AC, Modbus RTU LR02415-001
Specifications
| Country of Origin | France |
|---|---|
| Display | 2 x 10,000 points |
| Brand | Pyro Controle |
| Operating Temperature | -10 ￫ +50 °C |
| Length | 24mm |
| Model | LR02415-001 |
| IP Rating | IP65 |
| Width | 48mm |
| Mount Type | Panel |
| Timer | 0 ￫ 9999 min |
| Number of inputs | 1 |
| Output type | Relay |
| Series | STATOP 15 |
| Maximum Operating Temperature | 50°C |
| Control Type | PID Controller |
| Minimum Operating Temperature | -10°C |
| Maximum Current | 2A |
| Number of outputs | 2 |
| Terminal type | Screw |
| Maximum Voltage | 260V |
| Proportional Band | 0 ￫ 20 °C |
| Maximum Supply Voltage | 26V ac |
| Digital Comms | Modbus RTU |
| Panel Depth | 98mm |
| Regulators fitted with 2 displays | red for measurement and green for setpoint |
| Programmable temperature input | thermocouple and Pt 100 Ώ resistance |
| Temperature ramp | 0 ￫ 480 °C/min |
| Regulation output | 2 A inverter relay, analogue 4 ￫ 20 mA - 0 ￫ 10 V or logic 0 ￫ 5 V |
| Digital regulators fitted with automatic action adjustment system | self-adjusting PID regulation mode |
| Regulation algorithm | PID + fuzzy logic |
Key Features
- Features self-adjusting PID regulation with fuzzy logic capability.
- Includes two relay outputs for flexible process control.
- Supports programmable thermocouple and Pt100 sensor inputs.
- Equipped with Modbus RTU communication for integration in automation systems.
- Dual display interface provides clear measurement and setpoint readouts.
- Operates within -10°C to 50°C ambient conditions.
- IP65 rated for panel mounting and robust protection.
- Timer, temperature ramp and adjustable hysteresis functions enhance process flexibility.
Product Description
The Pyro Controle LR02415-001 STATOP 15 Panel PID Temperature Controller is designed for demanding industrial and laboratory temperature regulation tasks. This controller is panel-mounted and provides advanced PID regulation with fuzzy logic, enabling fast process recovery and highly efficient system operation.
With one input channel and two output relay channels, this controller allows for precise process control in environments requiring reliable temperature management. It supports programmable temperature inputs, including thermocouple and Pt100 resistance sensors, broadening its scope of use across various heating and cooling applications.
The device features a dual interface display - red LEDs for process measurement and green LEDs for setpoint indication - ensuring that users can monitor and adjust parameters easily. Its regulation algorithm combines PID control and fuzzy logic, delivering stable operation even amidst significant process fluctuations.
Integrated Modbus RTU communication protocol supports full digital connectivity and efficient system integration, making the controller suitable for modern automation setups. Functions such as timer (up to 9999 minutes), temperature ramp (0 to 480°C/min), proportional band, and adjustable hysteresis (0 to 11 s) offer a customizable configuration for diverse process requirements.
With a supply voltage range of 26V AC and a maximum operational voltage of 260V, this unit is robust and reliable for industrial use. IP65 protection ensures durability against dust and moisture when panel mounted, and screw terminals simplify wiring and installation.
The controller is constructed for use in harsh environments, operating within a temperature range of -10°C to +50°C. Its compact dimensions - 24 mm length, 48 mm width, and 98 mm panel depth - are ideal for space-constrained panels.
Typical applications include industrial process control, laboratory heating equipment, HVAC systems, water treatment, manufacturing, and commercial temperature management environments requiring precise, automated regulation.
For more advanced industrial and laboratory automation solutions, explore the EnvMart range of Pyro Controle products and Temperature Controllers.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The operating temperature range is from -10°C to +50°C.
It features one input and two relay outputs for flexible process control.
It supports Modbus RTU communication for integration into automation systems.
It supports programmable temperature inputs from thermocouple and Pt100 resistance sensors.
The maximum supply voltage is 26V AC, with a maximum operational voltage of 260V.
The dimensions are 24 mm in length, 48 mm in width, and 98 mm in panel depth.
It has an IP65 rating, providing protection against dust and moisture when panel mounted.
The timer can be set from 0 to 9999 minutes, allowing for customizable timing functions.
The maximum current output for the relay channels is 2A.
It utilizes a regulation algorithm that combines PID control with fuzzy logic for enhanced performance.
It features a dual display interface with red LEDs for process measurement and green LEDs for setpoint indication.
Typical applications include industrial process control, laboratory heating equipment, HVAC systems, and water treatment.
