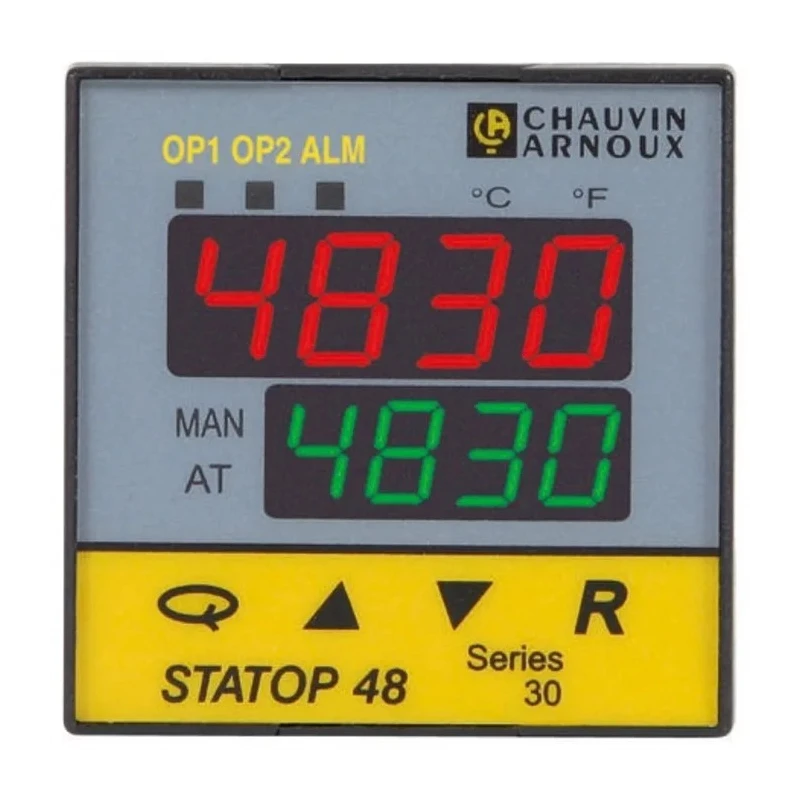

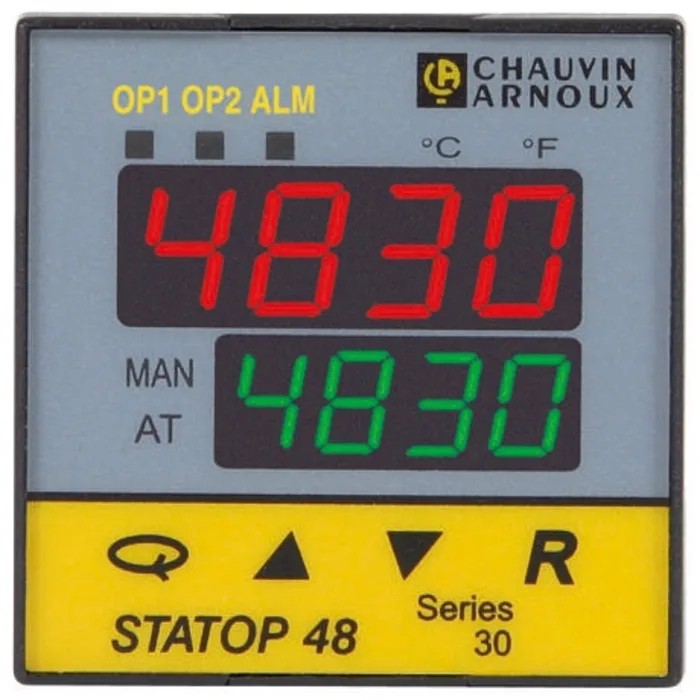

Pyro Controle STATOP 48 Panel PID Temperature Controller, 1 Output Relay 260V AC PID LR04830-006

Pyro Controle LR04830-006 STATOP 48 Panel PID Temperature Controller is a professional-grade device designed for precise temperature regulation in industrial environments. It integrates advanced PID and fuzzy logic algorithms for adaptive process control. The controller supports one output relay with a maximum current of 2A and allows operation up to 260V AC supply voltage.

The device features two LCD displays that distinctly show the measured temperature in red and the setpoint in green for ease of monitoring. It accepts programmable temperature inputs including thermocouples and Pt 100 Ώ resistance sensors, making it suitable for varied industrial temperature sensing needs. Its compact dimensions (48mm x 48mm panel size with a 105mm panel depth) enable easy panel integration.

Designed to operate within an ambient temperature range of -10°C to +50°C, it ensures dependable functionality in industrial and laboratory environments. The device supports a temperature ramp rate of 0 to 480 °C per minute and provides a timer setting from 0 to 9999 minutes for controlled temperature profiles.

Additional features include a self-adjusting PID control mode for automated regulation and adjustable proportional band and hysteresis to fine-tune performance. The controller is mounted securely via panel installation and has an IP50 ingress protection rating, guarding against dust ingress.

Common industrial applications include process control in manufacturing, HVAC system regulation, laboratory testing, and automation systems requiring precise thermal management. Equipped with one output relay for reliable switching.

Operates at a maximum supply voltage of 260V AC. Self-adjusting PID regulation mode provides accurate temperature control. Features dual LCD displays showing red for measurement and green for setpoint. Compatible with thermocouple and Pt 100 Ώ resistance inputs.

Robust panel mounting with a compact 48mm x 48mm size. Operating temperature range from -10°C to +50°C for versatile environments. Programmable temperature ramp up to 480 °C/min for controlled heating. Includes timer function adjustable from 0 to 9999 minutes.

Construction ensures an IP50 rating for dust protection. Explore more Pyro Controle Temperature Controllers and industrial automation solutions on EnvMart for trusted and quality performance.
