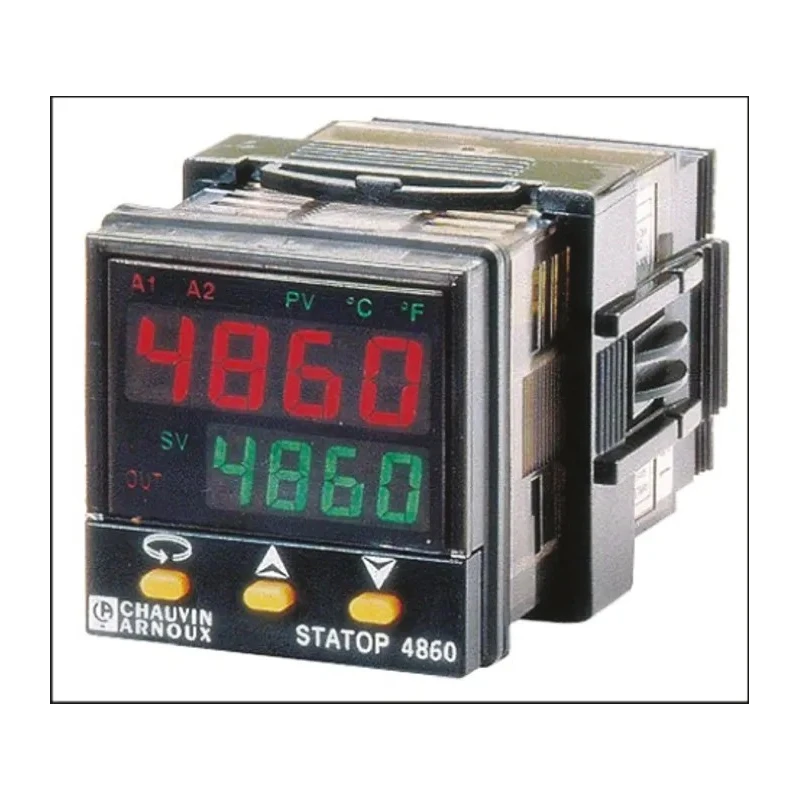

Pyro Controle STATOP 4860 Panel PID Temperature Controller, 5 Output Current 260V LR04860-002

Pyro Controle LR04860-002 STATOP 4860 panel PID temperature controller is designed for precise temperature control in diverse industrial processes. Operating at a maximum supply voltage of 260V, this controller supports five outputs with a maximum current of 2A. Intended for panel mount installation, the compact 48x48mm size with 75mm panel depth facilitates easy integration into control panels.

This professional temperature controller series employs a digital automatic action adjustment system featuring self-adjusting PID regulation aided by fuzzy logic for improved process stability and recovery. It offers dual LCD displays - red for measurement values and green for setpoints - providing clear and simultaneous temperature feedback to operators.

The controller accepts universal temperature inputs including thermocouples and Pt 100 resistance sensors, allowing compatibility with various temperature sensing devices. The regulation algorithm combines PID with fuzzy logic, delivering adaptive and precise temperature control tailored to specific process needs.

Additional functional features include a temperature ramp adjustable up to 480 °C per minute, enabling rapid heating or cooling during process changes, and a timer that can be set from zero up to 9999 minutes for timed control sequences. Regulation outputs encompass a 2A inverter relay, analogue signals (4-20 mA, 0-10 V), and logic outputs (0-5 V), supporting versatile interfacing with external devices and instrumentation.

The unit is rated IP65, ensuring protection against dust and water ingress, making it suitable for demanding industrial environments. Operating temperature specifications are from -10 to +50 °C, accommodating a wide range of ambient conditions commonly encountered in manufacturing, laboratory, HVAC, and process control applications.

Manufactured in France, the Pyro Controle STATOP 4860 LR04860-002 controller is ideal for industrial automation systems requiring reliable and responsive temperature regulation. Features self-adjusting PID regulation mode for automatic action adjustment.

Dual LCD displays with red for measurement and green for setpoint enhance control visibility. Supports universal input type including thermocouple and Pt 100 resistance sensors. IP65 rated panel mount design suitable for harsh industrial environments.

Offers digital regulation algorithm combining PID and fuzzy logic for robust control. Temperature ramp rate up to 480 °C/min ensures rapid temperature changes. Timer functionality from 0 to 9999 minutes allows flexible process timing.

Regulation output includes 2A inverter relay, analogue 4-20 mA, 0-10 V or logic 0-5 V signals. Operating temperature range of -10 to +50 °C supports varied industrial applications. Browse the Temperature Controller category at EnvMart for reliable industrial automation instrumentation solutions from Pyro Controle and other trusted brands.
