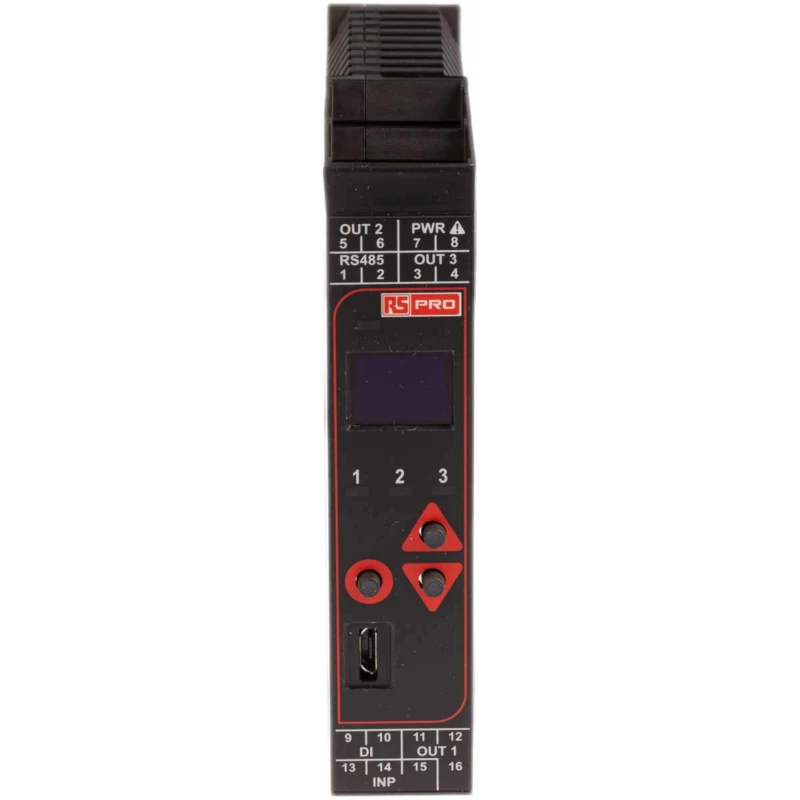

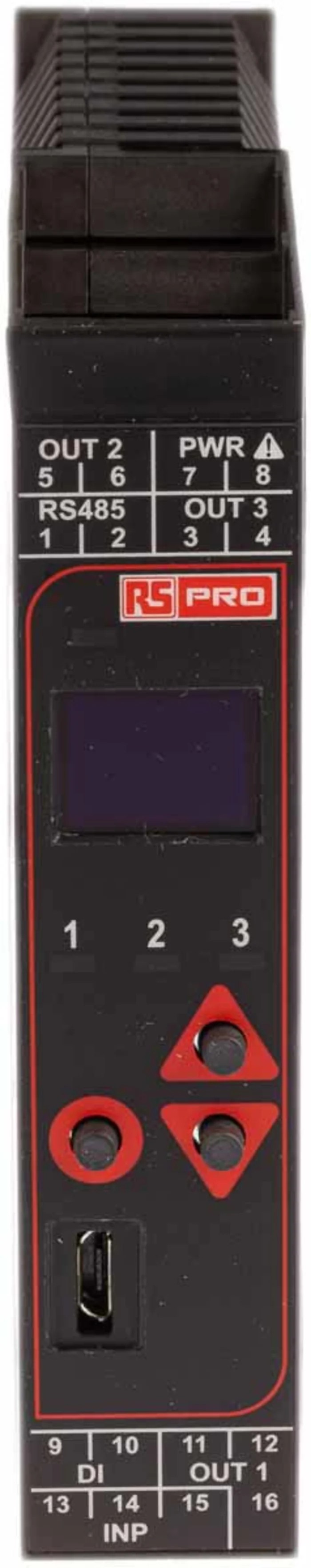

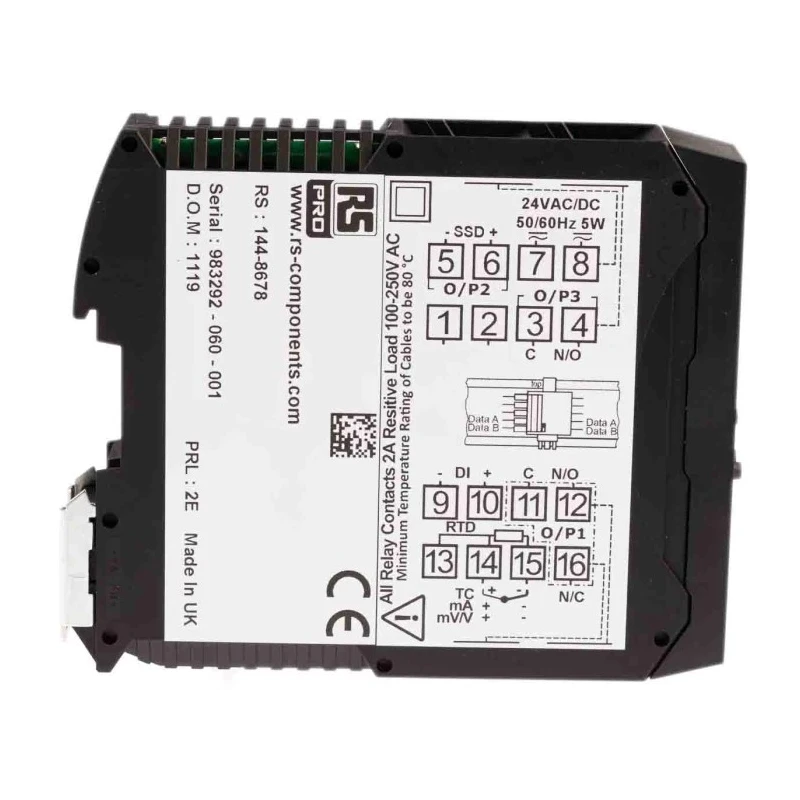

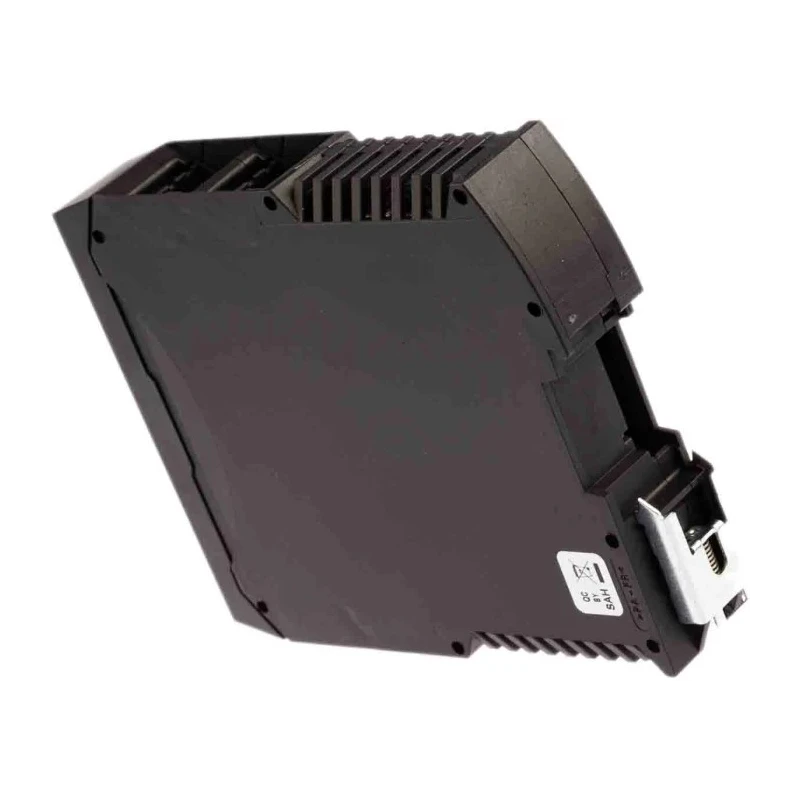

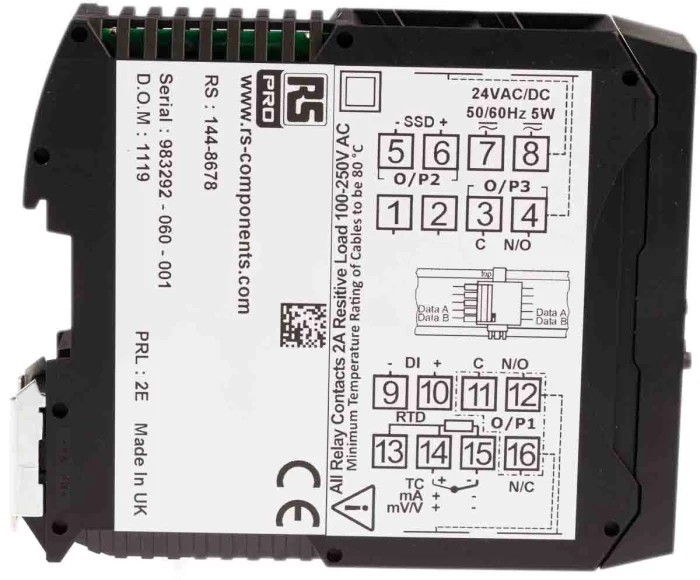

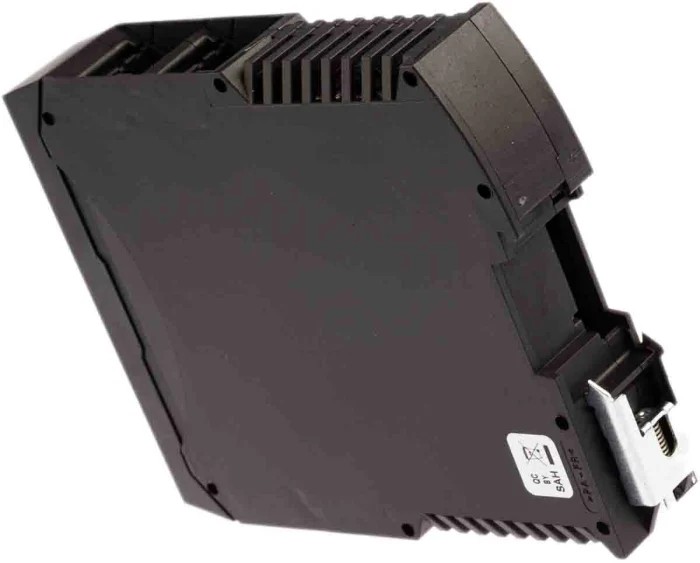

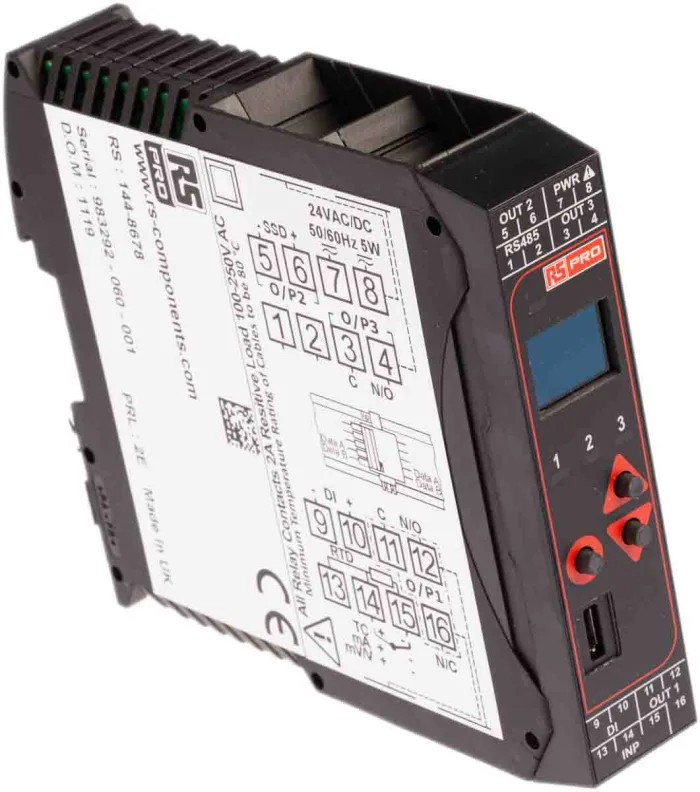

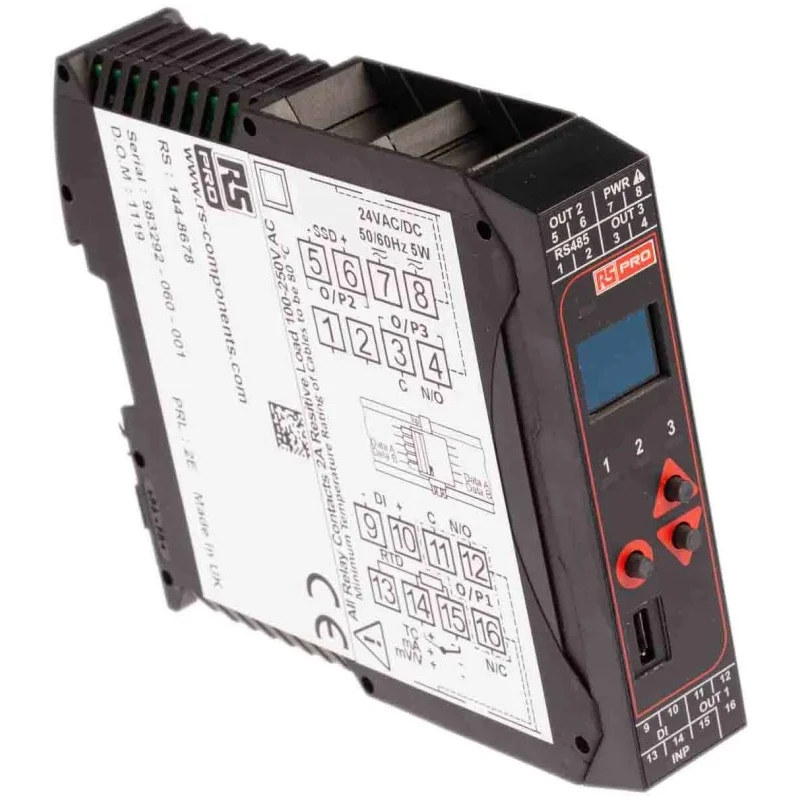

RS PRO DIN Rail PID Temperature Controller 1 Input, 3 Output Relay 24V ac/dc PID Controller 144-8678

RS PRO 144-8678 DIN Rail PID Temperature Controller is a versatile device designed for industrial and commercial temperature regulation applications. With its universal input, the controller can accept DC current, DC voltage, RTD, and thermocouple signals, enabling it to accommodate various sensor types. Operating at 24V ac/dc supply voltage, this compact controller measures 110mm in length and 22.5mm in width, fitting easily on standard DIN rails.

The controller is equipped with three relay outputs capable of handling up to 2A maximum current, providing reliable switching for heaters or other controlled equipment. An easy-to-read OLED display combined with intuitive 3-button navigation simplifies setup and operation. The device offers PID and ON/OFF control modes, making it suitable for precise temperature control processes in industries such as manufacturing, HVAC, laboratory automation, and process control plants.

Digital communication via RS485 Modbus RTU protocol allows for seamless integration with supervisory control and data acquisition (SCADA) or building management systems (BMS). The device meets key international standards including UL61010-1, EN61326, EN61010-1, and CE, ensuring compliance with safety and electromagnetic compatibility requirements.

Designed for reliable operation within a temperature range of 0°C to 55°C, this controller boasts an IP20 ingress protection rating, suitable for installation within control panels. Its screw terminal connections provide secure wiring. The product is manufactured in the United Kingdom, assuring high quality and durability.

This RS PRO PID temperature controller is ideal for industrial automation, laboratory equipment, HVAC control, and process control systems requiring accurate temperature management with versatile sensor compatibility, multiple outputs, and network communication capabilities.

Equipped with a clear OLED display and easy 3-button operation. Supports universal input types including DC current, voltage, RTD, and thermocouple. Includes 3 output relays with a maximum current of 2A each. Provides PID or ON/OFF temperature control for accurate process regulation.

RS485 Modbus RTU digital communication enables integration with automation systems. Compact DIN Rail mounting with a module width of 22.5 mm. Operates reliably between 0°C and 55°C ambient temperatures. Complies with UL61010-1, EN61326, EN61010-1, and CE standards.

Features an IP20 rating for protection against solid objects. Manufactured in the United Kingdom ensuring quality and reliability. Explore more RS PRO temperature control solutions and automation products available on EnvMart to enhance your industrial and process control applications.

Explore more products in our Temperature Controllers category.
