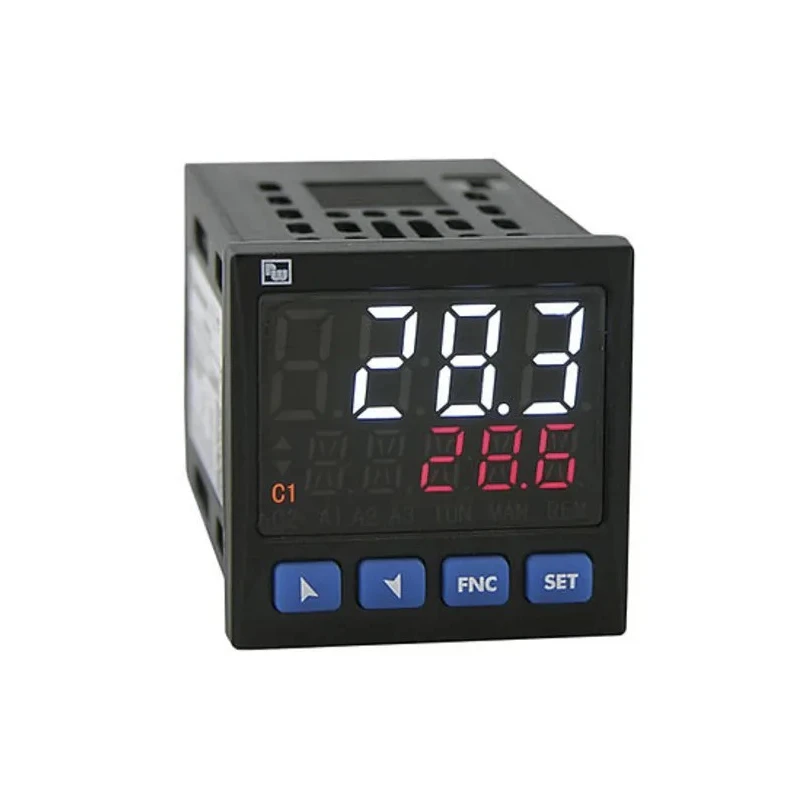

Wachendorff DIN Rail PID Temperature Controller 1 Input, 2 Output PNP 230V ac/dc UR4848xA

Free Delivery in India | Lowest Global Shipping Charges

Wachendorff DIN Rail PID Temperature Controller 1 Input, 2 Output PNP 230V ac/dc UR4848xA

Name: Wachendorff DIN Rail PID Temperature Controller 1 Input, 2 Output PNP 230V ac/dc UR4848xA
Brand: Wachendorff
SKU: 259881
Price: 537.06 USD
Availability: InStock



Category Temperature Controllers Brand Wachendorff Condition New

Specifications

Country of Origin	Italy
Display Type	Multi Line
Brand	Wachendorff
Length	8mm
Model	UR4848xA
IP Rating	IP65, IP20
Width	48mm
Mount Type	DIN Rail
Number of inputs	1
Output type	PNP
Series	UR4848xA
Input Type	Thermocouple
Maximum Operating Temperature	45°C
Control Type	PID Controller
Minimum Operating Temperature	0°C
Number of outputs	2
Maximum Voltage	250V
Standards/Approvals	EU, 2014/30/EU, EMC Directive 2004/108/EC
Maximum Supply Voltage	230V ac/dc
Digital Comms	RS485 Modbus RTU Slave
Panel Depth	80mm

Key Features

Equipped with universal input for process signals including thermocouples and RTDs.
Supports PID control for accurate temperature regulation.
Features multi-line display for clear operation and status monitoring.
Robust IP65 and IP20 rated housing suitable for industrial environments.
Designed for installation on DIN rails with compact 48mm width and 80mm panel depth.
Includes RS485 Modbus RTU Slave digital communication interface.
Operates reliably within 0°C to 45°C temperature range.
Manufactured in Italy with compliance to EU EMC Directive 2014/30/EU.

Product Description

Wachendorff UR4848xA is a professional-grade DIN Rail PID Temperature Controller designed for industrial and laboratory process control applications. This model offers a universal input compatible with thermocouples, Pt100, Pt500, Pt1000, and other RTDs, providing flexible sensor options for accurate temperature measurement.

With 1 input channel and 2 outputs of PNP type, it supports PID control methodology ensuring stable and precise temperature regulation essential for manufacturing, HVAC, and water treatment industries.

The multi-line display enhances user experience by clearly showing process variables and settings, while the robust DIN rail mounting and IP65/IP20 ratings protect the device in harsh electrical and automation environments.

The device supports RS485 Modbus RTU Slave communication, allowing integration into modern industrial automation systems for remote monitoring and control.

The compact 48mm wide housing with 8mm length and 80mm panel depth optimizes panel space without sacrificing durability. Operational temperature range from 0°C to 45°C ensures applicability in varied ambient conditions.

Compliant with EU EMC Directive 2014/30/EU, the controller meets strict electromagnetic compatibility standards, underscoring its quality and reliability. Manufactured in Italy, it represents a high standard in temperature control technology.

Equipped with universal input compatible with thermocouples, Pt100, Pt500, Pt1000, and RTD sensors. Offers precise PID control output with 2 PNP outputs for versatile process control. Advanced multi-line display for enhanced readability and operation.

Robust DIN rail mount design with IP65 and IP20 protection ratings. Integrated RS485 Modbus RTU Slave allows seamless system communication. Designed to operate within a temperature range of 0°C to 45°C for reliability. Compact 48mm x 48mm x 8mm form factor suitable for space-constrained installations.

Complies with EU EMC Directive 2014/30/EU standards. Manufactured in Italy following high-quality standards. Ideal for use in industrial automation, laboratory instrumentation, HVAC systems, manufacturing process control, and other environments requiring reliable temperature regulation.
