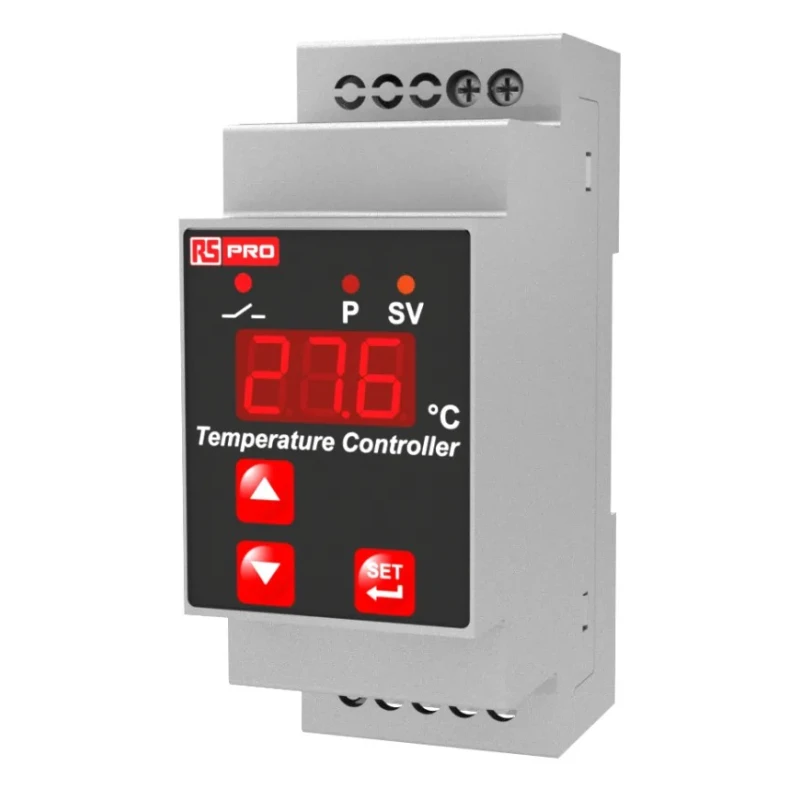

RS PRO ESM DIN Rail On-Off Temperature Controller 1 Input, 1 Output Relay, 24V On-Off 222-8120
Specifications
| Country of Origin | Turkey |
|---|---|
| Display Type | LED |
| Brand | RS PRO |
| Dimensions | 86 mm x 35 mm |
| Length | 86mm |
| Model | 222-8120 |
| IP Rating | IP65 |
| Width | 35mm |
| Mount Type | DIN Rail |
| Number of inputs | 1 |
| Output type | Relay |
| Series | ESM |
| Input Type | PT100 |
| Maximum Operating Temperature | 50°C |
| Control Type | On-Off |
| Minimum Operating Temperature | 0°C |
| Maximum Current | 5A |
| Number of outputs | 1 |
| Standards/Approvals | CE |
| Maximum Supply Voltage | 24V |
| K type thermocouple, 24 V (- 15%, + 10%) 50/60 Hz RS stock no | 222-8119 |
| K type thermocouple, 230V (- 15%, + 10%) 50/60 Hz RS stock no | 222-8121 |
| 2-Wire PT100, 24V (- 15%, + 10%) 50/60 Hz RS stock no | 222-8120 |
Key Features
- The controller supports 1 input and 1 relay output with a maximum current of 5A.
- It operates within a temperature range of 0°C to 50°C with IP65 protection rating.
- The control type is on-off with selectable heating or cooling functions.
- Equipped with an LED display and temperature input type PT100 sensor compatibility.
- The compact dimensions of 86 mm length and 35 mm width allow easy DIN rail installation.
- This controller includes adjustable temperature offset, hysteresis operation, and compressor protection delays.
- Password protection is provided for programming mode to restrict unauthorized changes.
- The device complies with CE standards and is manufactured in Turkey.
Product Description
RS PRO 222-8120 is an ESM series digital On-Off temperature controller designed for reliable and precise temperature regulation in industrial and HVAC applications. Featuring a DIN rail mounting design, this device integrates seamlessly into process control panels, providing robust temperature control with both heating and cooling capabilities.
With one input and one relay output rated at a maximum current of 5A, the controller supports PT100 sensors ensuring accurate temperature readings within a range of 0°C to 50°C. The LED display provides clear status indication. The IP65 rating offers excellent protection against dust and water ingress, making it suitable for harsh industrial environments.
The on/off control type includes adjustable offset and hysteresis options, allowing fine-tuning for specific application needs. Compressor protection delays and selectable operation modes - continuous, stop, or periodic operation in probe defect scenarios - provide enhanced durability and system safety. Password-protected programming ensures secure configuration changes.
This versatile controller is ideal for HVAC systems, ovens, incubators, automotive climate control, and storage solutions where maintaining set temperatures is critical. Manufactured in Turkey, the device adheres to CE standards, ensuring quality and compliance.
The controller supports 1 input and 1 relay output with a maximum current of 5A. On-Off control with heating and cooling function selections. Adjustable temperature offset and hysteresis for precise temperature control. Compressor protection with delay features to enhance system reliability.
Password protection for programming to prevent unauthorized access. Compact DIN rail mount design with dimensions 86 mm x 35 mm. IP65 rated for protection against environmental elements. Suitable for HVAC, ovens, incubators, automotive, and storage temperature control.
Explore more RS PRO Temperature Controllers and automation products on EnvMart for industrial and laboratory process control solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It operates within a temperature range of 0°C to 50°C.
The maximum current output is 5A.
It features a DIN rail mounting design for easy installation.
The device has an IP65 rating, providing protection against dust and water ingress.
It is equipped with an LED display for clear status indication.
The dimensions are 86 mm in length and 35 mm in width.
It uses an On-Off control type with selectable heating or cooling functions.
Yes, it includes password protection for programming mode to restrict unauthorized changes.
It complies with CE standards, ensuring quality and safety.
It includes adjustable temperature offset, hysteresis operation, and compressor protection delays.
