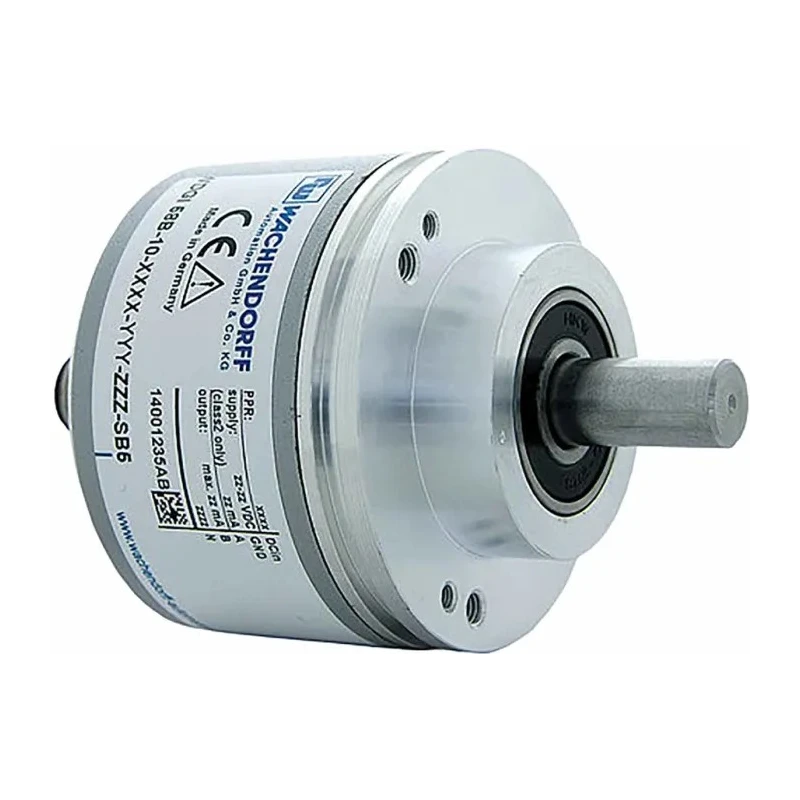

Wachendorff Incremental Encoder 30V DC, 2500 PPR, HTL Signal, Solid Shaft 10 mm, Clamping Flange Mount WDG58B-2500-ABN-G24-K3
Specifications
| Country of Origin | United States |
|---|---|
| Brand | Wachendorff |
| Model | WDG58B-2500-ABN-G24-K3 |
| IP Rating | IP65, IP67 |
| Mount Type | Clamping Flange Mount |
| Standards | DIN VDE 0160 |
| Series | WDGI 58B |
| Overall Width | 83mm |
| Maximum Operating Temperature | 80°C |
| Minimum Operating Temperature | -20°C |
| Shaft Diameter | 10mm |
| Overall height | 83mm |
| Switching Frequency | 200kHz |
| Shaft Type | Solid |
| Terminal type | Cable and Connector |
| Pulses per Revolution | 2500ppr |
| Maximum Supply Voltage | 30V dc |
| Encoder Technology | Incremental |
| Maximum Revolutions | 8000rpm |
| Output Signal Type | HTL |
| High protection class according to DIN 40 050 | IP65 (shaft), IP67 (cover) |
Key Features
- Operates at a maximum supply voltage of 30V DC ensuring stable performance.
- Features a solid 10 mm diameter shaft suitable for industrial applications.
- Clamping flange mount type provides secure, easy installation.
- Built with a robust aluminium housing offering IP65 (shaft) and IP67 (cover) protection ratings.
- Suitable for operating temperatures from -20°C to 80°C for versatile environments.
- Supports up to 8000 RPM maximum revolution speed for fast rotational measurements.
- Switching frequency up to 200 kHz enables precise signal processing.
- Complies with DIN VDE 0160 standards ensuring reliable industrial-grade quality.
Product Description
Wachendorff WDG58B-2500-ABN-G24-K3 is a high-performance incremental rotary encoder engineered for accurate measurement of position, speed, and distance. Operating at 30V DC, this encoder outputs 2500 pulses per revolution using an HTL signal output, making it suitable for various industrial automation and motion control systems.
The encoder features a durable solid shaft with a diameter of 10 mm and is mounted using a clamping flange for secure and stable installation. The robust aluminium housing is designed to withstand harsh industrial environments, certified with IP65 protection on the shaft and IP67 on the cover, ensuring resistance against dust and water ingress.
This unit supports a maximum rotational speed of 8000 RPM with a high switching frequency capability of 200 kHz for precise signal output. The device maintains reliable functionality across a wide temperature range of -20°C to 80°C, suitable for diverse operational conditions.
Conforming to DIN VDE 0160 standards, this encoder includes features such as early warning output for maintenance foresight and tolerance to significant axial and radial loads, enhancing its durability and operational lifespan.
Operates at a maximum supply voltage of 30V DC ensuring stable performance. Features a solid 10 mm diameter shaft suitable for industrial applications. Clamping flange mount type provides secure, easy installation. Built with a robust aluminium housing offering IP65 (shaft) and IP67 (cover) protection ratings.
Suitable for operating temperatures from -20°C to 80°C for versatile environments. Supports up to 8000 RPM maximum revolution speed for fast rotational measurements. Switching frequency up to 200 kHz enables precise signal processing.
Complies with DIN VDE 0160 standards ensuring reliable industrial-grade quality. Designed with early warning output and high axial and radial load tolerance.
This incremental encoder is ideal for industrial automation, manufacturing equipment, motion control systems, and instrumentation requiring precise rotational feedback. It blends toughness with technical sophistication, ensuring operational reliability in demanding settings.
Explore more sensors and encoders in the Sensors category on EnvMart for comprehensive automation solutions.
Explore more products in our Motion Control Sensors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum supply voltage for this model is 30V DC, ensuring stable performance during operation.
This encoder outputs an HTL signal type, suitable for various industrial applications.
It supports a maximum rotational speed of 8000 RPM, allowing for fast rotational measurements.
The encoder features an IP65 protection rating on the shaft and IP67 on the cover, providing resistance against dust and water ingress.
It is suitable for operating temperatures ranging from -20°C to 80°C, making it versatile for different environments.
The clamping flange mount type provides secure and easy installation of the encoder in various applications.
This incremental encoder provides 2500 pulses per revolution, enabling precise measurements of position and speed.
The encoder has a switching frequency capability of up to 200 kHz, allowing for precise signal processing.
The solid shaft has a diameter of 10 mm, suitable for various industrial applications.
It complies with DIN VDE 0160 standards, ensuring reliable industrial-grade quality.
The encoder is built with a robust aluminium housing, designed to withstand harsh industrial environments.
The overall height of this model is 83 mm, which is important for installation considerations.
