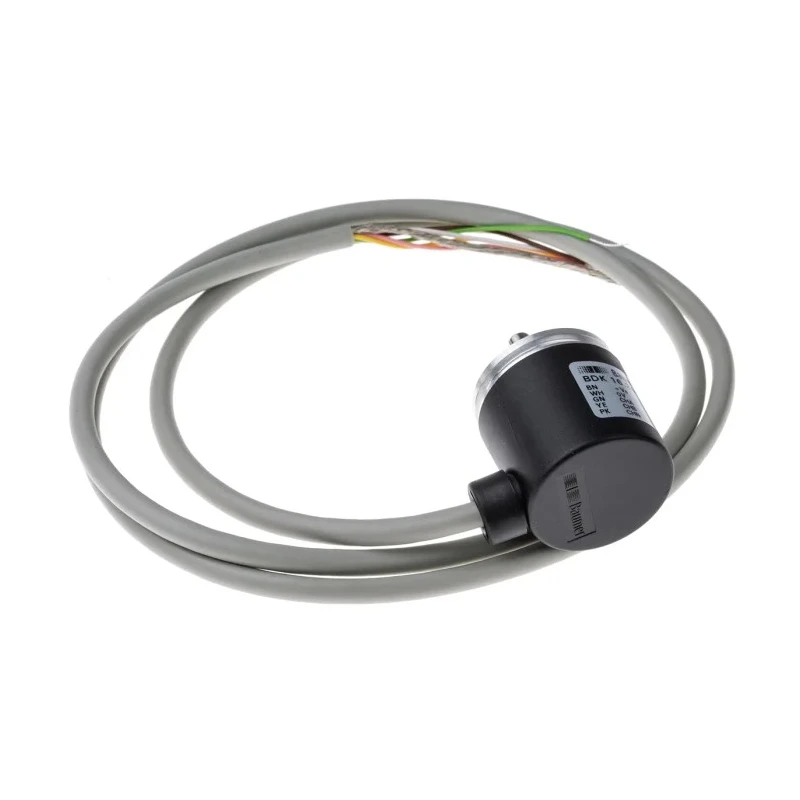

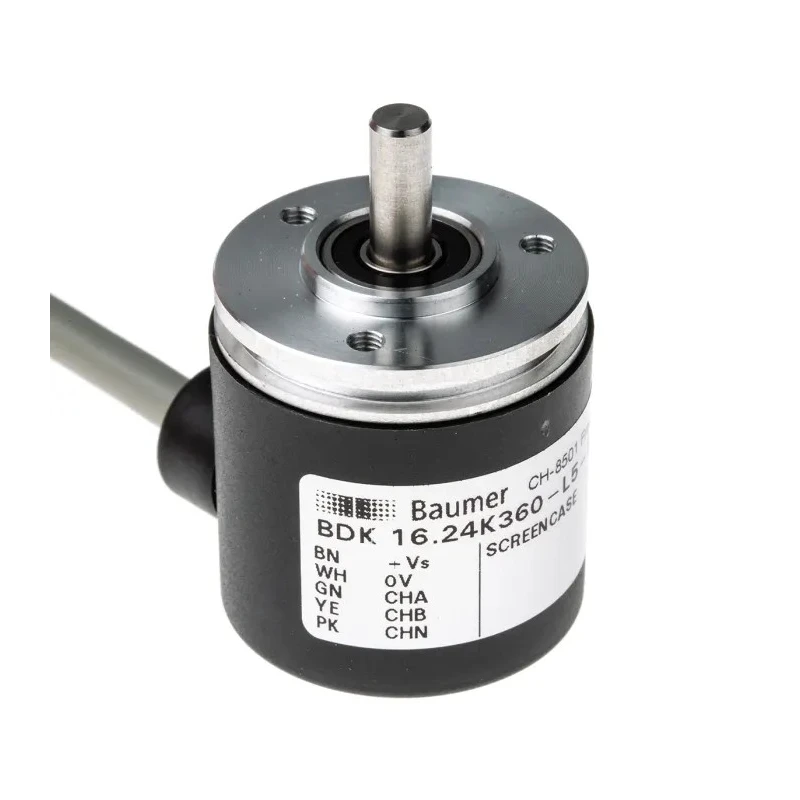

Baumer BDK Series Optical Incremental Encoder 30V dc, 360 PPR, HTL/Push Pull Signal, Solid Shaft 5 mm BDK 16.24K360-L5-5
Specifications
| Country of Origin | Switzerland |
|---|---|
| Brand | Baumer |
| Model | BDK 16.24K360-L5-5 |
| IP Rating | IP64 |
| Mount Type | Synchro Flange Mount |
| Series | BDK |
| Overall Width | 30mm |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -20°C |
| Shaft Diameter | 5mm |
| Switching Frequency | 100kHz |
| Shaft Type | Solid |

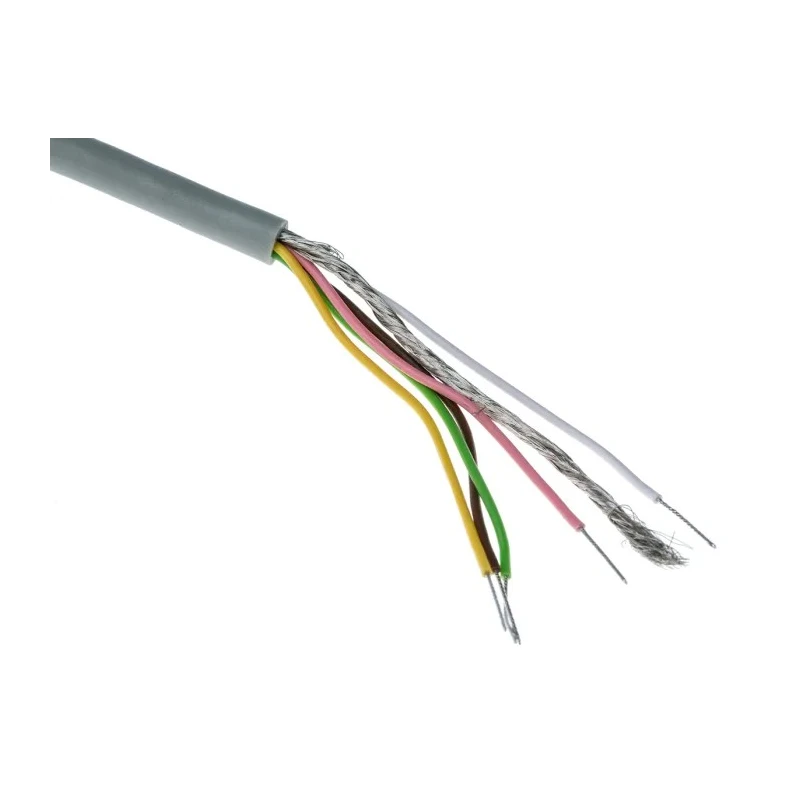

| Terminal type | 1 m Cable |
| Interface Type | TTL |
| Pulses per Revolution | 360ppr |
| Standards/Approvals | UL |
| Maximum Supply Voltage | 30V dc |
| Overall Depth | 34mm |
| Encoder Technology | Optical |
| Maximum Revolutions | 6000rpm |
| Output Signal Type | HTL/Push Pull |
Key Features
- Encoder uses optical technology for precise motion detection.
- Features a solid 5 mm shaft for durable mechanical connection.
- Supports a maximum rotational speed of 6000 rpm.
- Equipped with IP64 rating for protection against dust and water splashes.
- Includes a 1 m cable for easy connection and installation.
- Operating temperature range from -20°C to 85°C for versatile environmental use.
- Mounts using a synchro flange mount for a secure fit.
- Outputs a TTL interface signal type compatible with various control systems.
Product Description
Baumer BDK 16.24K360-L5-5 is an advanced optical incremental encoder designed for precise position and speed measurement in industrial automation applications. Operating at 30V DC, this encoder offers 360 pulses per revolution (PPR) ensuring accurate signal output ideal for motion control systems.
The encoder features a solid 5 mm shaft and a compact design measuring 30 mm in width and 34 mm in overall depth. It is housed in durable plastic with an aluminum flange, providing mechanical robustness and ease of installation using a synchro flange mount.
With an IP64 rating, the device is protected against dust ingress and water splashes, making it suitable for harsh industrial environments. It supports an operating temperature range from -20°C to 85°C, ensuring reliable performance under varied conditions.
The device utilizes HTL/Push Pull output signals with a TTL interface, offering a switching frequency up to 100 kHz to accommodate high-speed rotational sensing. The 1 meter cable terminal simplifies connectivity in control gear setups.
Baumer BDK series encoders include short-circuit protection and temperature compensation features, enhancing operational reliability and lifespan in automation, manufacturing, robotics, and HVAC systems.
Encoder uses optical technology for precise motion detection. Features a solid 5 mm shaft for durable mechanical connection. Supports a maximum rotational speed of 6000 rpm. Equipped with IP64 rating for protection against dust and water splashes.
Includes a 1 m cable for easy connection and installation. Operating temperature range from -20°C to 85°C for versatile environmental use. Mounts using a synchro flange mount for a secure fit. Outputs a TTL interface signal type compatible with various control systems.
Complies with UL standards ensuring quality and safety. Switching frequency up to 100 kHz for high-speed applications.
This Baumer BDK 16.24K360-L5-5 Incremental Encoder is widely applicable across industrial, laboratory, manufacturing, and automation sectors requiring precise rotational measurement. It is manufactured in Switzerland, reflecting stringent quality standards.
Explore more encoders and motion control sensors at EnvMart to suit varied technical requirements and industrial uses.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum supply voltage for the Baumer BDK 16.24K360-L5-5 encoder is 30V DC.
This encoder outputs an HTL/Push Pull signal type with a TTL interface.
The encoder supports a maximum rotational speed of 6000 rpm.
It has an IP64 rating, providing protection against dust and water splashes.
The operating temperature range for this model is from -20°C to 85°C.
The encoder features a solid shaft with a diameter of 5 mm.
It mounts using a synchro flange mount for a secure fit.
This model provides 360 pulses per revolution (PPR).
The encoder has an overall width of 30 mm and a depth of 34 mm.
The switching frequency for this encoder is up to 100 kHz.
It includes a 1 meter cable terminal for easy connection and installation.
The encoder complies with UL standards, ensuring quality and safety.
