Siemens DIMENSION Switched Mode DIN Rail Power Supply 480V ac AC Input 28V dc 40A Output DC 960W QT40.241

Free Delivery in India | Lowest Global Shipping Charges

Siemens DIMENSION Switched Mode DIN Rail Power Supply 480V ac AC Input 28V dc 40A Output DC 960W QT40.241

Name: Siemens DIMENSION Switched Mode DIN Rail Power Supply 480V ac AC Input 28V dc 40A Output DC 960W QT40.241
Brand: Siemens
SKU: 218333
Price: 728.18 USD
Availability: InStock



Category DIN Rail Power Supply Brand Siemens Condition New

Specifications

Country of Origin	India
Brand	Siemens
Power	960W
Height	124mm
Model	QT40.241
Depth	127mm
IP Rating	IP20
Width	110mm
Series	DIMENSION
Output Current	40A
Maximum Operating Temperature	70°C
Sub Type	Switched Mode
Minimum Operating Temperature	-25°C
Number of outputs	1
Maximum Input Voltage	480V ac
Electrical Phase	3
Maximum Output Voltage	28V dc
Minimum Input Voltage	380V ac

Key Features

Compact and lightweight design enables easy installation on DIN rails.
Supports three-phase 380VAC to 480VAC input voltage range.
High output current of 40A and power rating of 960W for demanding applications.
Operating temperature range from -25°C to 70°C for robust performance.
Features IP20 protection rating suitable for typical industrial environments.
Equipped with diagnostics including dry DC-ok contact and status LEDs for overload and DC-ok indication.
Active power factor correction and low inrush current reduce electrical stress.
Low ripple noise of 100mV peak-to-peak ensures clean DC power supply.

Product Description

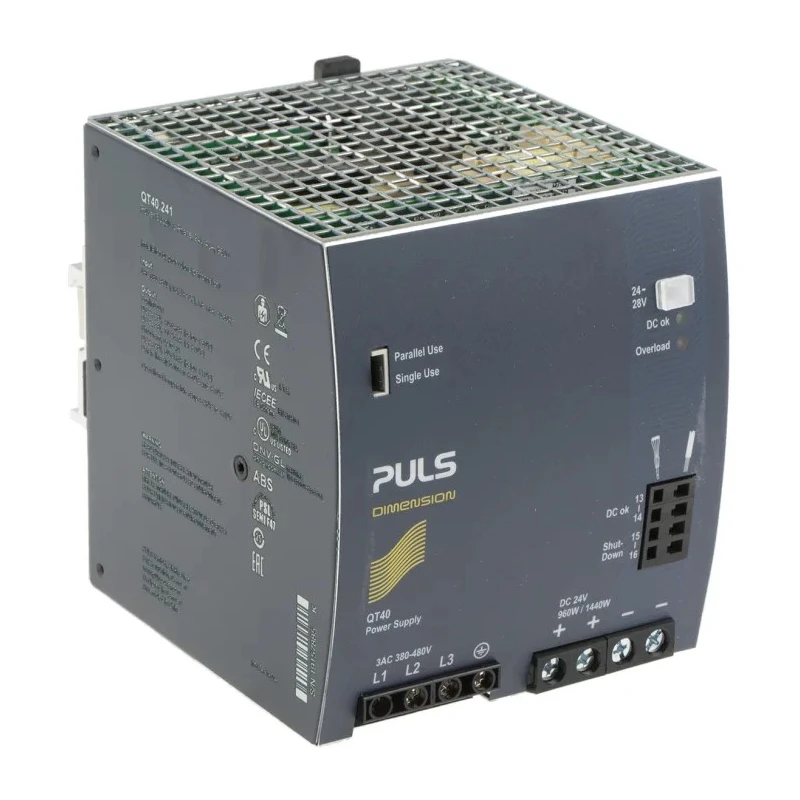

The PULS QT40.241 DIMENSION series Switched Mode DIN Rail Power Supply offers a high-performance solution for industrial power needs. It accepts a three-phase AC input voltage range from 380V to 480V and provides a stable DC output of 28V with 40A current capacity, delivering a total power output of 960W. This power supply is engineered for reliable operation under harsh conditions with an operating temperature range of -25°C to 70°C.

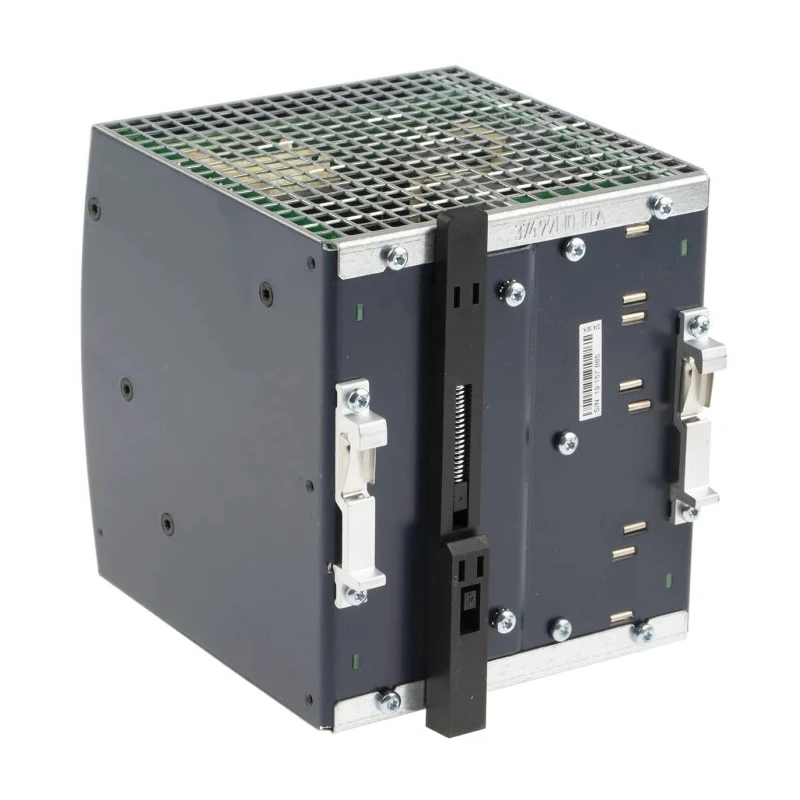

Its compact dimensions - 110mm width, 124mm height, and 127mm depth - facilitate versatile mounting on standard DIN rails. The device features IP20 ingress protection, making it appropriate for controlled industrial environments but not for exposure to water or dust.

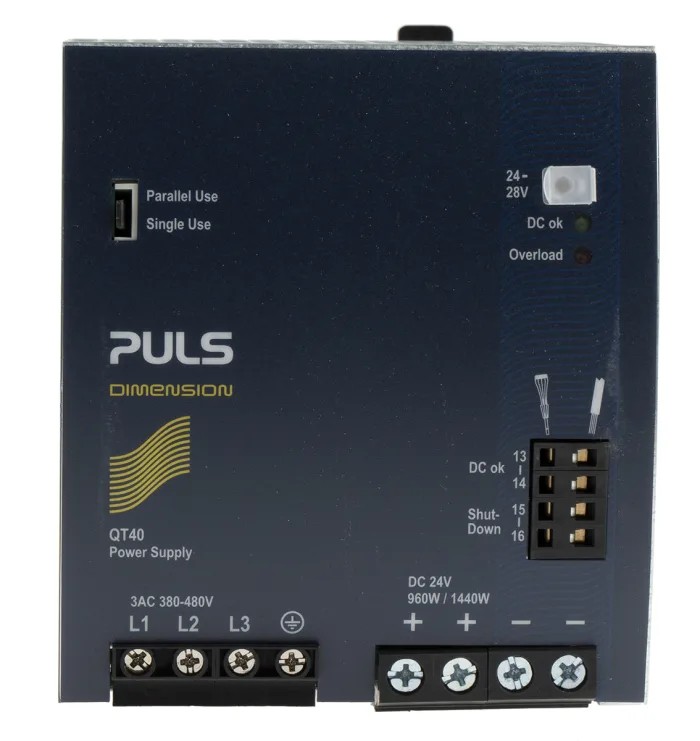

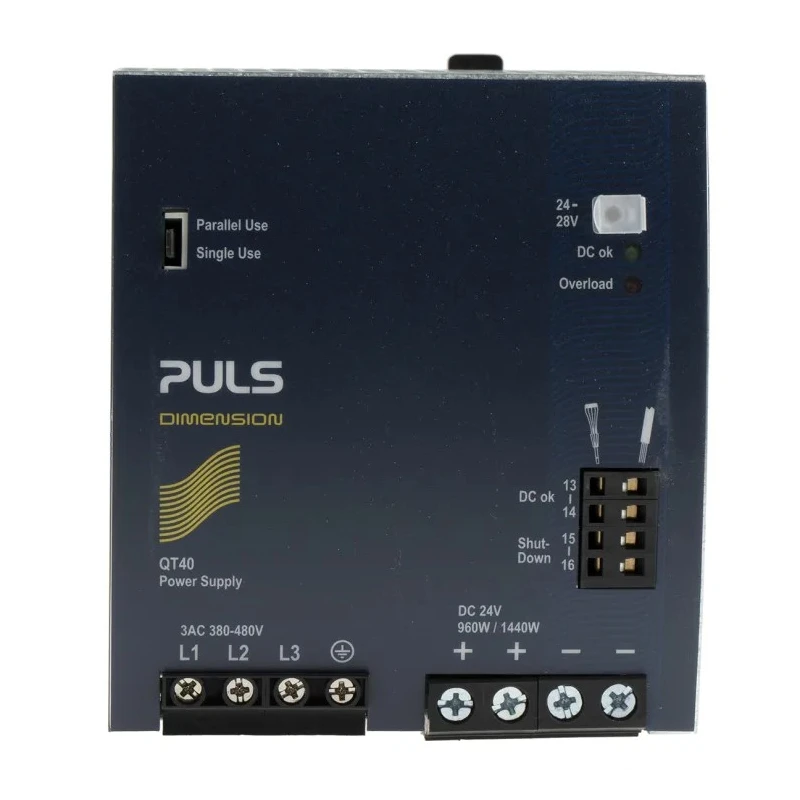

Design elements include quick-connect spring-clamp terminals for efficient wiring and built-in diagnostic features such as a dry contact for DC-ok, a green LED indicating DC-ok status, and a red LED for overload warnings. This enables simple monitoring and maintenance.

Performance-wise, the power supply achieves high efficiency up to 95.3%, active power factor correction (PFC), and effective filtering of voltage transients, minimizing electromagnetic interference and improving power quality. Its low ripple noise of 100mV peak-to-peak ensures sensitive equipment receives clean and stable power.

Common applications encompass industrial control systems, automation machinery, communication infrastructure, and instrumentation equipment requiring durable and reliable DC power.

Compact DIN rail mount power supply with 960W output power. Three-phase AC input voltage range of 380V to 480V. Stable 28V DC output voltage delivering up to 40A current. Wide operating temperature from -25°C to 70°C suitable for industrial environments.

IP20 enclosure protection ensuring safe operation indoors. Comprehensive diagnostic features for easy status monitoring. High efficiency up to 95.3% with active power factor correction. Low ripple noise output minimizing interference with connected devices.

Suitable for industrial automation, control, communication, and instrumentation.

Choose the PULS QT40.241 for a reliable DIN Rail Power Supply solution ideal for demanding industrial and commercial electrical applications. Explore more power supplies and industrial components at EnvMart.
