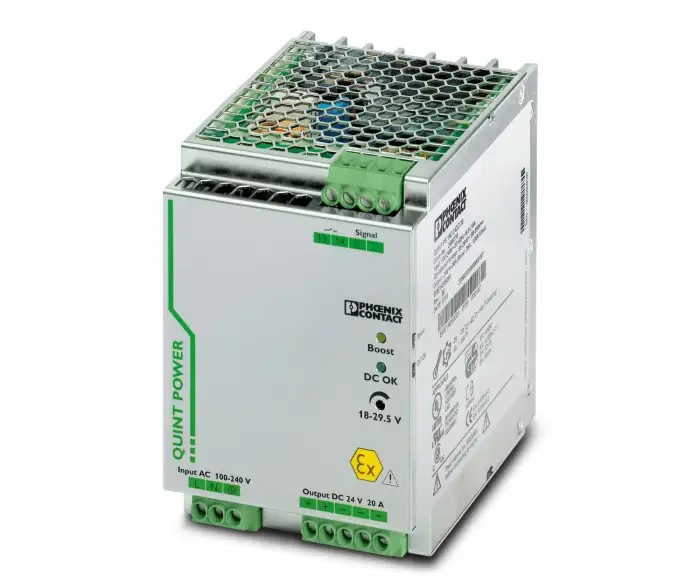

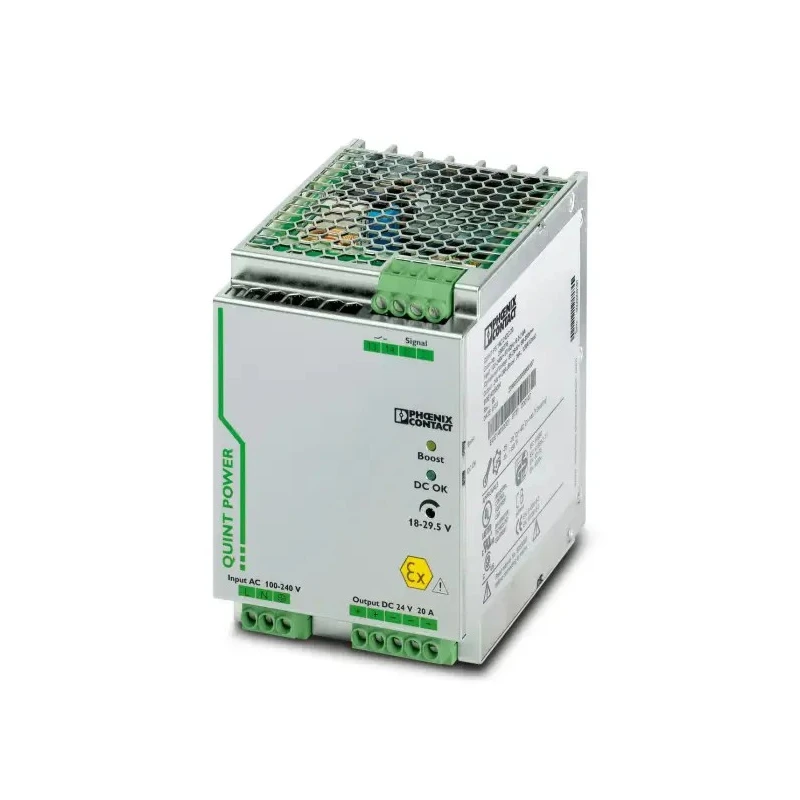

Phoenix Contact QUINT POWER Switched Mode DIN Rail Power Supply 264V AC Input 29.5V DC, 20 A Output DC 480 W 2320898
Specifications
| Country of Origin | Thailand |
|---|---|
| Brand | Phoenix Contact |
| Power | 480W |
| Efficiency | 93% |
| Height | 130mm |
| Model | 2320898 |
| Depth | 130mm |
| IP Rating | IP20 |
| Width | 90mm |
| Series | QUINT POWER |
| Output Current | 20A |
| Maximum Operating Temperature | 70°C |
| Sub Type | Switched Mode |
| Minimum Operating Temperature | -25°C |
| Number of outputs | 1 |
| Maximum Input Voltage | 264V ac |
| Electrical Phase | 1 |
| Hazardous Area Certification | IECEx, ATEX |
| Standards/Approvals | UL Recognised, UL, IECEE CB Scheme, EAC, cULus, cUL Recognised, cUL |
| Maximum Output Voltage | 29.5V dc |
| Minimum Input Voltage | 85V ac |
Key Features
- Provides 480 watts of continuous power output.
- Operates with 264V AC maximum input voltage and 85V minimum input voltage.
- Single output with 29.5V DC voltage and 20A output current.
- Features IP20 ingress protection for industrial safety.
- Wide operating temperature range from -25°C to 70°C.
- Equipped with a 10A input fuse for short circuit protection.
- Includes static power boost up to 1.5 times nominal current.
- Compact dimensions of 130mm height, 90mm width, and 130mm depth.
Product Description
Phoenix Contact 2320898 QUINT POWER Switched Mode DIN Rail Power Supply is a robust power supply unit designed for industrial applications requiring reliable 24V DC output power. With a maximum input voltage of 264V AC and output power of 480 watts at 29.5V DC and 20 A current, it reliably supplies power to DIN rail-mounted devices including relays and circuit breakers.
This device features a static power boost allowing up to 1.5 times the nominal current to support startup of difficult loads, ensuring smooth operation without interruption. The preventive monitoring system detects critical operating states proactively, enhancing durability and performance by avoiding faults.
The power supply’s compact size (130 x 90 x 130 mm) and light weight (1.7 kg) make installation and handling easy. Rated at IP20, the unit is resistant to the ingress of solid objects larger than 12 mm, suitable for industrial environments.
A 10A input fuse provides quick protection against short circuits, ensuring safety in electrical panels. Operating temperature ranges from -25°C to +70°C, making it adaptable for demanding conditions.
Certified for hazardous areas with IECEx and ATEX approvals, and recognized by UL, IECEE CB Scheme, cULus, and others, this power supply meets rigorous international safety and quality standards.
Provides 480 watts of continuous power output. Operates with 264V AC maximum input voltage and 85V minimum input voltage. Single output with 29.5V DC voltage and 20A output current. Features IP20 ingress protection for industrial safety.
Wide operating temperature range from -25°C to 70°C. Equipped with a 10A input fuse for short circuit protection. Includes static power boost up to 1.5 times nominal current. Compact dimensions of 130mm height, 90mm width, and 130mm depth.
Meets IECEx and ATEX hazardous area certifications. UL Recognized, IECEE CB Scheme, cULus approved for safety compliance.
This Phoenix Contact QUINT POWER power supply is ideal for industrial, manufacturing, electrical panel, automation, and control system applications requiring reliable and efficient DC power conversion. Explore more power supply units from Phoenix Contact for enhanced industrial performance at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It provides 480 watts of continuous power output.
The maximum input voltage is 264V AC, while the minimum input voltage is 85V AC.
It has a single output with a voltage of 29.5V DC and an output current of 20A.
The dimensions are 130mm in height, 90mm in width, and 130mm in depth.
It operates within a temperature range of -25°C to +70°C.
It features IP20 ingress protection, which is suitable for industrial safety.
It is certified for hazardous areas with IECEx and ATEX approvals, and recognized by UL, IECEE CB Scheme, and cULus.
Yes, it is equipped with a 10A input fuse for short circuit protection.
It has an efficiency rating of 93%.
It includes a static power boost that allows up to 1.5 times the nominal current for starting difficult loads.
It operates on a single electrical phase.
It is suitable for industrial, manufacturing, electrical panel, automation, and control system applications requiring reliable DC power.
