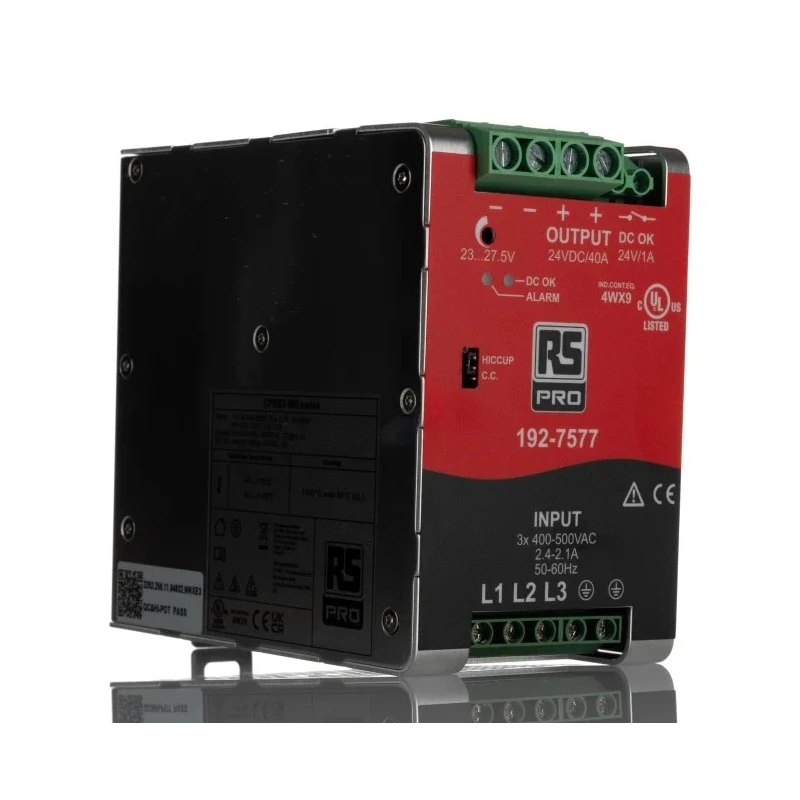

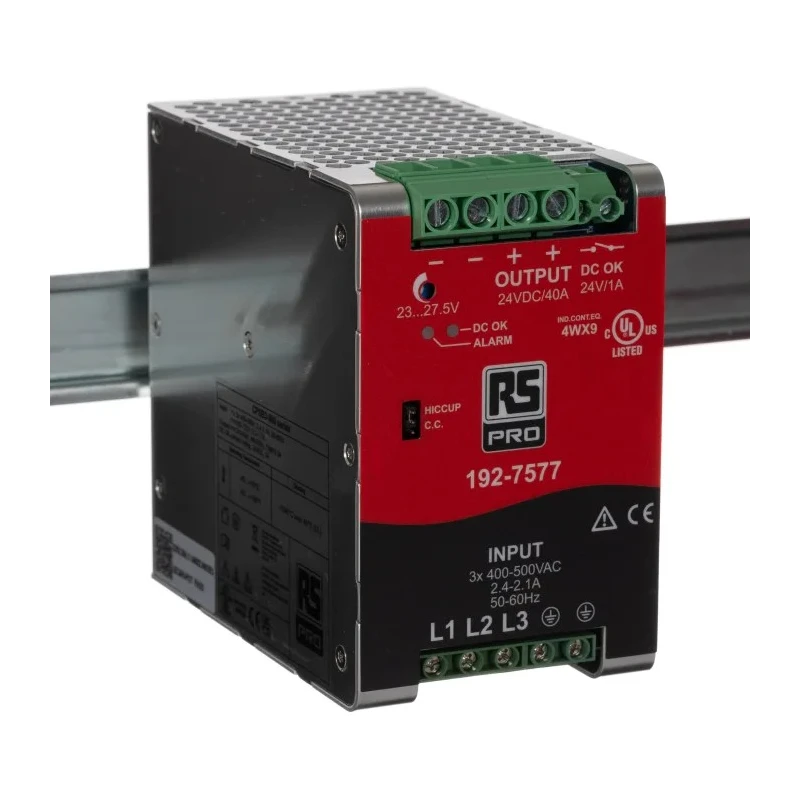

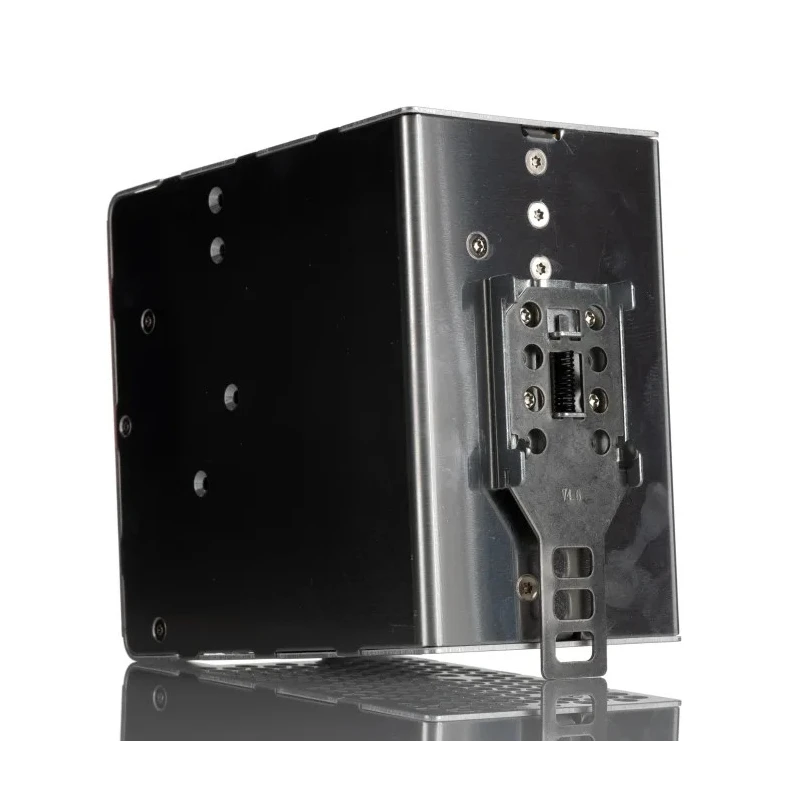

RS PRO Switched Mode 3 Phase DIN Rail Power Supply 24V DC 40A Output 960W 725V AC/DC Input 192-7577
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | RS PRO |
| Power | 960W |
| Efficiency | 92.5% |
| Height | 127mm |
| Model | 192-7577 |
| Depth | 137.5mm |
| IP Rating | IP20 |
| Width | 80mm |
| Series | RS PRO |
| Output Current | 40A |
| Maximum Operating Temperature | 60°C |
| Sub Type | Switched Mode |
| Minimum Operating Temperature | -40°C |
| Number of outputs | 1 |
| Maximum Input Voltage | 725V |
| Electrical Phase | 3 |
| Maximum Output Voltage | 24V |
| Minimum Input Voltage | 340V ac |
Key Features
- Compact and highly efficient power supply with Power Factor Correction (PFC).
- Designed for mounting on 35mm DIN rails for quick installation.
- Wide input voltage range from 340 to 725V AC for versatile use.
- Robust aluminium housing ensures durability and industrial suitability.
- Includes short circuit, over voltage, and over temperature protection.
- Output voltage is adjustable to compensate for voltage drops.
- Provides stable regulated output suitable for control and automation devices.
- IP20 rated enclosure protects against solid object ingress.
Product Description
RS PRO 192-7577 is a switched mode DIN Rail Power Supply designed for industrial and commercial use, offering a maximum output power of 960W. Operating on a three-phase AC/DC input voltage range of 340 to 725V, this unit provides a regulated 24V DC output current of up to 40A. It is engineered with Power Factor Correction (PFC) for enhanced energy efficiency and reduced electrical noise.
The power supply is mounted on a standard 35mm DIN rail and is equipped with screw terminal connections for easy integration into control panels and automation systems. The robust aluminium housing offers mechanical protection and is rated IP20 for safety against solid objects. It includes multiple built-in protections such as over voltage, over temperature, and short circuit protection, ensuring reliability in demanding environments.
With dimensions of 80mm width, 127mm height, and 137.5mm depth, the compact size facilitates installation in electrical enclosures with space constraints. The device is suitable for powering PLCs, motor controllers, relays, and other DC equipment in industrial, manufacturing, and electrical distribution applications.
This power supply meets a wide range of international standards including EN50178, IEC60950, and UL508, confirming its safety and electromagnetic compatibility. The adjustable output voltage feature helps compensate for voltage drops in extended wiring setups, maintaining stable operation of connected devices.
Product features include high efficiency of 92.5%, remote DC-OK signal indication, and an operating temperature range of -40°C to 60°C, making it suitable for harsh industrial environments. Country of origin is Taiwan, Province Of China.
Compact and efficient 3 phase power supply with PFC. Wide input voltage range from 340 to 725V AC/DC. Adjustable 24V DC output at 40A current. Robust IP20 aluminium housing with screw terminals. Comprehensive protection including short circuit and over voltage.
Designed for mounting on 35mm DIN rail (TS35 standard). Meets multiple international safety and EMC standards. Operating temperature range from -40°C to 60°C. High efficiency of 92.5% ensures optimal power usage.
RS PRO products offer professional-grade quality and reliability in power supplies suited for industrial, manufacturing, automation, and electrical infrastructure applications. Explore more RS PRO power supplies and DIN rail mounted solutions on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum output power of this power supply is 960W.
It operates with a wide input voltage range from 340 to 725V AC.
This power supply provides an output current of up to 40A.
The efficiency rating of this model is 92.5%.
The dimensions are 80mm in width, 127mm in height, and 137.5mm in depth.
It includes short circuit, over voltage, and over temperature protection.
Yes, the output voltage is adjustable to compensate for voltage drops.
The operating temperature range is from -40°C to 60°C.
It has a robust aluminium housing with an IP20 rating.
It is designed for mounting on a standard 35mm DIN rail.
It meets multiple international standards including EN50178, IEC60950, and UL508.
