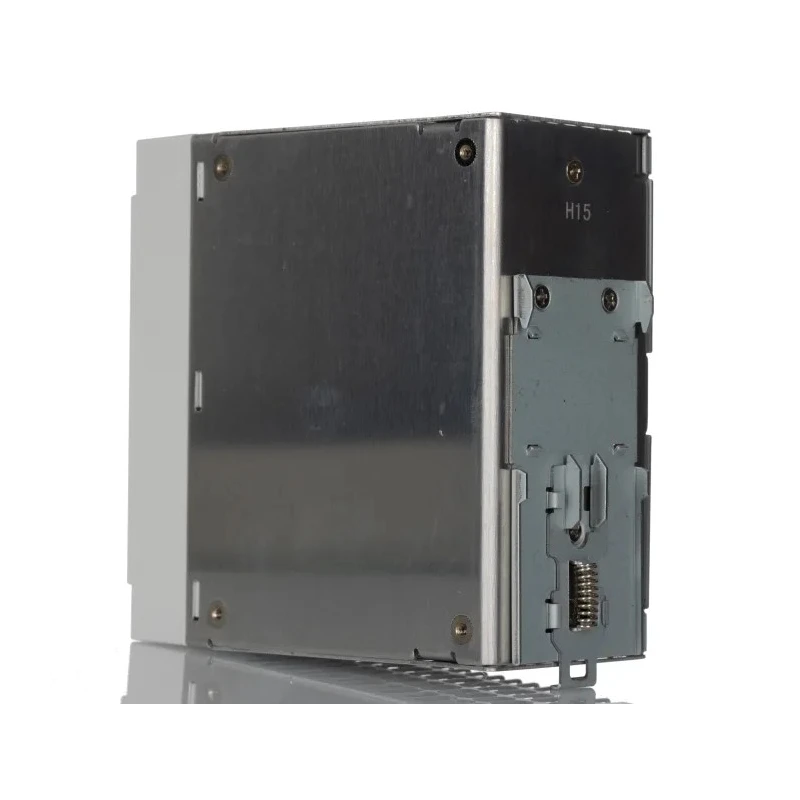

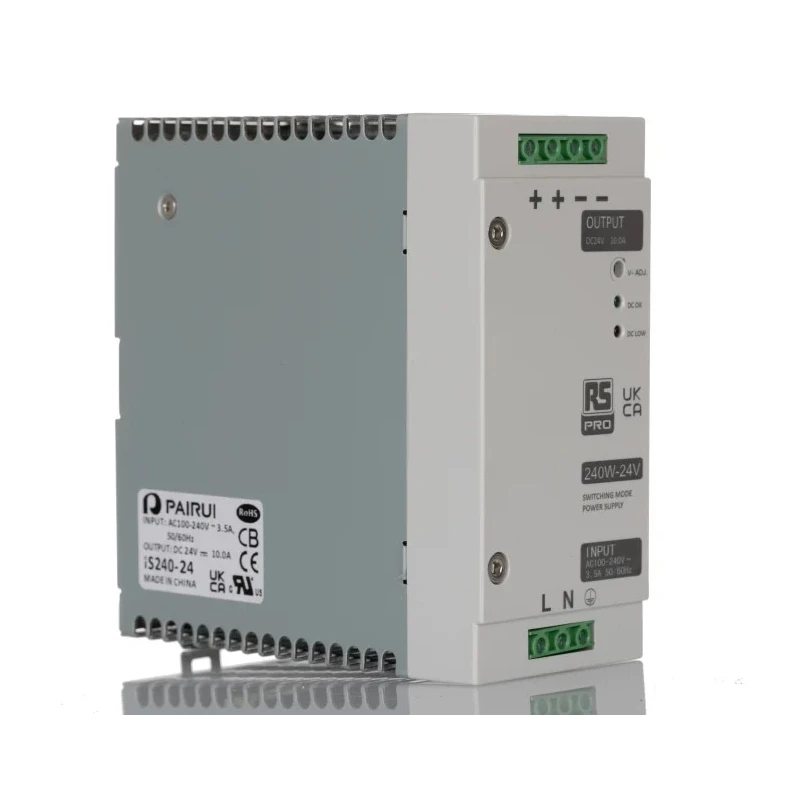

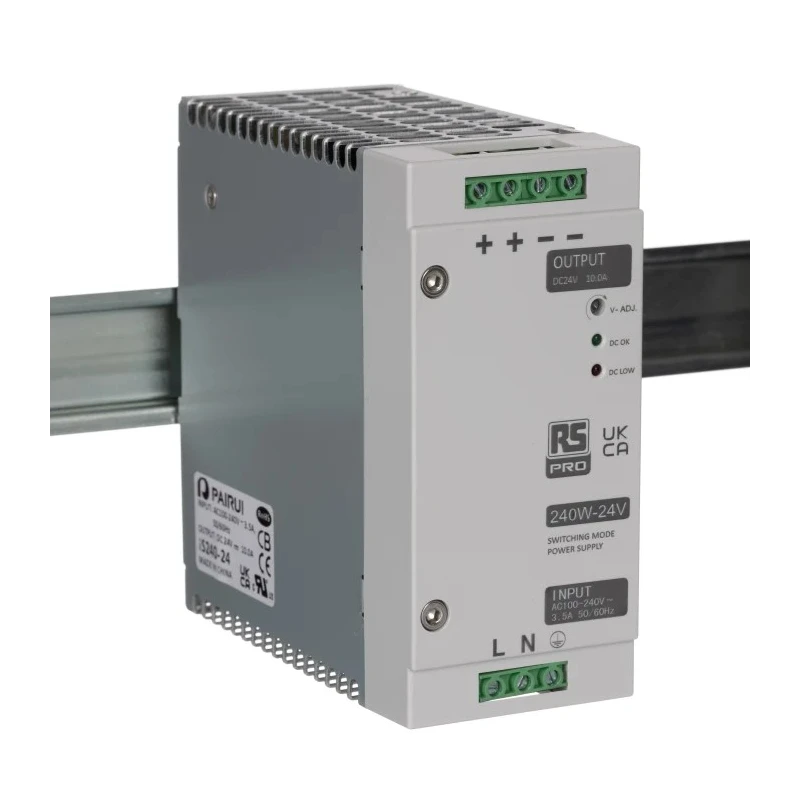

RS PRO Switched Mode DIN Rail Power Supply 264V ac Input 28V dc Output 10A 240W 136-8321
Specifications
| Country of Origin | China |
|---|---|
| Brand | RS PRO |
| Power | 240W |
| Height | 130mm |
| Model | 136-8321 |
| Depth | 125mm |
| Width | 60mm |
| Output Current | 10A |
| Maximum Operating Temperature | 70°C |
| Sub Type | Switched Mode |
| Minimum Operating Temperature | -25°C |
| Number of outputs | 1 |
| Maximum Input Voltage | 264V ac |
| Electrical Phase | 1 |
| Standards/Approvals | CB, CE, cUL, cULus Recognised, FCC, UL |
| Maximum Output Voltage | 28V dc |
| Minimum Input Voltage | 90V ac |
Key Features
- Compact 35mm DIN rail mounting package for easy installation.
- Universal AC input voltage range from 90V to 264V for flexible use.
- High performance and reliability with 100% full load burn-in test.
- Cooling by free air convection with LED indicators for power status.
- Includes short circuit, over voltage, over current, and over temperature protection.
- Suitable for industrial applications such as process control and factory automation.
- Operating temperature range from -25°C to 70°C ensuring robust performance.
- Certified with CB, CE, cUL, cULus Recognised, FCC, and UL standards.
Product Description
RS PRO 136-8321 switched mode DIN Rail Power Supply offers a highly reliable 240W output power with a 28V DC output voltage and 10A output current, accepting a universal input voltage range from 90V to 264V AC. Designed for industrial environments, this compact power supply is mounted on a standard 35mm DIN rail, optimizing space and simplifying electrical panel installations.
It operates efficiently within a wide temperature range from -25°C to 70°C. The power supply features active LED indicators to show DC power presence and low voltage conditions, enhancing operational monitoring. Advanced protection mechanisms guard against short circuit, over voltage, over current, and over temperature conditions, ensuring long-term reliability and safety.
This product complies with multiple international standards and approvals including CB, CE, cUL, cULus Recognised, FCC, and UL, making it suitable for global industrial and commercial applications. Typical use cases include process control, factory automation, traffic management systems, and other environments that require robust DC power sources.
The compact size with dimensions 130mm height, 60mm width, and 125mm depth makes it ideal for compact control cabinets without sacrificing power performance. Compact 35mm DIN rail mounting package for secure and space-saving installation.
Universal AC input voltage from 90V to 264V supports diverse power environments. High reliability with 100% full load burn-in testing for early failure detection. Free air convection cooling eliminates need for fans, reducing maintenance.
LED indicators provide real-time status of DC power and low voltage warnings. Comprehensive protection ensures operational safety and durability. Wide operating temperature range for use in various industrial conditions.
Certifications including CB, CE, cUL, FCC, and UL ensure compliance.
This RS PRO power supply is a dependable solution for industrial and electrical applications requiring stable DC power, enhancing the performance of automation, manufacturing, and control systems. Explore EnvMart for more industrial power supply options and solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It operates efficiently within a temperature range of -25°C to 70°C.
It includes short circuit, over voltage, over current, and over temperature protection.
Yes, it is designed for industrial applications such as process control and factory automation.
Cooling is achieved through free air convection, eliminating the need for fans.
It is certified with CB, CE, cUL, cULus Recognised, FCC, and UL standards.
It is designed for mounting on a standard 35mm DIN rail.
