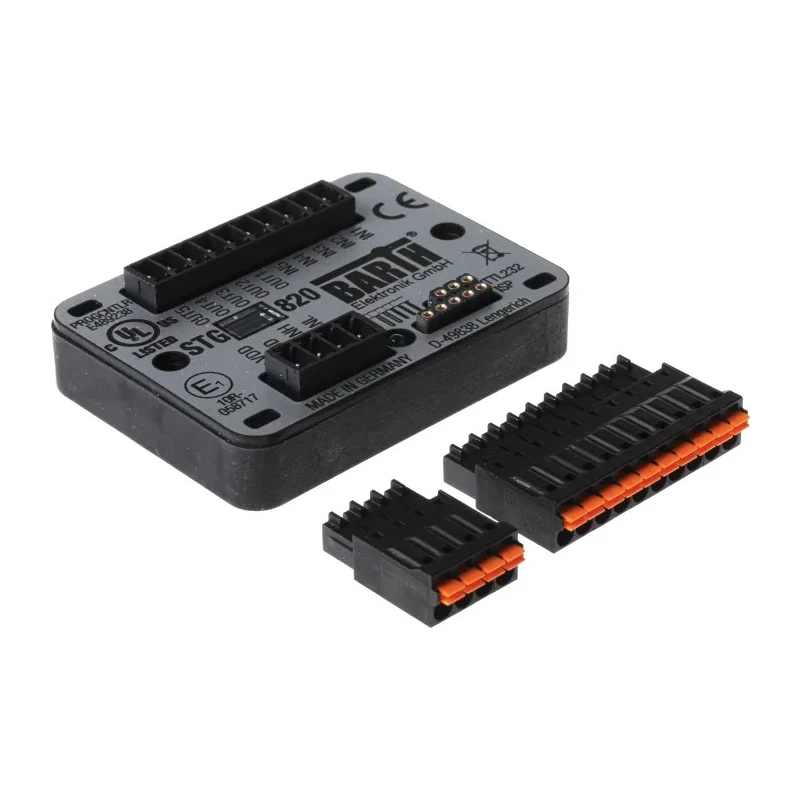

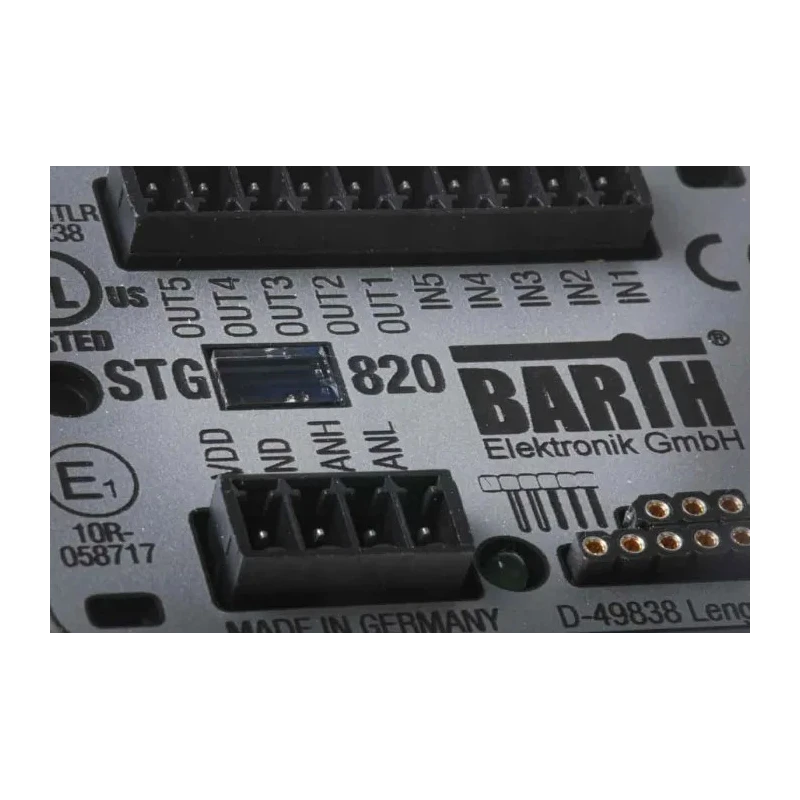

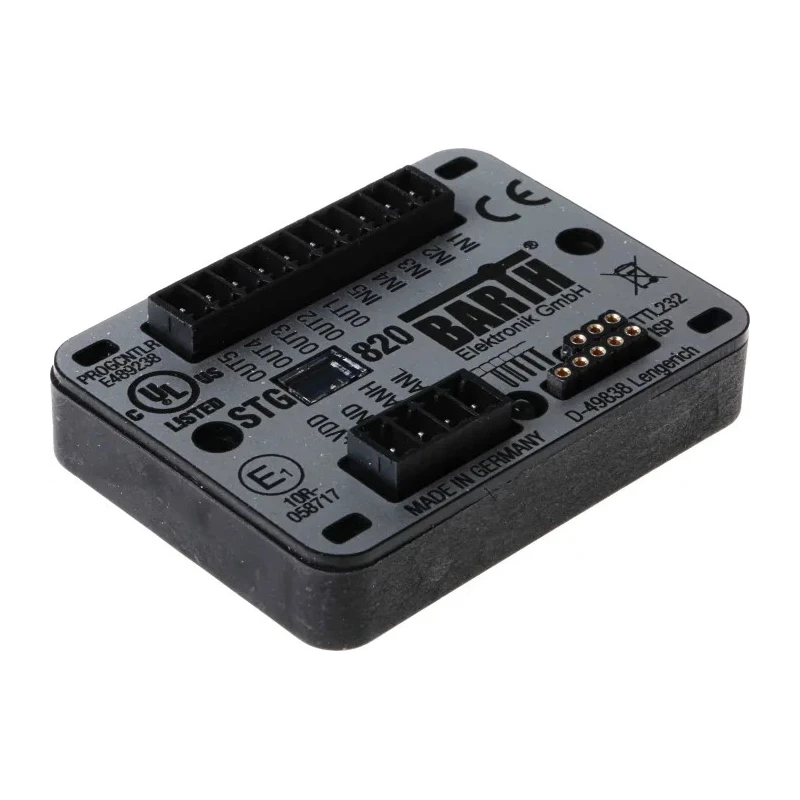

BARTH lococube mini-PLC Series PLC I/O Module, 3 Inputs Analogue, 9 Outputs Digital Solid State Analogue 0850-0820
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | BARTH |
| Length | 60mm |
| Depth | 11mm |
| Width | 45mm |
| Mount Type | Panel Mount |
| Number of inputs | 3 |
| Output type | Digital, Solid State, Analogue |
| Series | lococube mini-PLC |
| Input Type | Analogue |
| Maximum Operating Temperature | 70°C |
| Minimum Operating Temperature | -40°C |
| Number of outputs | 9 |
| Program Capacity | 256kB |
| Supply Voltage | 32, 7V dc |
| Number of Communication Ports | 2 |
| Communication Port Type | CANopen, Computer |
| Programming Language Used | C, miCon-L, Open Source |
Key Features
- Equipped with a powerful 32-bit ARM Cortex core for high performance.
- Supports programming in C, miCon-L, and Open Source languages.
- Operates within a wide voltage range of 7V to 32V DC.
- Includes a rugged, vibration-resistant design suitable for harsh environments.
- Features automotive-qualified CAN2.0A/B/CANopen communication interfaces.
- Battery backup and display included for reliable operation and monitoring.
- Operating temperature range from -40°C to 70°C enables versatile applications.
- Compact dimensions with length 60mm, width 45mm, and depth 11mm for easy panel mounting.
Product Description
BARTH 0850-0820 lococube mini-PLC Series PLC I/O Module is a state-of-the-art industrial automation component featuring 3 analogue inputs and 9 outputs comprising digital, solid state, and analogue output types. It integrates a robust 32-bit ARM Cortex processor core delivering outstanding graphical programming capabilities with minimal current consumption in a compact form factor.
This mini-PLC module is designed with automotive-qualified CAN2.0A/B/CANopen communication protocols, ensuring robust operation in electrically noisy environments and enabling seamless connectivity with multiple network components. The input range spans 0VDC to 30VDC across 3 analogue inputs, complemented by 4 solid-state power outputs rated up to 1.5A, along with 1 PWM power output.
Programmed easily using KEIL Vision software suite or options including C, miCon-L, and open-source languages, it provides 256kB program capacity and two communication ports. Battery backup and integrated display enhance system reliability and user interface capabilities.
Rated to operate between -40°C and 70°C, and featuring vibration resistance with rugged sealing, this panel mount mini-PLC module measures 60mm length, 45mm width, and 11mm depth, making it suitable for space-constrained installations.
Powerful 32-bit ARM Cortex core processor for efficient control. Flexible programming options including open source languages. Wide operating voltage range from 7V to 32V DC. Automotive-qualified CANopen interface for noise-resistant communication.
Multiple output types including digital, solid state, and analogue. Designed for industrial, automotive, maritime, and educational applications. Vibration resistant with rugged sealing for demanding environments. Compact panel mount form factor measuring 60x45x11mm.
Battery backup and display included for enhanced usability. 256kB program memory and two communication ports support complex automation tasks.
This module is suitable for industrial automation systems requiring compact, reliable, and programmable control units. Its noise-resistant communication makes it ideal for automotive and maritime installations, while its open-source programming flexibility aids technical education and prototyping.
Explore more from BARTH products and other PLC modules in the Industrial Automation category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The analogue inputs have a range of 0VDC to 30VDC.
It features a total of 9 outputs, which include digital, solid state, and analogue types.
The mini-PLC operates within a supply voltage range of 7V to 32V DC.
The dimensions are 60mm in length, 45mm in width, and 11mm in depth.
It supports programming in C, miCon-L, and open-source languages.
The maximum operating temperature is 70°C.
It is designed for panel mounting.
It supports automotive-qualified CAN2.0A/B and CANopen communication protocols.
This model has 3 analogue inputs.
It has a program capacity of 256kB.
The minimum operating temperature is -40°C.
It includes 2 communication ports.
