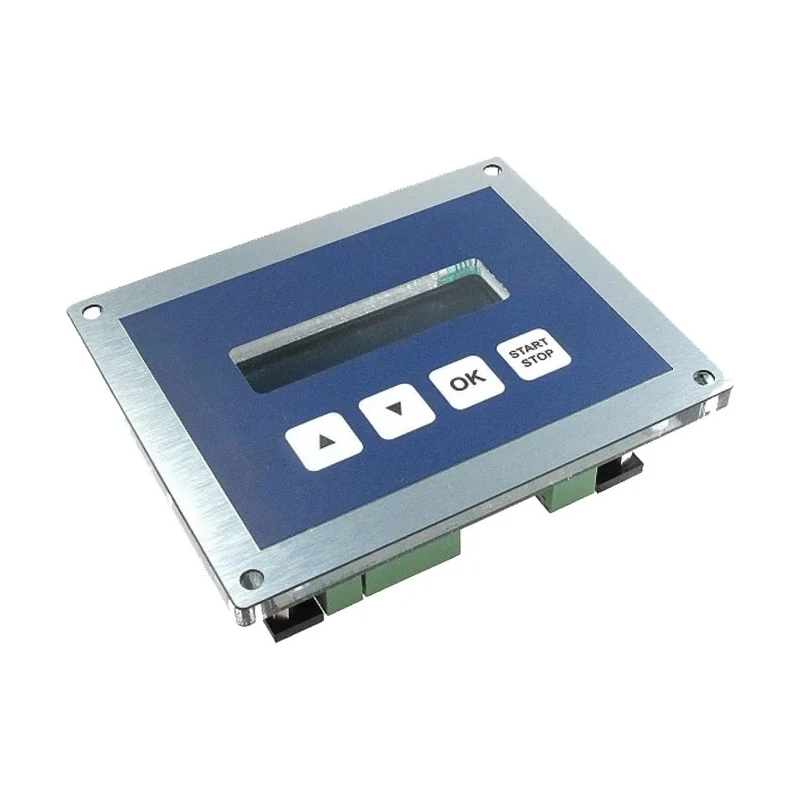

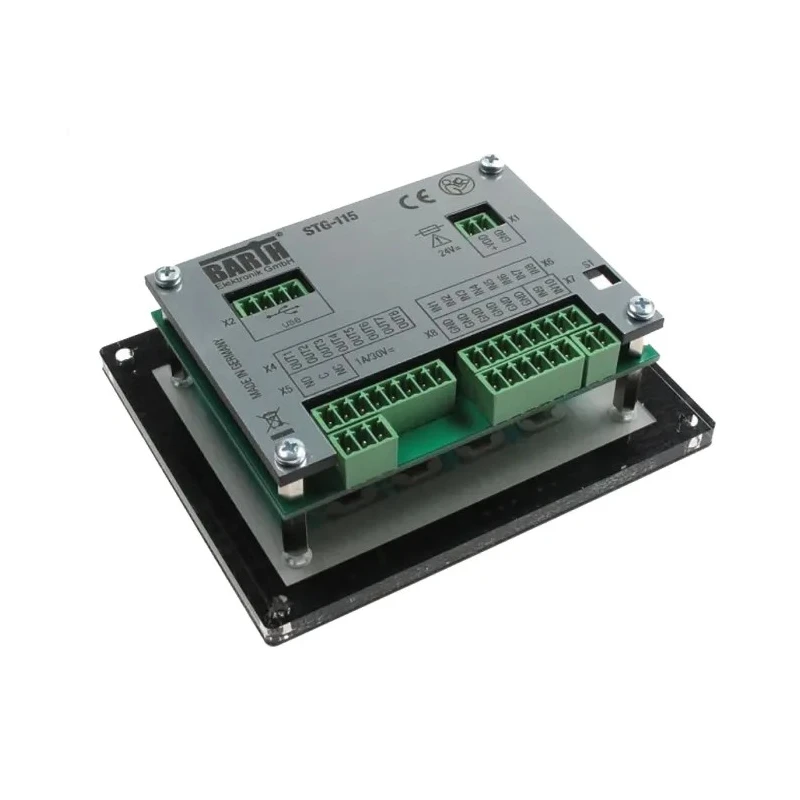

BARTH lococube mini-PLC Series Panel Mount PLC I/O Module 8 Digital and Analogue Inputs 9 Outputs 24V DC 1.5A 0850-0115
Specifications
| Country of Origin | Germany |
|---|---|
| Resolution | 10 bit |
| Brand | BARTH |
| Length | 90mm |
| Depth | 36mm |
| Width | 110mm |
| Mount Type | Panel |
| Number of inputs | 8 |
| Output type | Analogue |
| Series | lococube mini-PLC |
| Output Current | 1.5A |
| Input Type | Digital, Analogue |
| Maximum Operating Temperature | 55°C |
| Minimum Operating Temperature | -10°C |
| Interfaces | USB interface on board |
| Number of outputs | 9 |
| Supply Voltage | 24V dc |
| Number of Communication Ports | 1 |
| Communication Port Type | VK-12, USB |
| Programming Language Used | miCon-L |
| Measurements (LxHxD) | 110 x 90 x 36 mm |
Key Features
- Equipped with 8 overload protected inputs supporting digital and analogue signals.
- 9 outputs including 8 outputs rated at 1.5 A each and 1 relay output rated at 1 A / 30 V DC.
- Compact design with dimensions 110 x 90 x 36 mm suitable for panel mounting.
- Features a 2x16 character blue backlight LCD display and 4 enter keys for easy menu navigation.
- Programmable using intuitive miCon-L graphical software with EEPROM data retention over 40 years.
- Includes USB communication port and spring terminal connections for simple wiring.
- Operates on 24 V DC supply voltage within temperature range -10°C to +55°C.
Product Description
BARTH 0850-0115 lococube mini-PLC Series Panel Mount PLC I/O Module is designed for versatile industrial automation requiring compact and reliable programmable logic control.
This model features 8 digital and analogue inputs accommodating voltages from 0 to 30 V DC, including 2 analogue inputs (0 to 10 V DC) and 2 current loop inputs (4 to 20 mA), with 10-bit resolution A/D converters ensuring accurate signal processing.
The module provides 9 outputs, with 8 overload protected outputs capable of 1.5 A current each, plus a relay output rated at 1 A/30 V DC, enabling control of multiple actuators or subsystems.
A 2x16 character LCD display with blue backlight allows clear status indication and menu navigation via four enter keys. Programming is facilitated by the miCon-L graphical software, available for free, offering intuitive graphical development and long EEPROM data retention exceeding 40 years.
An integrated USB interface and spring terminal connectors ensure easy installation and communication. The device operates reliably in environmental conditions ranging from -10°C to +55°C and meets various industrial standards including ISO 16750-3:2007 and EN61010-1, confirming robust design for industrial, building automation, metering, dispensing, environmental, and show technology applications.
The panel-mount design with shallow depth of 36 mm suits installation in space-constrained control panels. Equipped with 8 digital and analogue inputs supporting 0-30 V DC signals. Includes 2 analogue inputs (0-10 V DC) and 2 current loop inputs (4-20 mA) with 10-bit resolution ADC.
Features 8 overload protected outputs (1.5 A each) and 1 relay output (1 A / 30 V DC). 2x16 blue backlight dot matrix LCD display with programmable backlight and four enter keys. USB onboard interface and panel mounting with shallow 36 mm depth.
Free miCon-L graphical programming software with EEPROM data retention over 40 years. Wide operating temperature range from -10°C to +55°C compliant with multiple industrial standards. Explore other PLC and automation products in the Electronics & Electricals category at EnvMart for comprehensive industrial control solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates on a supply voltage of 24V DC.
It features a total of 8 inputs, which support both digital and analogue signals.
The module has 8 overload protected outputs, each rated at 1.5 A, along with one relay output rated at 1 A/30 V DC.
It operates reliably within a temperature range of -10°C to +55°C.
The programming is facilitated by the miCon-L graphical software, which is available for free.
The dimensions of this model are 110 mm in width, 90 mm in length, and 36 mm in depth.
Yes, it includes one USB communication port for easy installation and communication.
The analogue inputs have a resolution of 10 bits, ensuring accurate signal processing.
It supports both digital and analogue inputs, accommodating voltages from 0 to 30 V DC, including specific current loop inputs.
This unit is designed for panel mounting, making it suitable for installation in control panels.
The country of origin for this model is Germany.
