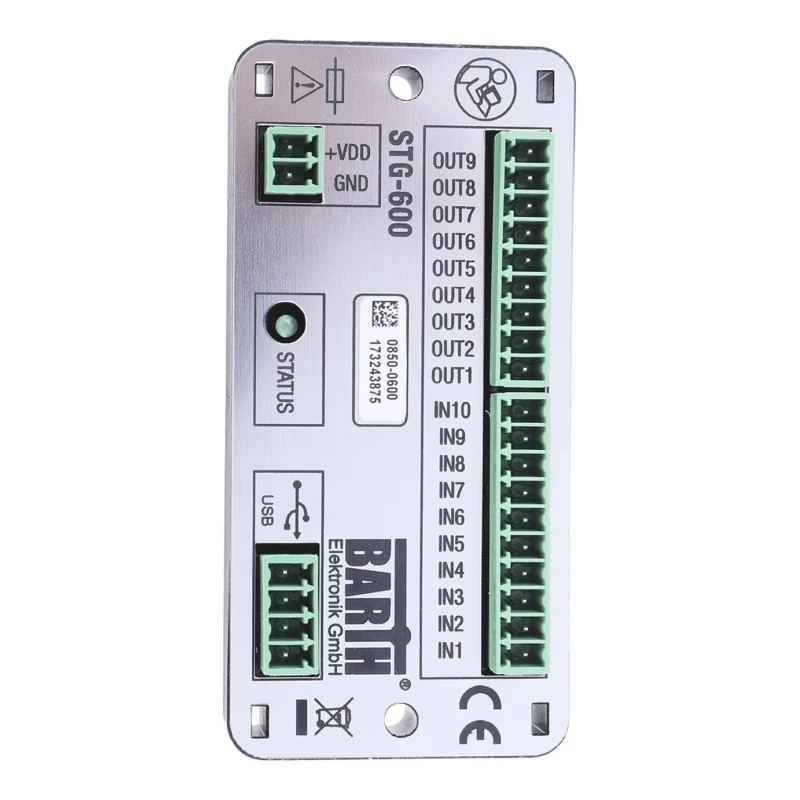

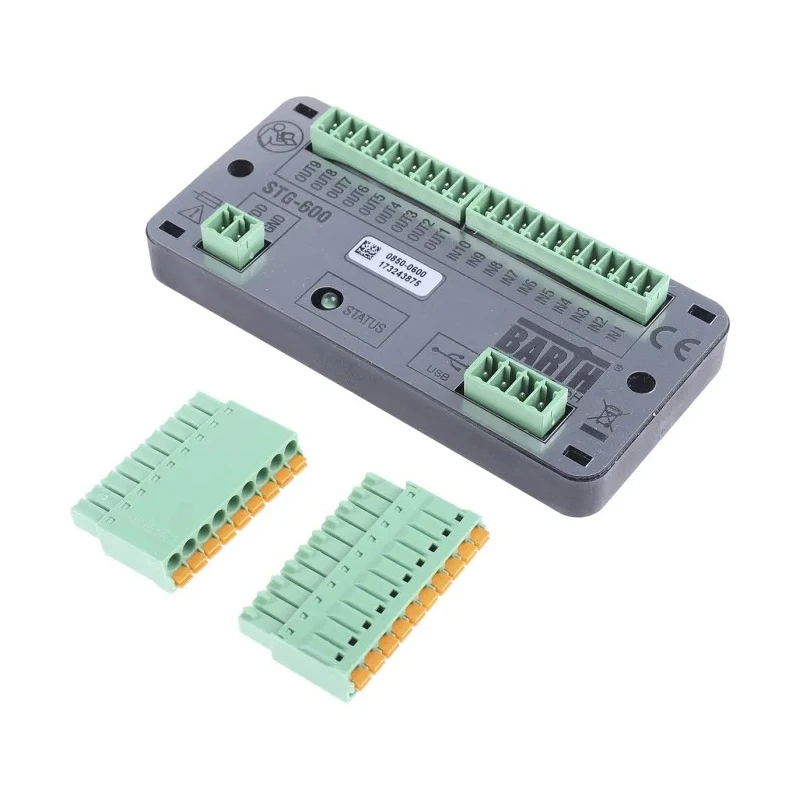

BARTH lococube mini-PLC Series PLC I/O Module 10-Input Analogue Digital Input 8 Outputs MOSFET Output 0660-0600
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | BARTH |
| Length | 93mm |
| Depth | 15mm |
| Width | 45mm |
| Mount Type | Panel |
| Number of inputs | 10 |
| Output type | MOSFET |
| Series | lococube mini-PLC |
| Output Current | 8A |
| Input Type | Analogue, Digital |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -40°C |
| Interfaces | USB connection to the PC |
| Number of outputs | 8 |
| Supply Voltage | 32, 7V dc |
| Standards/Approvals | IEC |
| Number of Communication Ports | 1 |
| Communication Port Type | RS232 |
| Programming Language Used | miCon-L |
Key Features
- Supports 10 inputs consisting of analogue and digital types.
- Equipped with 8 MOSFET outputs for reliable switching.
- Operates within a temperature range of -40°C to 60°C.
- Compact panel mount design with dimensions 93mm x 45mm x 15mm.
- Supports programming via miCon-L graphical software.
- Includes RS232 communication port for PC interfacing.
- Features low power consumption suitable for 7V to 32V dc supply voltage.
- Has battery backup capability for data retention.
Product Description
BARTH 0660-0600 lococube mini-PLC Series PLC I/O Module is a compact, highly integrated programmable logic controller designed for industrial automation systems. With 10 inputs supporting both analogue and digital signals and 8 MOSFET outputs, this module facilitates versatile control tasks in harsh environments.
The device operates reliably under a broad temperature range from -40°C up to 60°C, ensuring functionality in demanding conditions. Its ultra-flat housing with dimensions 93mm length, 45mm width, and 15mm depth allows installation in space-restricted control panels with a panel mount mounting type.
Programming is enhanced with miCon-L graphical language, simplifying complex logic configuration. The integrated RS232 communication port and USB connection facilitate easy connection to PCs for programming and diagnostics.
Designed to meet IEC standards, this logic module features vibration resistance and rugged sealing for industrial, building automation, automotive, maritime, environmental, and light and show technology applications.
Additional features include an 8A output current rating, a display for status indication, and battery backup to retain data during power interruptions. The supply voltage range is broad, from 7V to 32V DC, accommodating various power sources, including battery systems.
Set a new standard in control module integration with BARTH lococube mini-PLC 0660-0600, combining compact size, robust performance, and flexible programming. Supports 10 inputs consisting of analogue and digital types. Equipped with 8 MOSFET outputs for reliable switching.
Operates within a temperature range of -40°C to 60°C. Compact panel mount design with dimensions 93mm x 45mm x 15mm. Supports programming via miCon-L graphical software. Includes RS232 communication port for PC interfacing.
Features low power consumption suitable for 7V to 32V dc supply voltage. Has battery backup capability for data retention. IEC standards compliant for industrial applications. Manufactured in Germany with robust vibration resistance and rugged sealing.
Explore the extensive range of PLC I/O Modules and related industrial automation products at EnvMart for efficient process controls.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports 10 inputs consisting of both analogue and digital types, allowing for versatile signal processing.
It is equipped with 8 MOSFET outputs, which are designed for reliable switching in various applications.
The device operates within a temperature range of -40°C to 60°C, ensuring functionality in harsh environments.
This unit has a compact design with dimensions of 93mm in length, 45mm in width, and 15mm in depth, suitable for space-restricted installations.
Programming is facilitated through the miCon-L graphical software, which simplifies the configuration of complex logic tasks.
It operates with a supply voltage range of 7V to 32V DC, accommodating various power sources including battery systems.
Yes, it includes an RS232 communication port for easy interfacing with PCs, as well as a USB connection.
The MOSFET outputs can handle an output current rating of up to 8A, making it suitable for various control tasks.
Yes, it is designed to meet IEC standards, ensuring it is suitable for industrial applications.
This model is designed for panel mounting, allowing for easy integration into control panels.
It is manufactured in Germany, reflecting a commitment to quality and engineering standards.
This unit includes battery backup capability, which helps retain data during power outages, ensuring reliability in operation.
