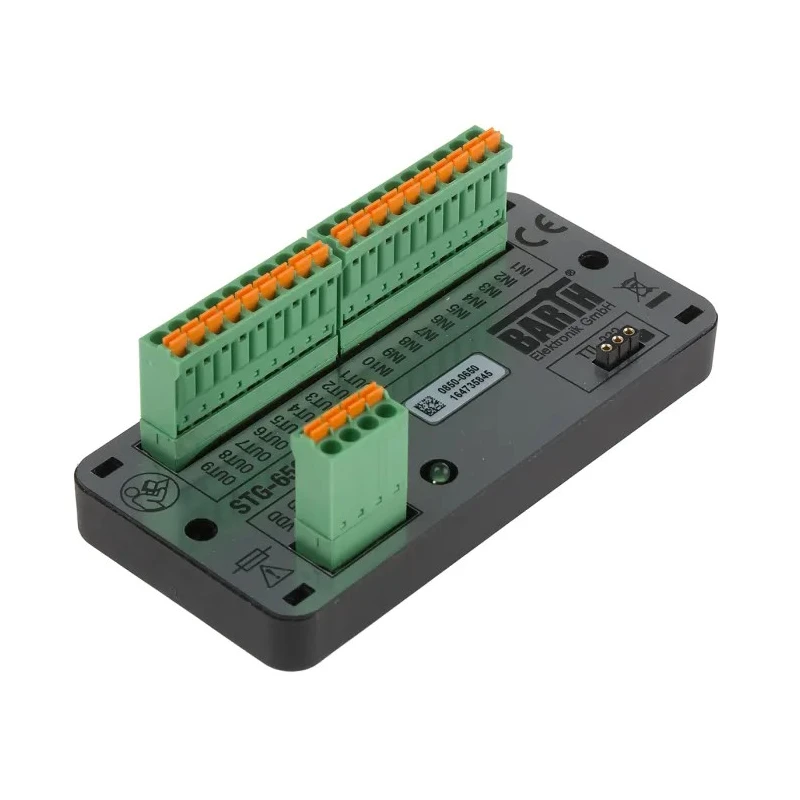

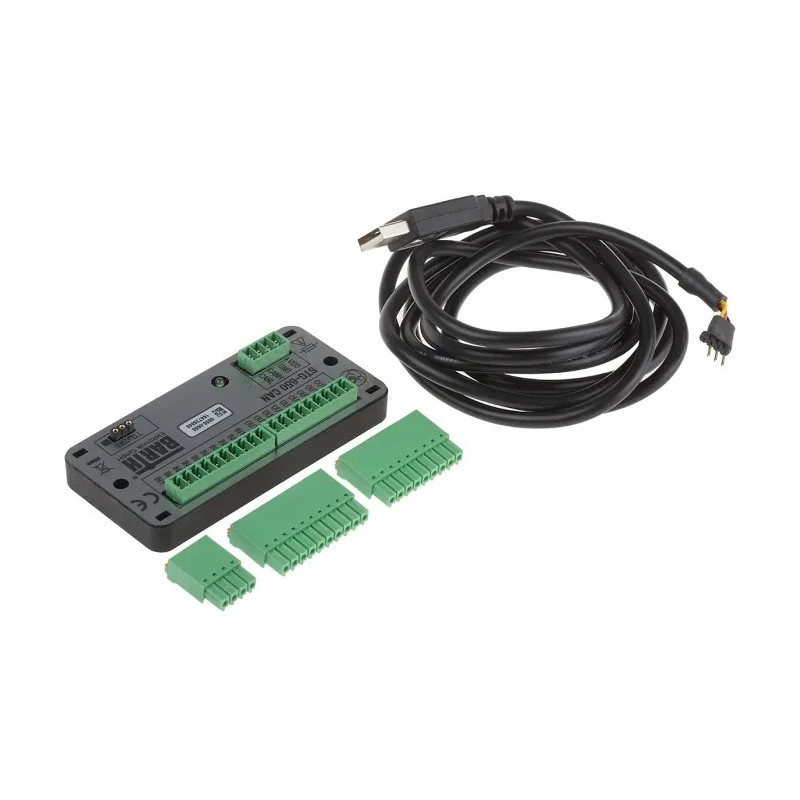

BARTH lococube mini-PLC Series Programmable Logic Controller I/O Module 10-Input Analogue Digital Input 9 Outputs 0660-0650
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | BARTH |
| Length | 93mm |
| Depth | 15mm |
| Width | 45mm |
| Mount Type | Panel |
| Number of inputs | 10 |
| Output type | Digital |
| Series | lococube mini-PLC |
| Output Current | 1.5A |
| Input Type | Analogue, Digital |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -40°C |
| Interfaces | USB connection to PC |
| Number of outputs | 9 |
| Supply Voltage | 32, 7V dc |
| Number of Communication Ports | 3 |
| Communication Port Type | CAN, RS232 |
| Programming Language Used | miCon-L |
Key Features
- The module supports both analogue and digital inputs with a total of 10 input channels.
- It provides 9 digital output channels for versatile control applications.
- Operating temperature range of -40°C to 60°C makes it suitable for harsh environments.
- Equipped with CAN and RS232 communication ports for network connectivity.
- Panel mount type with ultra-flat housing design only 15mm deep and 10mm high.
- Low power consumption and wide supply voltage range from 7VDC to 32VDC enable battery-powered operation.
- Programmable using intuitive graphical miCon-L software without complex programming language.
- Built-in battery backup and status LEDs provide reliable operation and diagnostics.
Product Description
BARTH 0660-0650 lococube mini-PLC Series Programmable Logic Controller I/O Module is a high integration logic module designed for industrial automation, building automation, maritime and automotive technology, and environmental applications. This compact panel mount module features 10 inputs including 8 analogue inputs varying from 0VDC to 30VDC and 2 digital inputs capable of up to 10kHz frequency, along with 9 digital outputs comprising eight power outputs rated at 1.5A and one PWM power output.
The unit's ultra-flat housing with a depth of 15 mm and height of 10 mm makes it ideal for applications with tight spatial constraints. It supports a broad operating temperature of -40°C to 60°C for use in diverse environments. The module incorporates a CAN bus interface and RS232 communication ports, enabling integration with various network components and devices. Power supply is compatible with a wide voltage range from 7VDC to 32VDC, allowing for 12V or 24V battery-powered system usage.
Programming flexibility is provided by the miCon-L graphical software which does not require advanced programming skills. The device also features reliable solid-state outputs, programmable status LEDs, and a battery backup system to ensure continuous operation even under power interruptions. Its rugged design offers vibration resistance and industrial-grade sealing to withstand demanding ambient conditions.
The module supports analogue and digital input signals for diverse sensing and control tasks. Includes a user-friendly programming environment for efficient application development. Robust mounting mechanism suitable for panel installation in industrial settings.
Certified to numerous industrial standards ensuring compliance and quality. Low current consumption enhances energy efficiency and prolongs battery life.
This PLC I/O Module is perfectly suited for industrial, laboratory, building, maritime, automotive, and environmental automation solutions. Its high integration and capacity provide a reliable control platform in space-limited scenarios. Explore the full range of BARTH Programmable Logic Controllers and related automation devices on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features a total of 10 input channels, including 8 analogue inputs that can handle voltages from 0VDC to 30VDC and 2 digital inputs with a frequency capability of up to 10kHz.
It provides 9 digital output channels, comprising eight power outputs rated at 1.5A and one PWM power output for versatile control applications.
The operating temperature range is from -40°C to 60°C, making it suitable for use in harsh environments.
It is equipped with CAN and RS232 communication ports, allowing for integration with various network components and devices.
The unit operates within a wide supply voltage range of 7VDC to 32VDC, enabling compatibility with 12V or 24V battery-powered systems.
Programming is facilitated through the intuitive miCon-L graphical software, which does not require advanced programming skills.
The dimensions are 93mm in length, 45mm in width, and 15mm in depth, making it compact for space-limited applications.
This unit supports a total of 9 digital outputs, providing versatile control options for various applications.
It features a panel mount type design, which is suitable for installation in industrial settings.
The BARTH lococube mini-PLC is manufactured in Germany.
It accepts both analogue and digital input signals, allowing for diverse sensing and control tasks.
Yes, it includes a built-in battery backup system and status LEDs to ensure reliable operation and diagnostics even during power interruptions.
