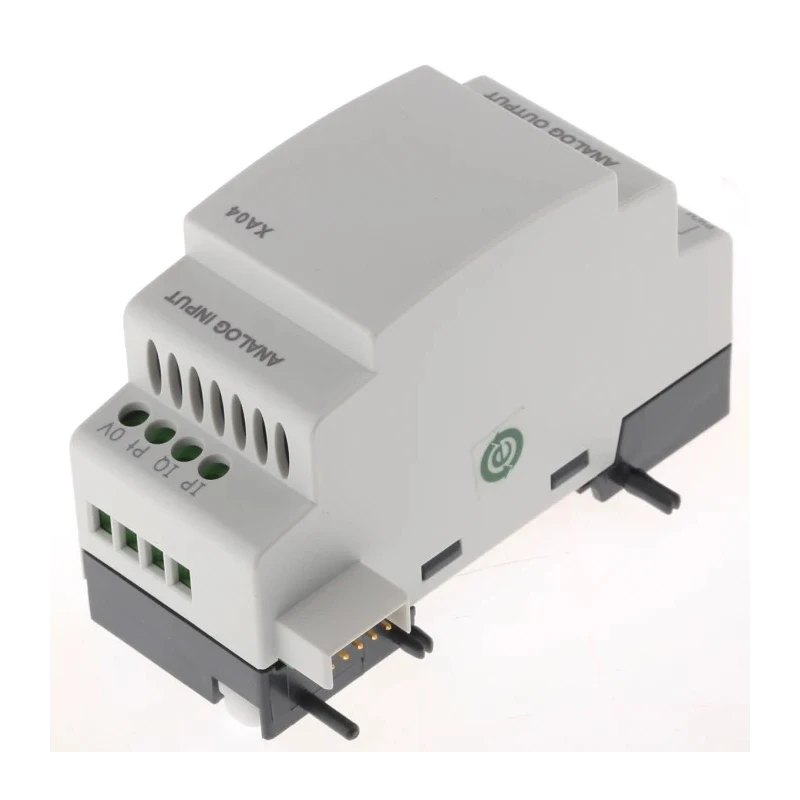

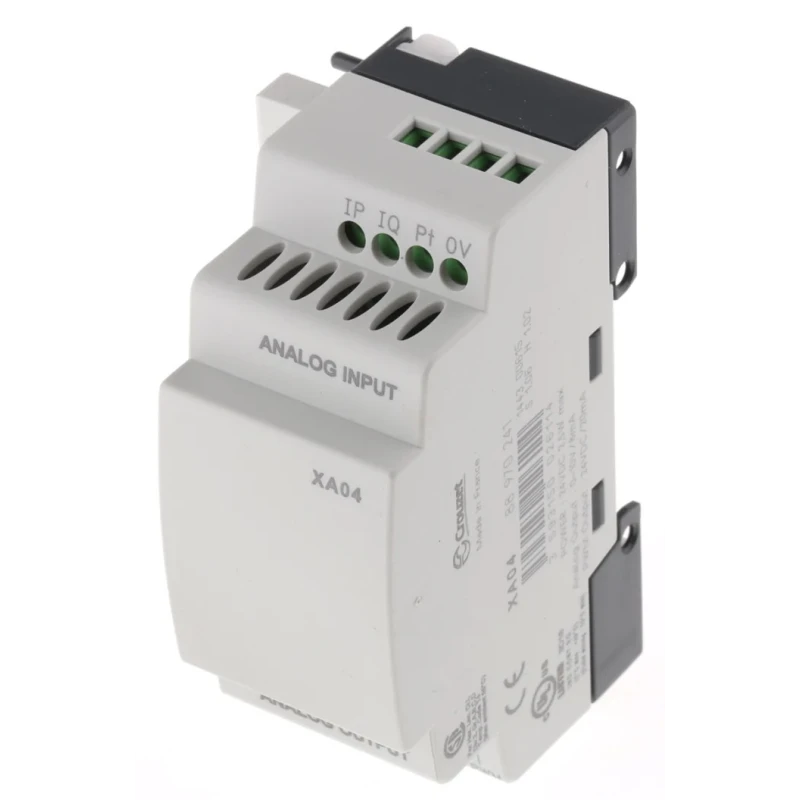

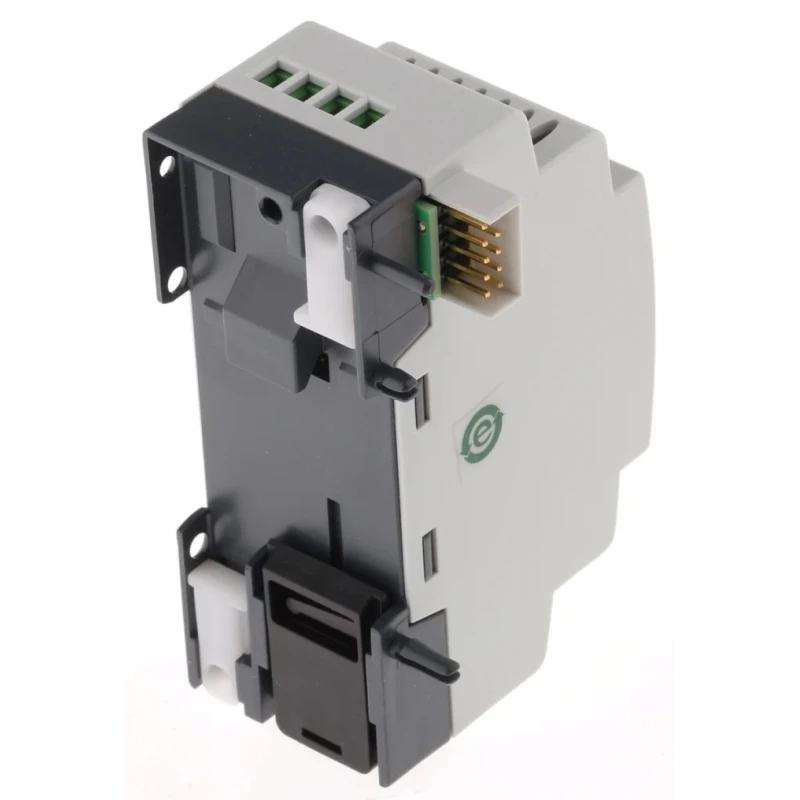

Crouzet Millenium 3 Series I/O Module, 2-Input Analogue PT100 Input, 2 Outputs Analogue Output 24V DC 20mA 88970241

Crouzet 88970241 Millenium 3 Series I/O Module is a high-performance industrial logic module designed for precise analogue input and output control including PT100 temperature sensor input. Operating at 24 V DC with 20 mA output current, it provides versatile control interfaces ideal for automation systems.

Featuring 2 analogue inputs with one dedicated PT100 sensor input and 2 analogue outputs, this DIN rail mountable module supports screw termination for reliable wiring. The large memory capacity makes it suitable for complex applications requiring extensive program storage.

The module incorporates battery backup ensuring program retention during power interruptions, and an advanced 18-character, 4-line display with scrolling text and bar graph enhances on-site diagnostics and monitoring.

Communication is supported through serial and USB ports allowing easy integration and programming flexibility with ladder diagram and function block diagram languages. The device operates reliably within a temperature range of -20°C to 55°C, making it suitable for demanding industrial environments.

Typical applications include automatic washing equipment, agricultural machinery control, air conditioning and heating system management, and general process automation in manufacturing industries. The robust design and international approvals such as CE, UL, and CSA certify safety and quality compliance.

Supports PT100 input for precise temperature measurement. Equipped with 2 analogue inputs and 2 analogue outputs for versatile control. Operates at 24 V DC supply voltage with 20 mA output current. DIN rail mounting type with screw termination for secure installation.

Includes battery backup and an 18-character, 4-line display with bar graph functionality. Provides serial and USB communication ports for flexible connectivity. Programmable via ladder diagram or function block diagram languages.

Operating temperature range from -20°C to +55°C for robust environmental performance. Compact dimensions of 107.6 mm length, 35.5 mm width, and 70 mm depth. Designed and manufactured in France with CE, UL, CSA approvals ensuring compliance and safety.
