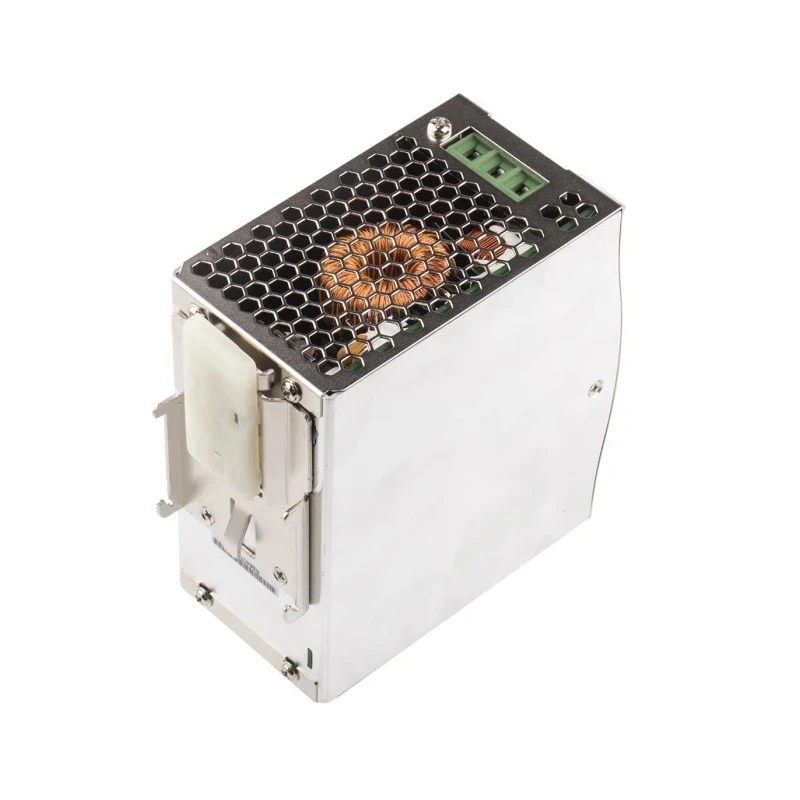

Mean Well WDR Switched Mode DIN Rail Power Supply 240W, 48 V, 5 A, 180-550 V AC Input WDR-240-48
Specifications
| Country of Origin | India |
|---|---|
| Brand | Mean Well |
| Power | 240W |
| Efficiency | 91% |
| Height | 125mm |
| Model | WDR-240-48 |
| Depth | 114mm |
| Width | 63mm |
| Series | WDR |
| Output Current | 5A |
| Maximum Operating Temperature | 70°C |
| Sub Type | Switched Mode |
| Minimum Operating Temperature | -30°C |
| Number of outputs | 1 |
| Maximum Input Voltage | 550V ac |
| Standards/Approvals | RoHS, TUV EN 609501, UL |
| Maximum Output Voltage | 55V dc |
| Minimum Input Voltage | 180V ac |
Key Features
- Provides high efficiency of 91% with low power dissipation.
- Built-in active PFC circuit compliant to EN61000-3-2 standards.
- Suitable for industrial DIN rail mounting with slim form factor.
- Protection features include short circuit, overload, over voltage and over temperature.
- Cooling is achieved by free air convection without need for fan.
- Wide operating temperature range from -30°C to 70°C.
- Safety and approvals include RoHS, TUV EN 60950-1, and UL certifications.
- Equipped with built-in DC OK relay contact for status monitoring.
Product Description
Mean Well WDR-240-48 Switched Mode DIN Rail Power Supply is a robust and efficient power source designed for industrial and automation applications, providing 240W output at 48 V DC and 5 A current. It supports a wide AC input voltage range from 180 V to 550 V, making it suitable for diverse power environments. The product is part of the WDR series, known for its slim design and compatibility with TS-35/7.5 or 15 industrial mounting rails.
This power supply includes a built-in active power factor correction (PFC) circuit, which complies with EN61000-3-2 standards, ensuring efficient power usage and reduced electrical noise. Its high efficiency of 91% reduces energy consumption and heat dissipation, promoting a longer device lifespan.
Key protections integrated within the unit cover short circuit, overload, over voltage, and over temperature conditions, safeguarding connected equipment. Cooling is managed via free air convection, eliminating the need for noisy cooling fans and enhancing reliability.
The device operates safely over a broad temperature range from -30°C to 70°C, which suits it for harsh industrial and building automation environments. It holds multiple certifications including RoHS compliance, TUV EN 60950-1 safety approval, and UL endorsement, confirming its adherence to international quality and safety standards.
The power supply also features a built-in DC OK relay contact, enabling clear status signaling for system monitoring. It is particularly suited for powering sensors, motors, actuators, solenoids, relays, and other DC-operated industrial devices.
High efficiency at 91% reduces energy consumption. Wide AC input range from 180 to 550 V supports flexible installation. Integrated protections prevent damage from electrical faults. Slim casing for easy DIN rail mounting in constrained spaces.
Robust operating temperature range for varied environments. Convection cooling avoids mechanical failures due to fans. Compliance with EN61000-3-2 and other certifications ensures quality. DC OK relay facilitates dependable power status monitoring.
This DIN Rail Power Supply is ideal for industrial, manufacturing, HVAC, and building automation applications requiring reliable DC power conversion with compact design and advanced protection features. Explore other Mean Well power solutions on EnvMart for comprehensive electrical component needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model provides an output power of 240W at a voltage of 48V DC with a maximum output current of 5A.
It has an efficiency rating of 91%, which helps reduce energy consumption and heat dissipation.
The power supply supports a wide AC input voltage range from 180V to 550V.
The dimensions of this unit are 125mm in height, 114mm in depth, and 63mm in width.
It operates safely over a broad temperature range from -30°C to 70°C, suitable for various environments.
It includes protection features for short circuit, overload, over voltage, and over temperature conditions.
Cooling is managed through free air convection, eliminating the need for cooling fans.
This unit is suitable for industrial DIN rail mounting and is compatible with TS-35/7.5 or 15 mounting rails.
Yes, it is equipped with a built-in DC OK relay contact for status monitoring of the power supply.
The WDR-240-48 is manufactured in India.
