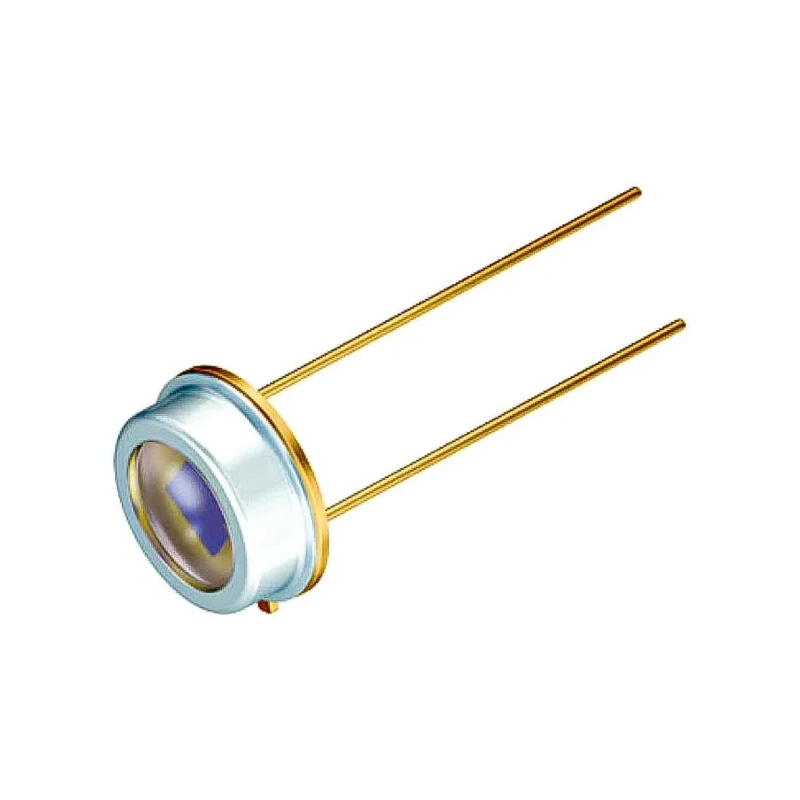

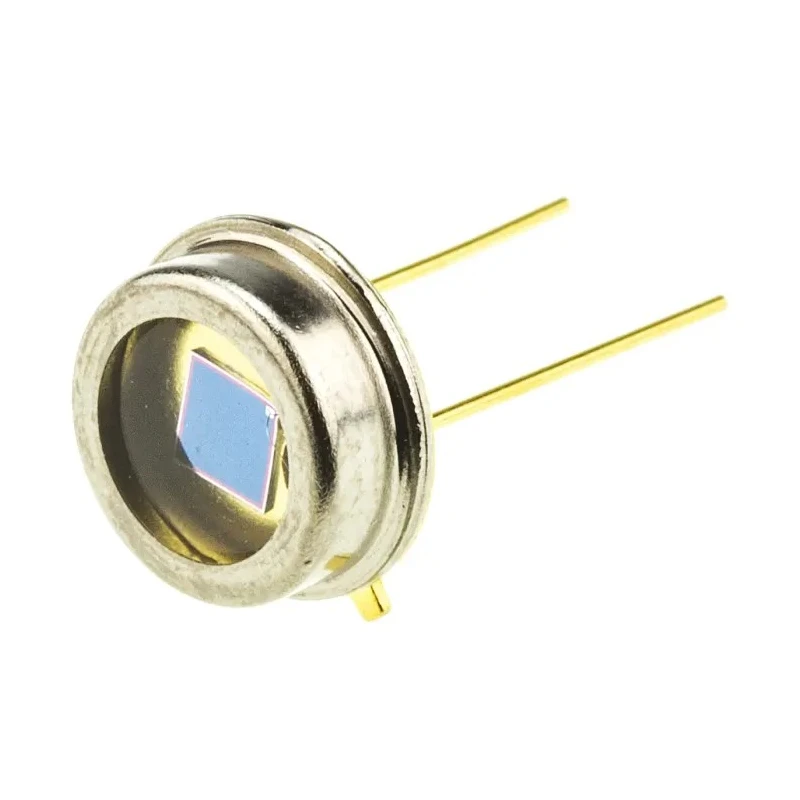

ams OSRAM Visible Light Infrared Photodiode, 55° Angle of Half Sensitivity, Through Hole TO-5 Package BPX 61

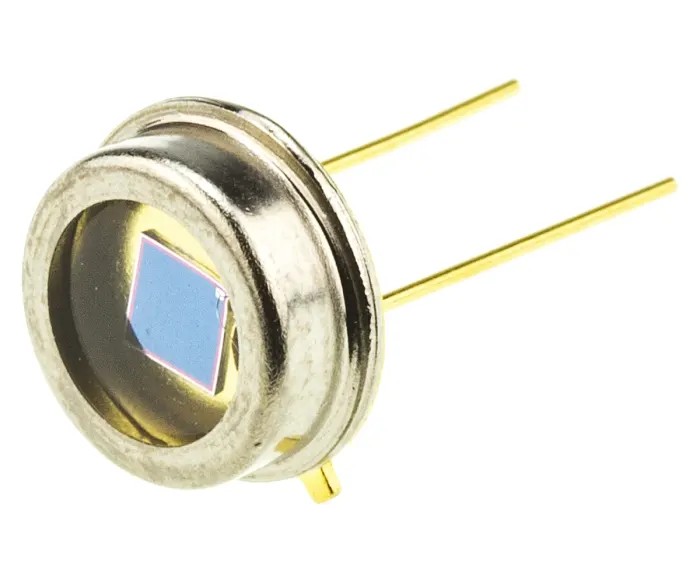

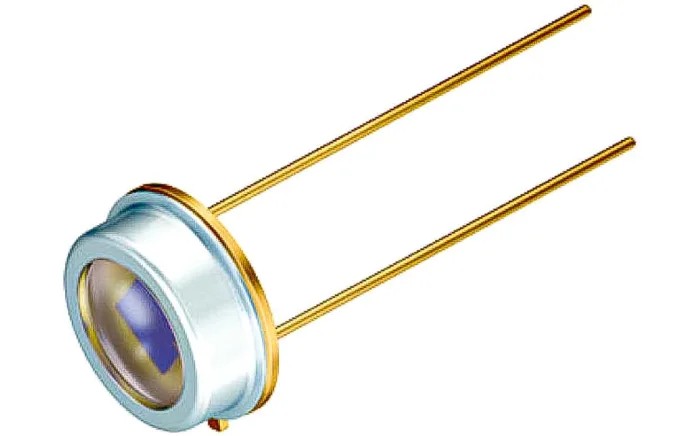

The ams OSRAM BPX 61 is a silicon PIN photodiode enclosed in a hermetically sealed TO-5 metal can package, ensuring long-term reliability and protection against environmental factors. It exhibits high sensitivity to visible and infrared light wavelengths ranging from 400 nm to 1100 nm, peaking at 850 nm, making it well-suited for applications requiring detection of both visible and near-infrared light.

This photodiode supports through-hole PCB mounting with two pins, simplifying installation. Its compact dimensions (length 9.5 mm, width 9.5 mm, height 3.7 mm) allow integration into compact systems.

Performance characteristics include a 55° angle of half sensitivity, fast response times with typical rise and fall times of 20 ns each, and a breakdown voltage rating of 16 V. The device operates reliably within a temperature range from -40°C to 100°C, enabling use in diverse industrial and commercial environments.

Key features such as low dark current (2 nA) and forward polarity allow high precision in photodetection. Its open circuit voltage of 330 mV and short circuit current of 25 μA further ensure sensitivity and stability in signal detection. The device is RoHS compliant, supporting environmentally responsible production and usage.

The BPX 61 photodiode is ideal for use in industrial electronics, photointerrupter applications, infrared remote controls, and circuits that require precise light sensing and switching behavior. The hermetically sealed metal can package aids in extending operational life and performance consistency.

The device features a TO-5 (TO-39 equivalent) hermetically sealed metal can package. Suitable for applications involving visible and infrared light detection. Operates efficiently in a temperature range from -40°C to 100°C.

Excellent fast switching performance with typical 20 ns rise and fall times. Low dark current and stable electrical parameters enhance detection accuracy. Compliance with RoHS standards ensures environmental safety. Explore more electronic components and photodiode products in the Photodiode category on EnvMart for industrial, laboratory, manufacturing, and automation applications.
