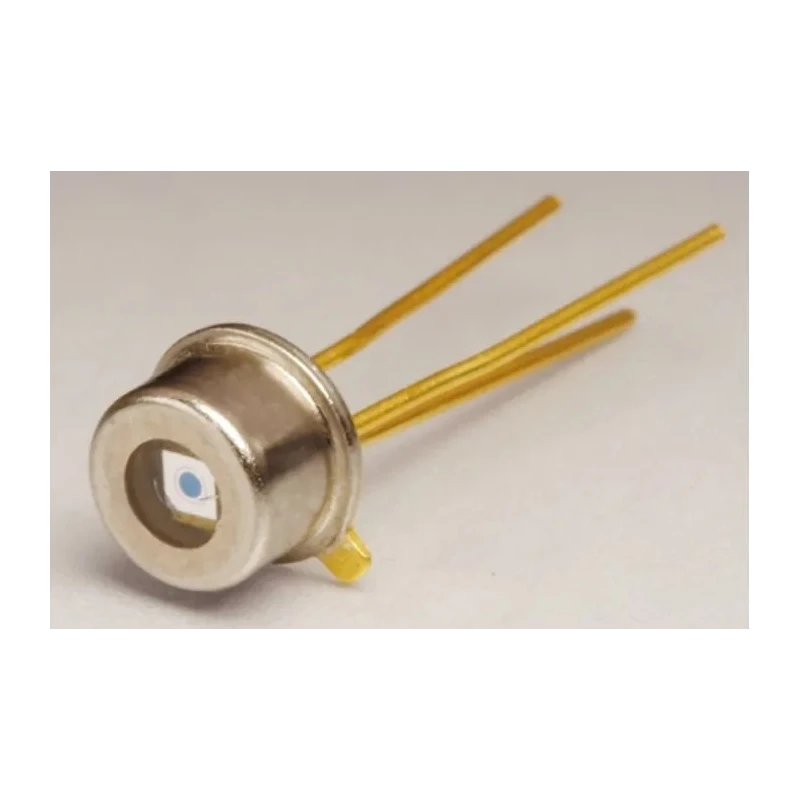

OSI Optoelectronics Infrared Photodiode, Through Hole TO-46 Package, 900nm to 1700nm Wavelength, 65 ° Angle FCI-InGaAs-120
Specifications
| Country of Origin | United States |
|---|---|
| Diameter | 5.4mm |
| Brand | OSI Optoelectronics |
| Height | 3.75mm |
| Length | 2.54mm |
| Model | FCI-InGaAs-120 |
| Packaging | Tape & Reel |
| Width | 2.54mm |
| Mount Type | Through Hole |
| Series | FCI-InGaAS |
| Maximum Operating Temperature | 85°C |
| Package Type | TO-46 |
| Minimum Operating Temperature | -25°C |
| Polarity | Forward |
| Interfaces | Ethernet/Fiber Channel |
| Dark Current | 0.5nA |
| Standards/Approvals | RoHS |
| Number of Pins | 3 |
| Typical Fall Time | 0.3ns |
| Wavelength of Peak Sensitivity | 1700nm |
| Spectrums Detected | Infrared |
| Breakdown Voltage | 30V |
| Minimum Wavelength Detected | 900nm |
| Maximum Wavelength Detected | 1700nm |
| Angle of Half Sensitivity | 65 ° |
Key Features
- Equipped with a 3-pin through hole mount TO-46 package for reliable installation.
- Detects infrared wavelengths, peaking at 1700nm for specialized applications.
- Operates efficiently from -25°C to 85°C for varied environmental conditions.
- Features low dark current of 0.5nA for high precision signal detection.
- High-speed response with typical rise and fall times of 0.3ns.
- RoHS compliant ensuring eco-friendly construction.
- Ideal for high-speed optical communications and instrumentation projects.
- Designed with a forward polarity and 30V breakdown voltage for stable operation.
Product Description
OSI Optoelectronics FCI-InGaAs-120 is a high-speed infrared photodiode designed for advanced optical sensing applications. This photodiode features a through hole TO-46 package with a 3-pin mount, offering a compact size with a diameter of 5.4mm and dimensions of 2.54mm by 3.75mm. Its spectral sensitivity ranges from 900nm minimum wavelength to 1700nm peak wavelength, making it suitable for infrared detection within this band.
Operating in temperatures from -25°C to 85°C, the photodiode maintains low dark current at 0.5nA, ensuring low noise and high responsiveness. Typical rise and fall times of 0.3ns enable rapid signal processing, critical for telecommunications and instrumentation use cases. The device is RoHS compliant, meeting environmental safety standards.
This product is particularly suited for high-speed optical communications such as Gigabit Ethernet and Fiber Channel, SONET/SDH, and ATM systems, as well as diode laser monitoring and other instrumentation applications.
The photodiode's 65 ° angle of half sensitivity ensures efficient detection within its optical field. It features a forward polarity design and a breakdown voltage rating of 30V for robust performance. Packaging is supplied on tape and reel for ease of automated assembly.
Equipped with TO-46 package and through hole mount. Detects infrared light from 900nm to 1700nm wavelengths. Fast response times of 0.3ns rise and fall. Low dark current of 0.5nA enhances signal quality. RoHS compliance ensures environmental safety.
Suitable for optical communications and instrumentation. Forward polarity with 30V breakdown voltage. Compact dimensions: 2.54mm width, 3.75mm height, 5.4mm diameter. Manufactured in the United States. Explore other Photodiodes and optoelectronic components on EnvMart to find the perfect solutions for your industrial and laboratory needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This photodiode detects infrared wavelengths from a minimum of 900nm to a peak sensitivity at 1700nm.
The TO-46 package has a diameter of 5.4mm, with a length of 2.54mm and a height of 3.75mm.
The maximum operating temperature for this photodiode is 85°C.
It features a low dark current of 0.5nA, which helps in maintaining high precision signal detection.
This model uses a through hole mounting type, which is suitable for reliable installation.
The breakdown voltage for this photodiode is rated at 30V.
This photodiode has typical rise and fall times of 0.3ns, enabling high-speed response.
Yes, this photodiode is RoHS compliant, ensuring it meets environmental safety standards.
This photodiode is particularly suited for high-speed optical communications such as Gigabit Ethernet and instrumentation applications.
The angle of half sensitivity for this model is 65 °, allowing efficient detection within its optical field.
The photodiode is packaged on tape and reel, facilitating ease of automated assembly.
This model is compatible with Ethernet and Fiber Channel interfaces, making it versatile for various applications.
