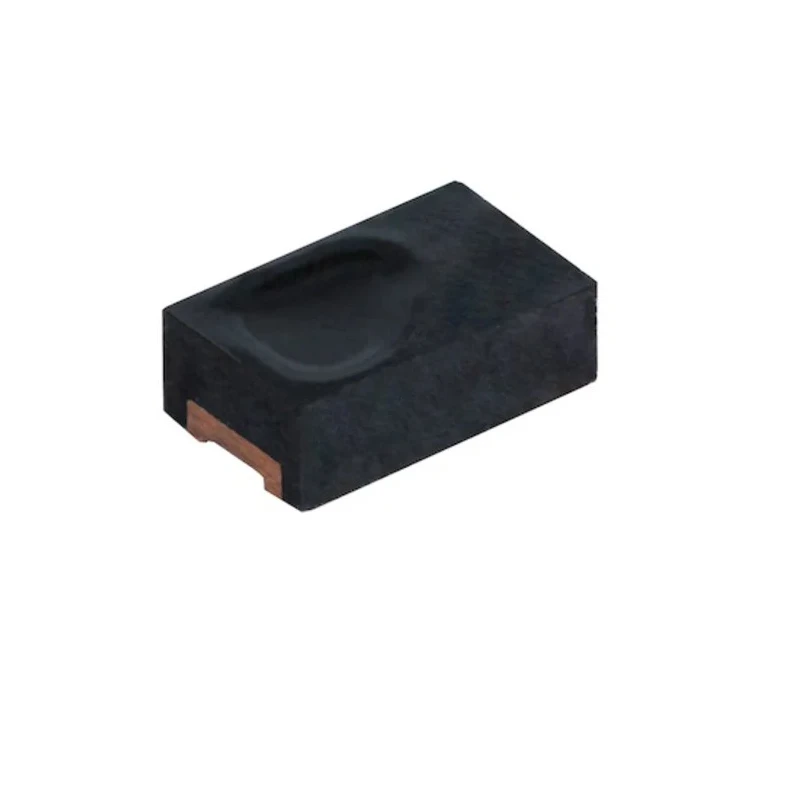

Vishay Photodiode 740 nm to 1040 nm, Surface Mount, ±55°, 0805 Package VEMD4110X01

The Vishay VEMD4110X01 Photodiode is a silicon PIN device engineered for high-speed infrared detection. Supporting a spectral response from 740 nm to 1040 nm, it is ideal for applications such as optical sensing, remote control systems, and infrared data transmission in industrial and electronic systems.

This photodiode features a miniature surface mount package (0805), making it suitable for space-constrained PCB layouts and automated assembly processes. Its compact dimensions - 2 mm length, 1.25 mm width, and 0.7 mm height - ensure seamless integration within electronic designs. The ±55° angle of half sensitivity enables broad signal reception, allowing for effective detection even in wide area coverage installations.

High-speed operation is achieved with typical rise and fall times of 100 nanoseconds, providing responsive detection capabilities in communication and control circuits. The device is reliable across a wide operating temperature range from -40°C to +110°C, maintaining performance in demanding environments including automotive and industrial applications.

Technical highlights include a breakdown voltage of 20 V, open circuit voltage of 350 mV, and a short circuit current of 2.2 μA. The photodiode features a forward polarity and is not amplified, ensuring simple interface with standard electronic circuitry. RoHS compliance and automotive AEC-Q101 standard support make this part fully suitable for regulated markets.

A daylight blocking filter is integrated and matched to IR emitters operating at wavelengths from 830 nm to 950 nm, increasing selectivity and reducing ambient light interference. The device's radiant sensitive area of 0.42 mm2 enables high sensitivity while the tape and reel packaging supports high-volume automated manufacturing. Applications include industrial equipment controls, automotive sensors, remote receivers, and consumer devices.

Wide spectral response from 740 nm to 1040 nm for versatile infrared detection applications. Compact 0805 surface mount package suitable for modern PCB designs. ±55° angle of half sensitivity enables broad reception range.

High-speed operation with typical rise and fall times of 100 ns. Reliable performance across -40°C to +110°C operating temperatures. RoHS compliant with daylight blocking filter matched to IR emitters. Low short circuit current of 2.2 μA and breakdown voltage of 20 V.

Ideal for industrial automation, electronic instrumentation, automotive sensing, and commercial electronics. Discover more Vishay optoelectronic components in the Photodiode category on EnvMart.
