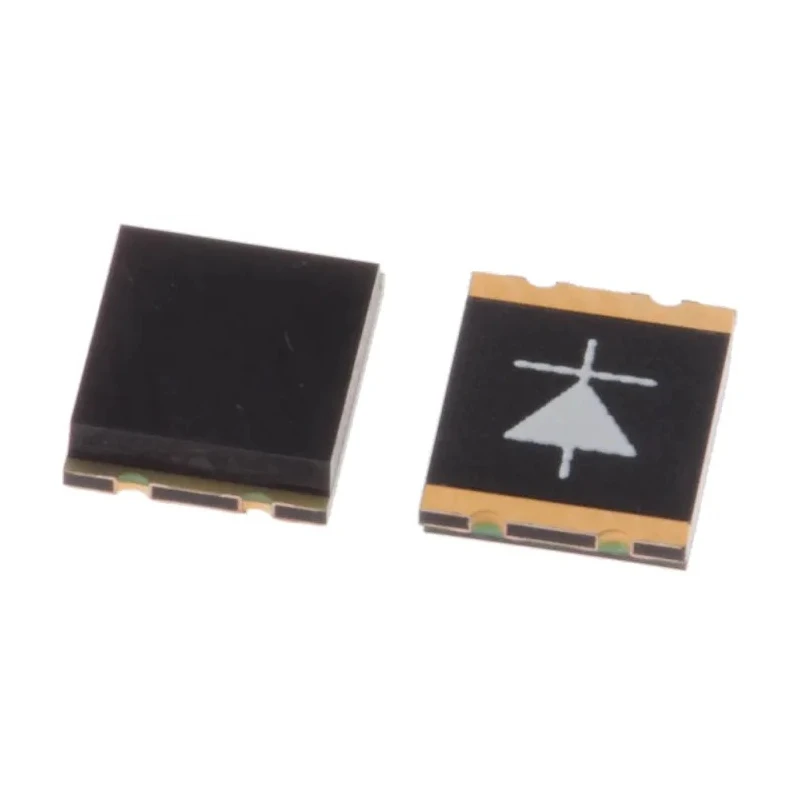

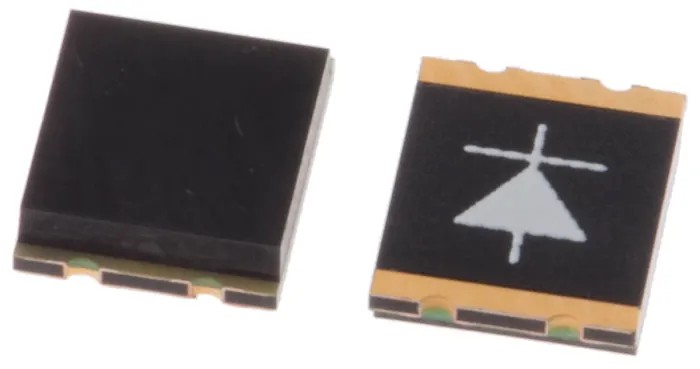

Vishay Infrared Photodiode, Surface Mount, Top View, ±65° Sensitivity Angle, 4 Pins, 5 x 4.24 x 1.12 mm TEMD5110X01
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Dimensions | 5 x 4.25 x 1.12 |
| Height | 1.12mm |
| Length | 5mm |
| Model | TEMD5110X01 |
| Packaging | Tape & Reel |
| Width | 4.24mm |
| Mount Type | Surface |
| Series | TEMD |
| Short Circuit Current | 50μA |
| Maximum Operating Temperature | 100°C |
| Package Type | Top View |
| Minimum Operating Temperature | -40°C |
| Polarity | Forward |
| Open Circuit Voltage | 350mV |
| Standards/Approvals | WEEE 2002/96/EC, RoHS Directive 2002/95/EC |
| Number of Pins | 4 |
| Typical Fall Time | 100ns |
| Automotive Standard | AEC-Q101 |
| Wavelength of Peak Sensitivity | 940nm |
| Spectrums Detected | Infrared |
| Breakdown Voltage | 60V |
| Minimum Wavelength Detected | 790nm |
| Maximum Wavelength Detected | 1050nm |
| Angle of Half Sensitivity | ± 65 ° |
Key Features
- Operates over a wavelength range of 790 nm to 1050 nm.
- Provides a ±65° angle of half sensitivity for broad detection coverage.
- Compact dimensions of 5 x 4.24 x 1.12 mm suitable for SMD applications.
- Features a daylight blocking filter for improved IR detection accuracy.
- Typical rise and fall times are both 100 ns, enabling fast signal response.
- Robust against temperature extremes from -40°C to 100°C for industrial reliability.
- Forward polarity photodiode with 4 pins for easy PCB integration.
- Complies with WEEE and RoHS environmental standards for safe use.
Product Description
Vishay TEMD5110X01 Infrared Photodiode is a surface mount device with a top view package designed for high-speed and high-sensitivity infrared detection. It operates optimally across a spectral range of 790 nm to 1050 nm, peaking at 940 nm, making it ideal for IR radiation detection, remote control receivers, and data transmission systems.
The photodiode features a compact layout measuring 5 mm in length, 4.24 mm in width, and 1.12 mm in height, suitable for space-constrained electronic assemblies. The device utilizes a daylight blocking filter, enhancing its performance against ambient light interference.
With an angular half sensitivity of ±65°, it provides a broad field of detection. The fast response times, 100 ns for both rise and fall, ensure accurate and timely signal readings in dynamic applications. Its operating temperature range from -40°C to 100°C supports reliable operation under harsh industrial, automotive, and consumer electronic conditions.
This photodiode is designed with 4 pins and a forward polarity, compatible with standard surface mount assembly techniques. It holds environmental compliance with WEEE 2002/96/EC and RoHS Directive 2002/95/EC, assuring eco-friendly production. Additionally, it meets the automotive standard AEC-Q101, certifying its suitability for automotive system integration.
Applications include optoelectronic circuits, industrial IR sensing, automated manufacturing processes, and communication systems in sectors like industrial automation, automotive electronics, and consumer devices.
Operates in infrared spectrum with peak sensitivity at 940 nm. ±65° angle of half sensitivity covers broad detection areas. Surface mount top view package enables compact PCB design. Fast rise and fall time of 100 ns for accurate signal capture.
Daylight blocking filter reduces ambient light interference. Wide operating temperature range (-40°C to 100°C) for varied environments. Meets WEEE and RoHS for environmental safety. Automotive grade certified by AEC-Q101 for reliable performance.
Discover more electronic components and Photodiodes at EnvMart to support your industrial, manufacturing, and automation needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It operates over a wavelength range of 790 nm to 1050 nm, with peak sensitivity at 940 nm.
The photodiode provides a ±65° angle of half sensitivity, allowing for broad detection coverage.
This model has compact dimensions of 5 mm in length, 4.24 mm in width, and 1.12 mm in height.
Both the rise and fall times are typically 100 ns, enabling fast signal response.
It operates reliably within a temperature range of -40°C to 100°C.
This model features 4 pins for easy PCB integration.
It is designed for surface mount applications with a top view package.
It complies with WEEE 2002/96/EC and RoHS Directive 2002/95/EC for environmental safety.
The maximum operating temperature is 100°C.
It meets the automotive standard AEC-Q101, certifying its suitability for automotive applications.
The open circuit voltage is 350 mV.
It is suitable for applications including optoelectronic circuits, industrial IR sensing, and communication systems.
