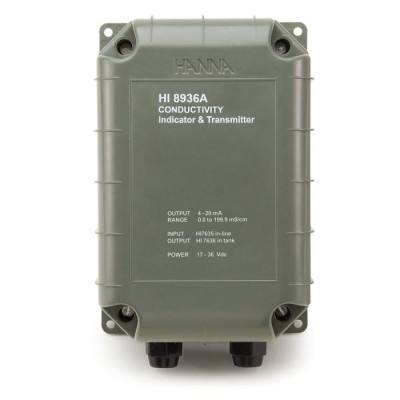

HI8936 Conductivity Transmitter, Four-Ring Probe, 0.00–19.99 mS/cm, IP65 | EnvMart

Free Delivery in India | Lowest Global Shipping Charges

Hanna Conductivity Transmitters to use with Four-ring Probe - HI8936-0.00 to 19.99 mS/cm-Without LCD

Name: Hanna Conductivity Transmitters to use with Four-ring Probe - HI8936-0.00 to 19.99 mS/cm-Without LCD
Brand: Hanna
SKU: 72113
Price: 355.18 USD
Availability: InStock



Category Transmitters Brand Hanna

Specifications

Resolution	0.01 ms/cm
Accuracy	±2% f.s. (excluding probe error)
Measurement Range	0.00 to 19.99 mS/cm
Model	HI8936

Key Features

HI8936 Conductivity Transmitter with Four-Ring Probe, without LCD, 0.00–19.99 mS/cm, IP65, suitable for industrial conductivity measurement in demanding environments.

Utilizes a four-ring potentiometric probe for stable and contamination-resistant measurement.
Automatic temperature compensation ensures accurate readings from 0 to 50°C.
Manual two-point calibration with offset and slope trimmers for precise performance.
EC measurement range of 0.00 to 19.99 mS/cm with a high resolution of 0.01 mS/cm.
Operates on 12–30 VDC power supply (without LCD) for flexible installation.
Robust IP65 protected enclosure for installation in challenging industrial settings.
Wall-mountable design for convenient placement near measurement points.
Compatible with HI7635 in-line and HI7638 platinum probes (probes sold separately).
Designed for environments up to 95% RH (non-condensing), suitable for a variety of water analysis tasks.

Product Description

The HI8936 Conductivity Transmitter is an advanced industrial device designed for reliable and accurate measurement of electrical conductivity in a wide range of water and process applications. Featuring a four-ring potentiometric probe, this transmitter is highly resistant to contamination, ensuring stable and consistent readings even in unclean solutions. The model is equipped with automatic temperature compensation from 0 to 50°C, which provides precise results despite temperature fluctuations.

This version of the HI8936 does not include an LCD display, making it robust for environments where display readability is not required or remotely monitored. It accepts a supply voltage of 12–30 VDC and supports manual two-point calibration using the built-in offset and slope trimmers. The transmitter supports a key measurement range of 0.00 to 19.99 mS/cm, with a resolution of 0.01 mS/cm and an accuracy of ±2% f.s. (excluding probe error).

EC accuracy: ±2% Full Scale (excluding probe error).
Wall-mountable enclosure with dimensions 165 x 110 x 71 mm (6.5 x 4.3 x 2.8 inches).
Highly durable design conforming to IP65 for protection against dust and water jets.
Compatible with HI7635 for in-line applications or HI7638 platinum probes (not included).
Manual EC calibration with offset and slope trimmers for precise setup.
EC range variants: HI8936A/AL (0.0–199.9 mS/cm); HI8936B/BL (0.00–19.99 mS/cm, current model); HI8936C/CL (0–1999 µS/cm); HI8936D/DL (0.0–199.9 µS/cm).
Automatic or fixed temperature compensation (β=2%/°C).
Operates effectively in environments up to 50°C and 95% RH (non-condensing).

This industrial transmitter is ideal for water treatment plants, effluent monitoring, process control, wastewater applications, laboratory setups, and other industrial and commercial utilities where accurate conductivity data is critical. Explore more options in conductivity and electrochemical instruments in the EnvMart Measuring & Testing Instruments category.
