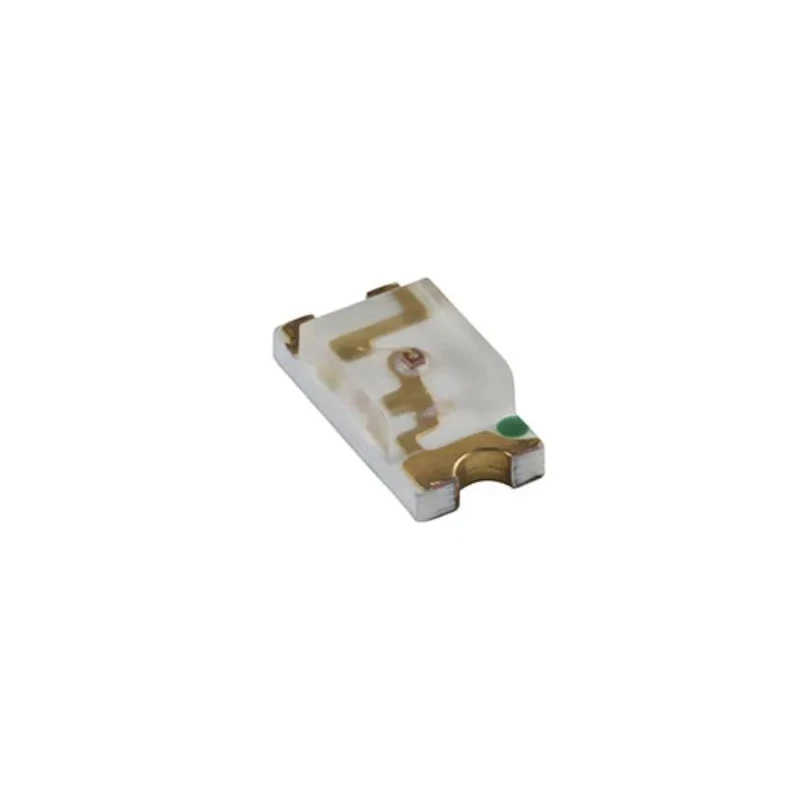

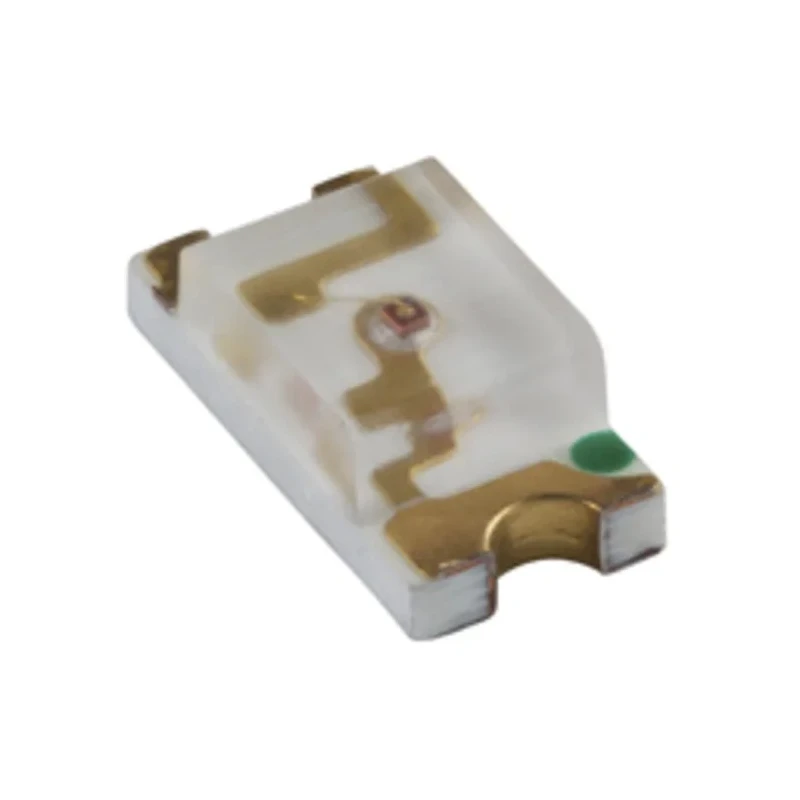

Bivar 2.6 V 78 mW Red LED 3216 Surface Mount SM1206NHC-IL
Specifications
| Country of Origin | China |
|---|---|
| Brand | Bivar |
| Model | SM1206NHC-IL |
| Packaging | Tape & Reel |
| Mount Type | Surface |
| Series | SM1 |
| Maximum forward current | 30mA |
| Viewing angle | 30 ° |
| Package Type | 3216 |
| Standards/Approvals | RoHS |
| LED Colour | Red |
| Dominant Wavelength | 625nm |
| Forward Voltage | 2.6V |
| Number of Pins | 2 |
| LED Luminosity | 1250 mcd |
| Maximum Power Dissipation | 78mW |
| Lens Dimensions | 3.2 x 1.6 x 1.4 mm |
| Lens Shape | Rectangular |
Key Features
- Maximum forward current of 30 mA ensures efficient operation.
- Rectangular water clear lens provides a narrow 30-degree viewing angle.
- LED luminosity of 1250 mcd offers bright, visible illumination.
- Forward voltage rated at 2.6 V with maximum power dissipation of 78 mW.
- Compact lens dimensions of 3.2 x 1.6 x 1.4 mm support surface mount applications.
- RoHS compliant, ensuring environmentally safe manufacturing standards.
- Dominant wavelength of 625 nm produces vivid red color output.
- Package supplied on tape and reel format for automated manufacturing processes.
Product Description
Bivar SM1206NHC-IL 2.6 V Red LED 3216 Surface Mount is a high performance surface mount LED designed for industrial and electronic display applications. Featuring an industry standard 1206 package, this LED offers an excellent balance of brightness and compact form factor.
Operating with a maximum forward current of 30 mA and forward voltage of 2.6 V, the LED delivers a luminous intensity of 1250 mcd which is well suited for indicator lights, status panels, and electronic displays. The rectangular water clear lens with dimensions 3.2 x 1.6 x 1.4 mm provides a narrow viewing angle of 30 degrees, allowing precise light direction and strong visual signals.
This LED is RoHS compliant, ensuring it meets environmental safety standards. The dominant wavelength of 625 nm provides a vivid red output suitable for a variety of signaling and display functions. Mounted on a surface mount device (SMD) 3216 footprint with 2 pins, it is compatible with modern automated PCB assembly techniques. Packaging is provided in tape and reel format, facilitating efficient insertion and production processes.
Typical industrial use cases include electronic component manufacturing, instrument panels, automotive indicators (non-automotive standard compliant), consumer electronics, laboratory equipment status displays, and other applications requiring reliable visible indicators with low power consumption.
Maximum forward current of 30 mA ensures efficient operation. Rectangular water clear lens provides a narrow 30-degree viewing angle. LED luminosity of 1250 mcd offers bright, visible illumination. Forward voltage rated at 2.6 V with maximum power dissipation of 78 mW.
Compact lens dimensions of 3.2 x 1.6 x 1.4 mm support surface mount applications. RoHS compliant, ensuring environmentally safe manufacturing standards. Dominant wavelength of 625 nm produces vivid red color output. Package supplied on tape and reel format for automated manufacturing processes.
2-pin design compatible with standard surface mount PCB footprints. Explore more in the Electronics & Electricals category for high quality LEDs and component solutions at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum forward current for this model is 30 mA, ensuring efficient operation.
The forward voltage is rated at 2.6 V.
This LED has a luminous intensity of 1250 mcd, providing bright, visible illumination.
The lens dimensions are 3.2 x 1.6 x 1.4 mm, supporting surface mount applications.
It features a narrow viewing angle of 30 degrees, allowing precise light direction.
The dominant wavelength is 625 nm, producing a vivid red color output.
The LED is supplied in tape and reel format, facilitating automated manufacturing processes.
This model supports surface mount applications with a standard 3216 package type.
Yes, it is RoHS compliant, ensuring it meets environmental safety standards.
This LED has a 2-pin design, compatible with standard surface mount PCB footprints.
It is suitable for applications such as indicator lights, status panels, and electronic displays.
The maximum power dissipation for this model is 78 mW.
