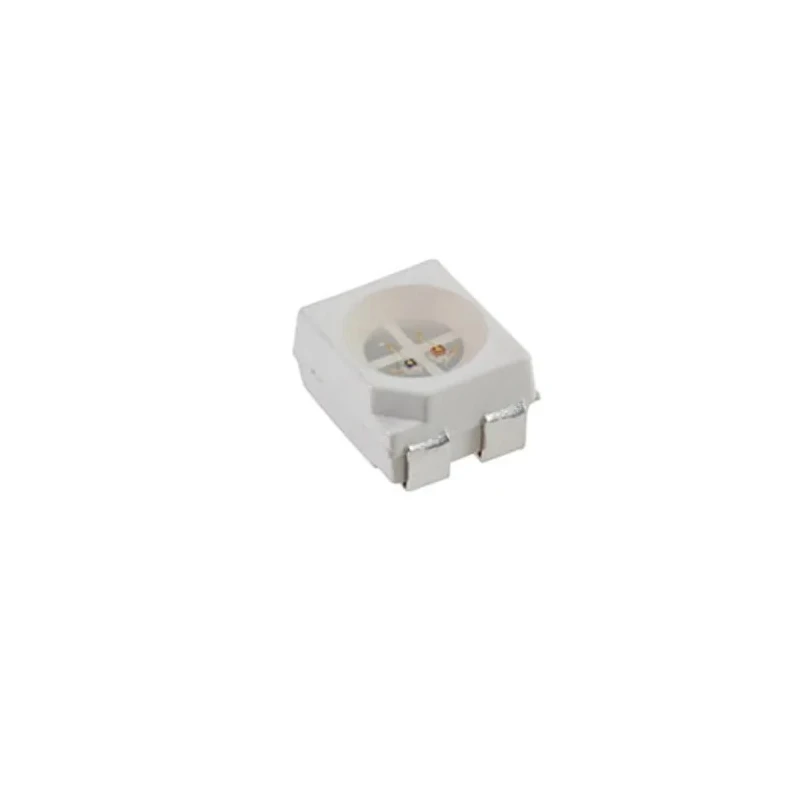

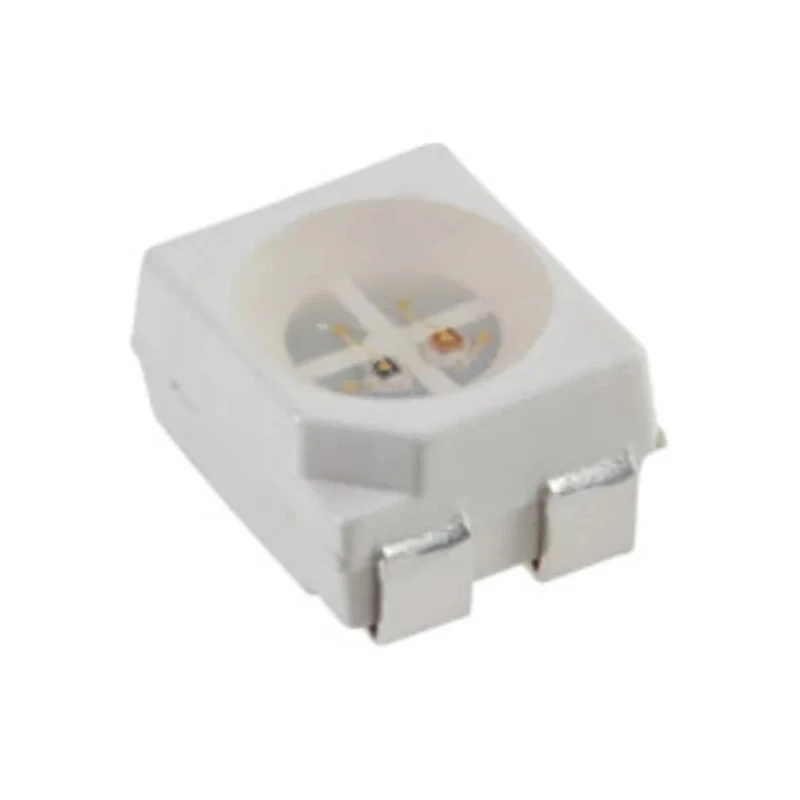

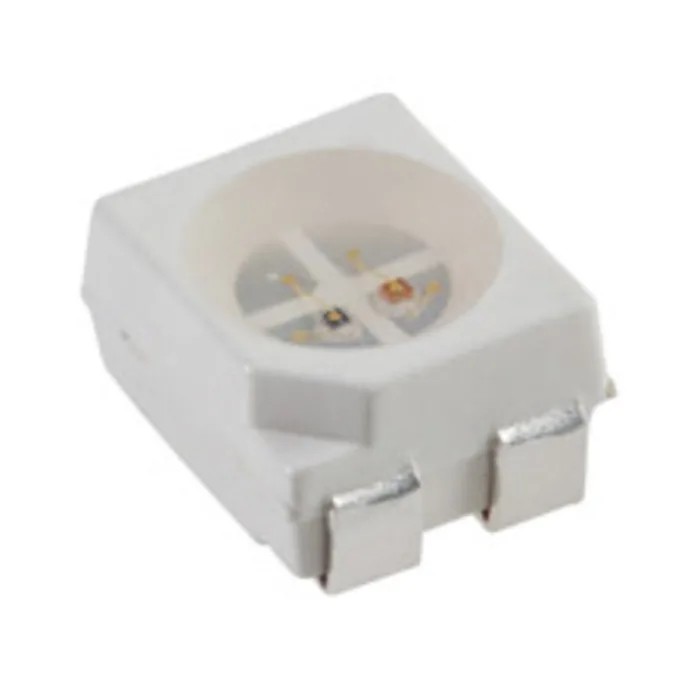

Bivar 2.3 V Green, Red, Yellow LED PLCC 4 Surface SMTL4-RGY
Specifications
| Country of Origin | China |
|---|---|
| Brand | Bivar |
| Model | SMTL4-RGY |
| Packaging | Anti-Static Poly Bag |
| Mount Type | Surface |
| Series | SMTL4-RGY |
| Number Of Leds | 3 |
| Maximum forward current | 30mA |
| Viewing angle | 120 ° |
| Package Type | PLCC 4 |
| Standards/Approvals | RoHS |
| LED Colour | Green, Red, Yellow |
| Dominant Wavelength | 570, 585, 640nm |
| Forward Voltage | 2.3V |
| Number of Pins | 4 |
| LED Luminosity | 16 mcd, 36 mcd, 40 mcd |
| Maximum Power Dissipation | 80mW |
| Lens Dimensions | 3.2 x 2.8 x 1.85 mm |
| Lens Shape | Round |
| Tri-Color LED | Red, Green, and Yellow. 3 Chips in One Low Profile Package |
Key Features
- This tri-color LED combines three chips in one low profile package.
- It has a maximum forward current of 30 mA ensuring efficient performance.
- The LED offers a maximum power dissipation of 80 mW for durability.
- Features a viewing angle of 120 degrees for uniform light output.
- The lens dimensions measure 3.2 x 2.8 x 1.85 mm with a clear round finish.
- Its surface mount PLCC 4 package supports easy PCB mounting.
- Available with anti-static poly bag packaging to prevent damage.
- Suitable for various electronic applications requiring multi-color indication.
Product Description
Bivar SMTL4-RGY LED PLCC 4 Surface is a tri-color light emitting diode designed for industrial and electronic applications. It integrates red, green, and yellow LEDs into a compact PLCC4 surface-mount package with a forward voltage of 2.3 V.
This tri-color LED features three chips housed within a low profile package with a clear, water-clear lens allowing maximum light transmission. The lens shape is round with dimensions 3.2 x 2.8 x 1.85 mm, providing a wide viewing angle of 120 degrees for uniform illumination across interfaces and panels.
The device supports a maximum forward current of 30 mA and a power dissipation of up to 80 mW, making it robust for various operating conditions. The mounting type is surface mount (SMT) allowing easy integration into printed circuit boards for compact assembly designs.
Packaged in an anti-static poly bag, the SMTL4-RGY ensures protection against electrostatic discharge during handling and assembly. Its tri-color combination offers versatile use in control panels, indicators, and display devices commonly found in industrial, electronic, and commercial sectors.
Combined green, red, and yellow LEDs in one surface mount package. Compact PLCC 4 package with wide 120° viewing angle. Maximum forward current rating of 30 mA for reliable operation. Power dissipation capability of 80 mW ensures durability.
Clear round water-clear lens for uniform light output. Easy PCB integration with surface mount technology. Protective anti-static packaging to prevent damage during transport. Ideal for use in electronic components, displays, and indicators.
This tri-color LED product by Bivar is manufactured in China and complies with RoHS standards, ensuring it meets environmental and safety requirements. It is well suited for applications in industrial electronics, instrumentation, signaling, and consumer electronics where multicolor LED indicators are necessary.
Explore more high-quality LEDs and electronic components in the EnvMart Electronics Components category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum forward current for this LED is 30 mA, ensuring efficient performance in various applications.
It features a viewing angle of 120 degrees, providing uniform light output across interfaces and panels.
The LED has a maximum power dissipation of 80 mW, which contributes to its durability in different operating conditions.
The lens dimensions measure 3.2 x 2.8 x 1.85 mm, with a round shape that allows for maximum light transmission.
This model supports surface mount technology (SMT), allowing for easy integration into printed circuit boards.
The SMTL4-RGY LED combines red, green, and yellow colors in one compact package, utilizing three chips.
The forward voltage for this LED is 2.3 V, which is suitable for various electronic applications.
It is packaged in an anti-static poly bag to prevent damage during handling and assembly.
This model complies with RoHS standards, ensuring it meets environmental and safety requirements.
The luminosity levels are 16 mcd for green, 36 mcd for yellow, and 40 mcd for red.
The SMTL4-RGY LED has 4 pins, which are used for its surface mount configuration.
It is suitable for various electronic applications requiring multi-color indication, such as control panels and displays.
