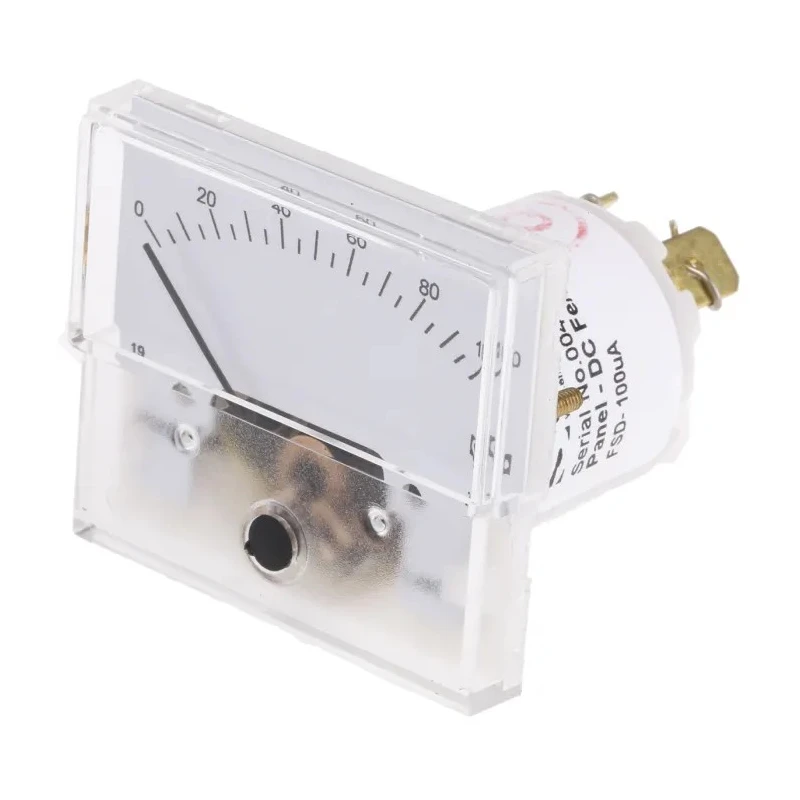

Sifam Tinsley Analogue Panel Ammeter, 25 A DC, ±2.5% Accuracy, Moving Coil, IS 10992

Sifam Tinsley IS 10992 Analogue Panel Ammeter is a precision instrument engineered to measure DC currents up to 25 amperes. Its moving coil mechanism ensures accurate and stable readings, making it suitable for industrial, laboratory, and process control applications where reliable current monitoring is essential.

The panel ammeter is specifically designed for installation in control panels, featuring a compact cutout size of 20.2 mm by 42.4 mm for space-efficient integration. The instrument's meter accuracy of ±2.5% provides dependable performance in demanding environments. It operates across an extended temperature range from -25°C to 55°C, allowing for use in a variety of operational climates.

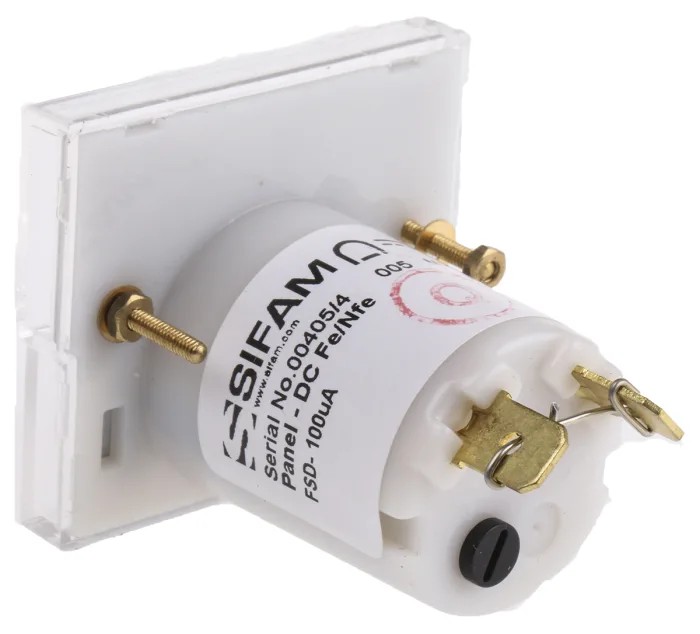

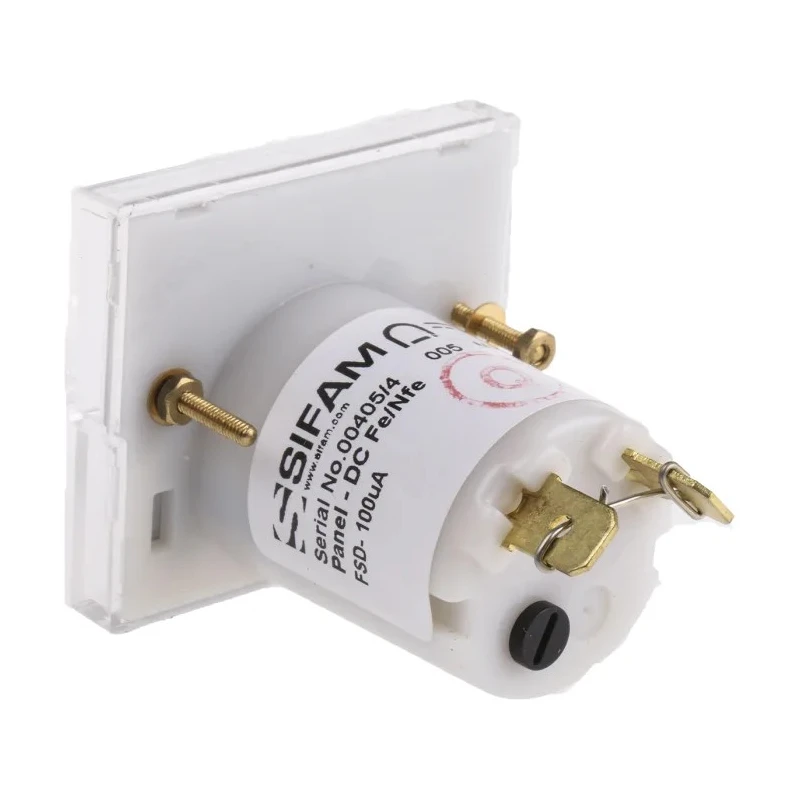

This ammeter is compliant with global standards including IEC 51, ANSI C39.1, EN60 051, BS89, and BS3693, confirming its suitability for regulated industrial installations. Its 6 mm tag terminals facilitate secure electrical connections, contributing to operational safety and ease of maintenance. The maximum voltage measurement capability is 500 V DC, enabling its use in higher voltage circuits.

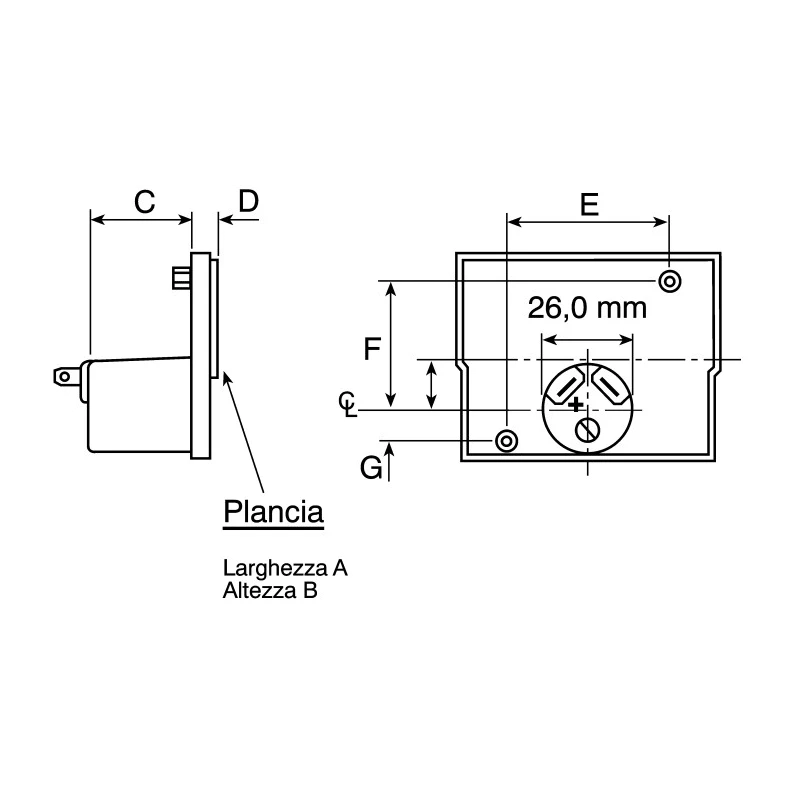

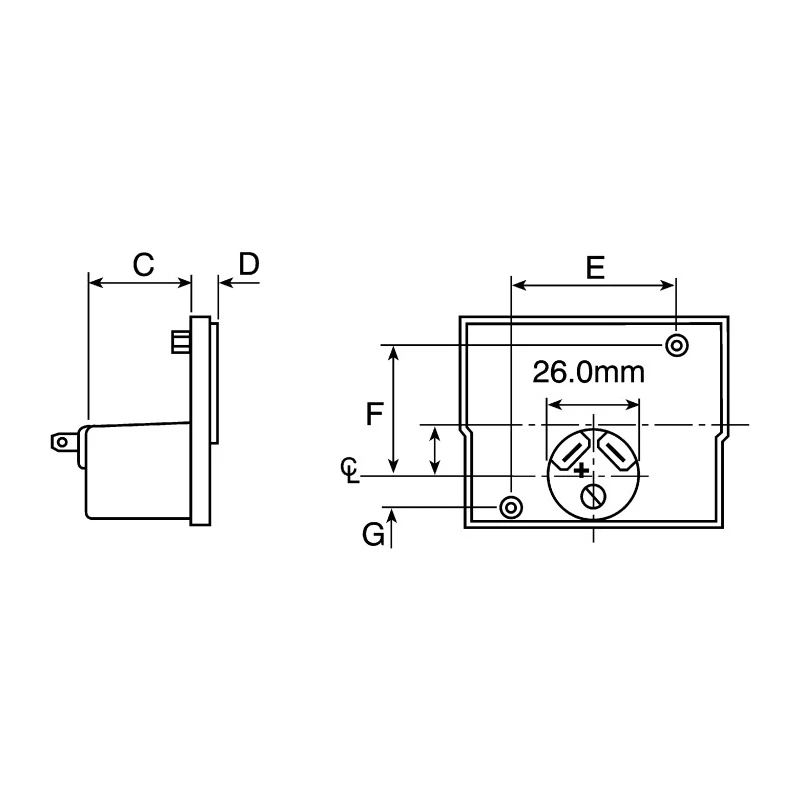

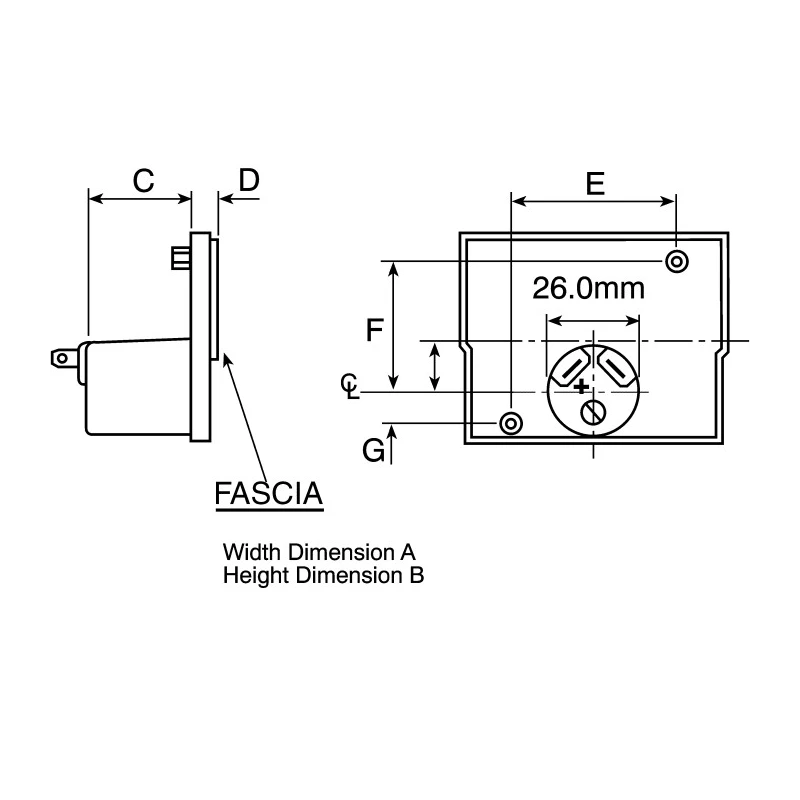

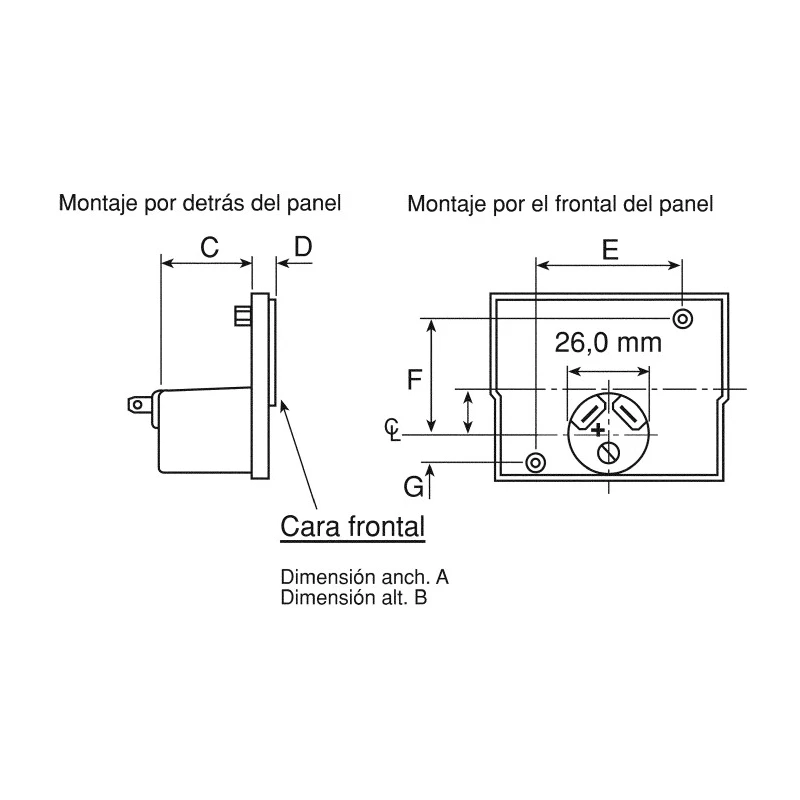

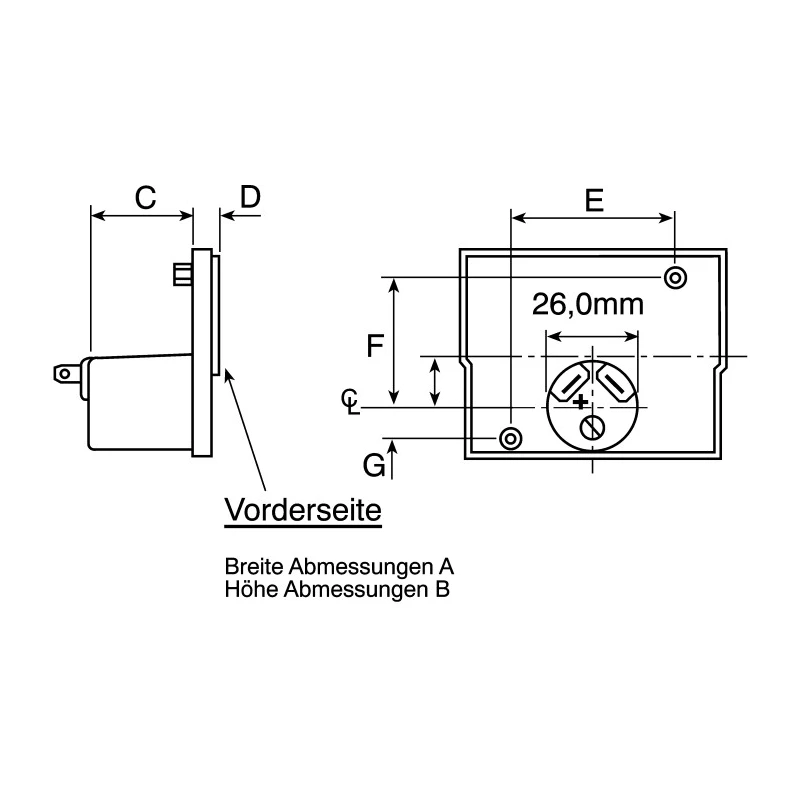

Mounting flexibility is provided through both front and rear options. Front mounting accommodates up to 4 mm maximum panel thickness with a 27 mm diameter cutout, while rear mounting supports up to 6 mm thickness with bezel. Fixing stud sizes are specified as M2 x 10.0 mm for certain panel sizes and M2.5 x 10.0 mm for others, ensuring compatibility with various installation requirements.

Greater accuracy classes, including BS89, IEC51, and EN60051, are integrated into the instrument for rigorous measurement consistency. The ammeter's robust construction is enhanced for industrial reliability, and it is a preferred choice for electrical panel builders, process control engineers, and maintenance teams seeking precise current monitoring solutions.

Applications include energy monitoring in process industries, laboratory instrumentation, industrial automation systems, and electrical panel construction. The IS 10992 is suitable for use where DC current measurement is critical, such as in battery monitoring systems, power distribution boards, and maintenance operations.

Measures DC current up to 25 A with high precision. Moving coil mechanism for reliable and accurate measurement. Panel cutout dimensions: 20.2 mm x 42.4 mm. Meter accuracy: ±2.5%. Operating temperature range: -25°C to 55°C.

Compliant with IEC 51, ANSI C39.1, EN60 051, BS89, and BS3693 standards. Maximum voltage measurement: 500 V DC. Front/rear panel mounting options with precise fixing stud sizes. Secure electrical connections via 6 mm tag terminals.
