HI8614N pH Transmitter, 4-20 mA Galvanic Output, Water-Resistant, IP65 | EnvMart

Free Delivery in India | Lowest Global Shipping Charges

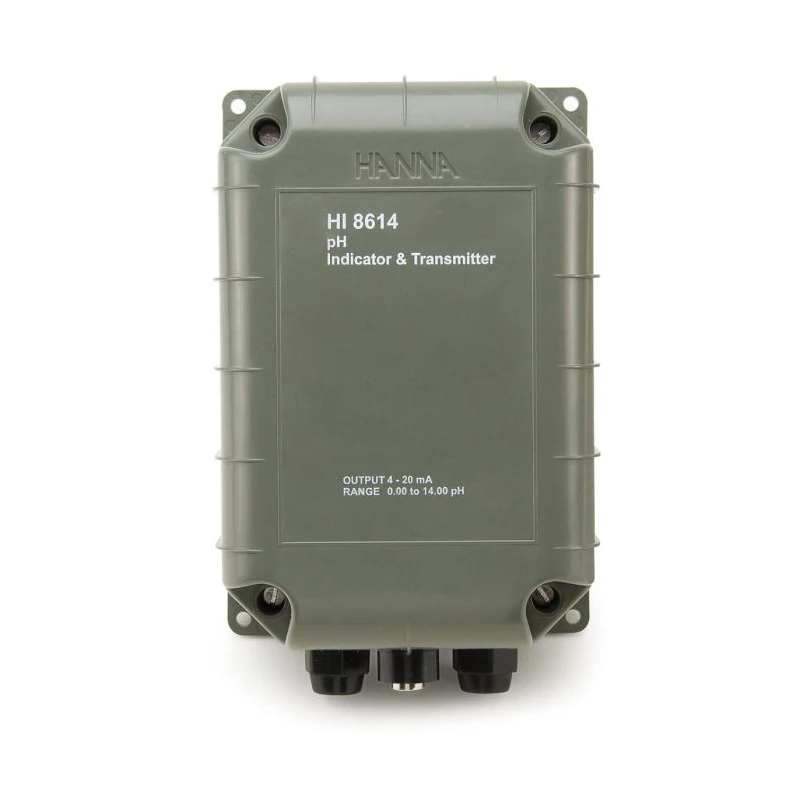

Hanna pH Transmitter with 4-20 mA Galvanically Isolated Output - HI8614-Without LCD

Name: Hanna pH Transmitter with 4-20 mA Galvanically Isolated Output - HI8614-Without LCD
Brand: Hanna
SKU: 72815
Price: 502.74 USD
Availability: InStock



Category Transmitters Brand Hanna

Specifications

Country of Origin	India
Display	None (without LCD)
Power Supply	18–30 VDC
Dimensions	165 x 110 x 71 mm
pH Range	0.00 to 14.00 pH
pH Resolution	0.01 pH
pH Accuracy	±0.02 pH
Environment	0 to 50°C; RH max 95% non-condensing
pH Calibration	Offset: ±2 pH (±2.2 mA); Slope: 86 to 116% (±0.5 mA)
pH Temperature Compensation	Fixed or automatic from 0 to 100°C (with HI76608 probe)
pH Electrode	BNC connector, high impedance
Model	HI8614N
IP Rating	IP65
Weight	1 kg
Product Condition	New
pH Input Impedance	10^12 Ohm
Analog Output Signal	4-20 mA (isolated)

Key Features

HI8614N pH Transmitter is a water-resistant process instrument designed for accurate long-distance pH monitoring in industrial applications, featuring a 4-20 mA isolated analog output and robust signal amplification.

Enables reliable pH measurement from 0.00 to 14.00 pH with high input impedance.
Features galvanically isolated 4-20 mA analog output, ensuring signal stability even over long cable runs.
Compatible with standard high impedance pH probes with BNC connectors for flexible integration.
Provides fast, accurate readings with fixed or automatic temperature compensation up to 100°C using the HI76608 probe.
Industrial-grade water-resistant IP65 housing ensures durability in demanding field environments.
Offers offset calibration ±2 pH (±2.2 mA) and slope calibration 86 to 116% (±0.5 mA) for precise maintenance.
Suitable for process control in water treatment, manufacturing, and laboratory automation setups.
No local LCD display (see HI8614LN for version with display), reducing on-site adjustment errors.
Operates on 18–30 VDC supply and maintains stable output across varying load and cable capacitance conditions.

Product Description

The HI8614N pH Transmitter with 4-20 mA galvanically isolated output is engineered for precise and long-distance measurement of pH in industrial process control systems. Designed to work with a standard high impedance pH probe (BNC connector), this transmitter features a special high impedance amplifier and robust water-resistant enclosure conforming to IP65 standards, making it ideal for harsh field environments.

Supports accurate pH readings from 0.00 to 14.00 pH with high input impedance (10¹² Ohm), enabling compatibility with various pH electrodes.
Galvanically isolated 4-20 mA analog output provides superior noise immunity and reliability for transmission over extended cable distances.
Fixed or automatic temperature compensation (0–100°C) ensures rapid, stable, and accurate measurement even with fluctuating sample temperatures, when used with HI76608 probe.
Industrial-grade offset and slope calibration, including offset adjustment ±2 pH (±2.2 mA) and slope range from 86 to 116% (±0.5 mA), facilitate routine recalibration and maintenance.
Water-resistant IP65 housing ensures the transmitter stands up to dust, spray, and humidity, making it suitable for continuous deployment in process control or water treatment plants.
Power requirements of 18–30 VDC (HI8614N) allow convenient compatibility with common industrial power supplies.
No onboard LCD display eliminates on-site tampering and reduces points of failure (for version with display, refer to HI8614LN).
Can be used in manufacturing plants, laboratories, wastewater treatment facilities, water purification systems, and other demanding environments requiring accurate pH monitoring and control.

Dimensions: 165 x 110 x 71 mm; Weight: 1 kg. The device accepts pH electrodes via BNC, includes IP65 protection, and supports a relative humidity of up to 95% non-condensing in temperatures from 0 to 50°C.

Explore related process transmitters and pH measurement solutions in the Industrial Measuring & Testing Instruments category on EnvMart to find the right fit for your application.

Hanna pH Transmitter with 4-20 mA Galvanically Isolated Output - HI8614-Without LCD

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

Frequently Asked Questions

The HI8614N pH transmitter measures pH levels from 0.00 to 14.00 pH, providing accurate readings for a wide range of applications.

Yes, the HI8614N features an IP65 water-resistant housing, making it suitable for outdoor and harsh environmental conditions.

The HI8614N operates on a power supply of 18–30 VDC, compatible with common industrial power sources.

The HI8614N is compatible with standard high impedance pH probes that have BNC connectors, allowing for flexible integration.

No, the HI8614N does not have a local LCD display, which reduces the risk of on-site adjustment errors. For a version with a display, refer to the HI8614LN.

The HI8614N offers offset calibration of ±2 pH (±2.2 mA) and slope calibration from 86 to 116% (±0.5 mA) for precise maintenance.

The HI8614N is ideal for use in manufacturing plants, laboratories, wastewater treatment facilities, and water purification systems requiring accurate pH monitoring.

The HI8614N measures 165 x 110 x 71 mm and weighs 1 kg, making it compact for various installation settings.

The galvanically isolated 4-20 mA output provides superior noise immunity and reliability for long-distance signal transmission, ensuring stable performance.

The HI8614N can operate in temperatures ranging from 0 to 50°C, with fixed or automatic temperature compensation up to 100°C when used with the HI76608 probe.
