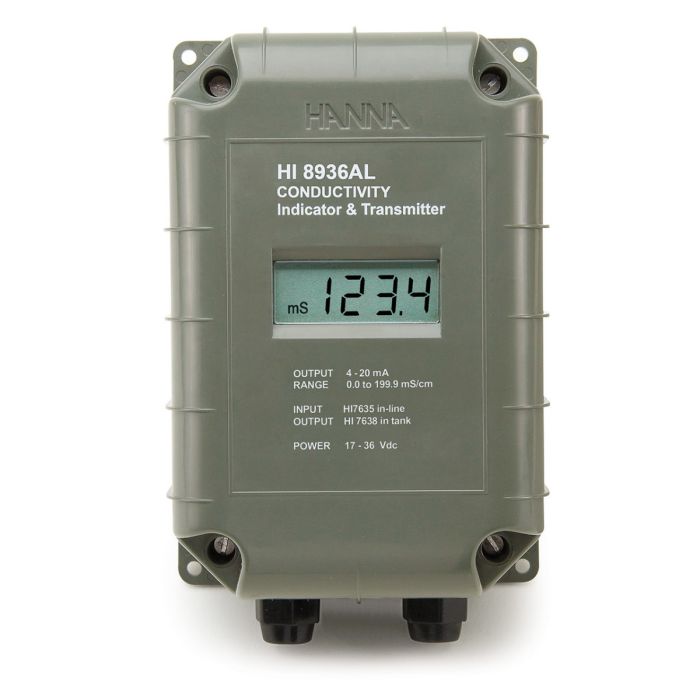

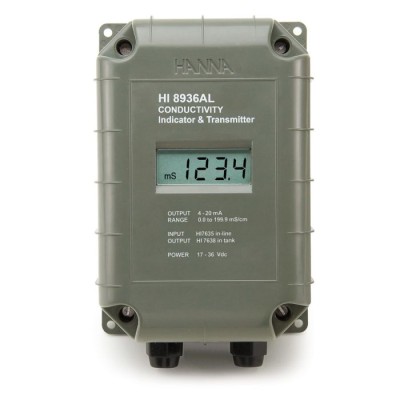

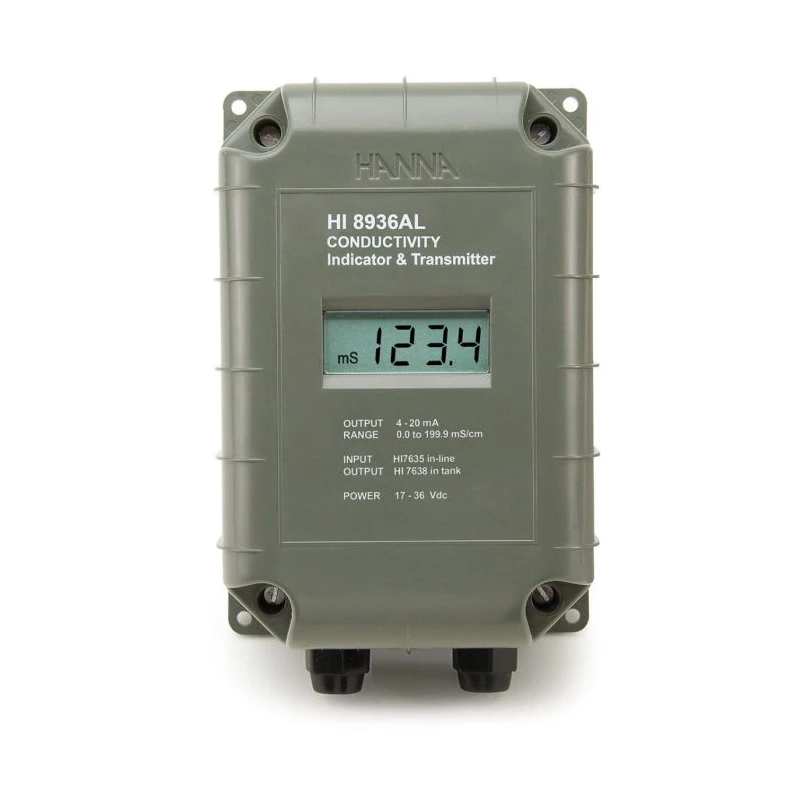

Hanna Conductivity Transmitters to use with Four-ring Probe - HI8936-0.0 to 199.9 mS/cm-With LCD
Specifications
| EC Range | HI8936A & AL: 0.0 to 199.9 mS/cm; HI8936B & BL: 0.00 to 19.99 mS/cm; HI8936C & CL: 0 to 1999 µS/cm; HI8936D & DL: 0.0 to 199.9 µS/cm |
|---|---|
| EC Resolution | HI8936A & AL: 0.1 mS/cm; HI8936B & BL: 0.01 mS/cm; HI8936C & CL: 1 µS/cm; HI8936D & DL: 0.1 µS/cm |
| EC Accuracy | ±2% f.s. (excluding probe error) |
| Model | HI8936 |
| Probe type | Four-ring potentiometric |
Key Features
HI8936 Conductivity Transmitter with LCD and Four-Ring Probe is designed for high accuracy, industrial monitoring of electrical conductivity (EC) across multiple ranges up to 199.9 mS/cm.
- Utilizes a four-ring potentiometric probe, ensuring high accuracy and resistance to contamination and fouling.
- Equipped with automatic temperature compensation (ATC) with integrated temperature sensor for reliable readings.
- Manual, two-point calibration with offset and slope trimmers for user flexibility and accuracy.
- Large, optional backlit LCD display allows for easy reading in varied lighting environments.
- Wall-mountable IP65 housing provides robust protection for industrial or laboratory environments.
- Compatible with HI7635 (in-line) and HI7638 (platinum) EC/TDS probe, supporting a wide range of applications.
- Operates reliably from 0 to 50°C with up to 95% non-condensing humidity, ideal for process monitoring.
- Manual and automatic temperature compensation selectable, with correction coefficient β=2%/°C for precision.
- Wide power supply range: 12-30 VDC (without LCD) or 17-36 VDC (with LCD).
- Peak accuracy of ±2% f.s. (excluding probe error); range and resolution configurable by HI8936 series model selection.
Product Description
The Hanna HI8936 Conductivity Transmitter with Four-Ring Probe and LCD is a robust, industrial-grade instrument engineered for precise and reliable electrical conductivity (EC) measurement in challenging environments. The advanced four-ring potentiometric probe offers exceptional resistance to contamination from unclean solutions, making this transmitter ideal for continuous monitoring in process control, water treatment, laboratory, and industrial manufacturing setups.
This device features automatic temperature compensation (ATC) for rapid, accurate readings even during sudden temperature variations and is configurable for fixed or automatic compensation between 0 to 50°C. The transmitter supports manual, two-point calibration via offset and slope trimmers to maintain high measurement accuracy. For user convenience, the HI8936 series offers a large, backlit LCD display for effortless visualization of results in any lighting condition.
- Designed for reliable EC measurement in ranges up to 199.9 mS/cm (with alternative ranges depending on sub-model selected within HI8936 series).
- Four-ring probe system delivers stable, contamination-resistant performance even in unclean or particulate-laden samples.
- Compatible with HI7635 and HI7638 EC/TDS probes for in-line and platinum applications (probes not included).
- Manual, two-point calibration for easy field maintenance and accuracy assurance.
- Automatic or fixed temperature compensation provides flexibility across diverse sample types and environments.
- Large, optional backlit LCD display for easy monitoring and diagnostics.
- Wall mountable and rugged, IP65-rated enclosure suitable for industrial or laboratory installation.
- Wide supply voltage range, supporting integration into new or retrofit process control panels.
- Suitable for water treatment, chemical process, food and beverage, R&D facilities, and other industrial/laboratory conductivity monitoring requirements.
Package contents: 1 HI8936 Conductivity Transmitter unit (probe not included); supports HI7635/HI7638 probes (order separately).
Explore more process transmitters and industrial conductivity measurement solutions at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Hanna HI8936 Conductivity Transmitter has different measurement ranges depending on the model: HI8936A & AL measures from 0.0 to 199.9 mS/cm, HI8936B & BL from 0.00 to 19.99 mS/cm, HI8936C & CL from 0 to 1999 µS/cm, and HI8936D & DL from 0.0 to 199.9 mS/cm.
The accuracy of the HI8936 Conductivity Transmitter is ±2% full scale (excluding probe error).
The HI8936 Conductivity Transmitter is compatible with the HI7635 in-line probe and the HI7638 platinum EC/TDS probe, which must be ordered separately.
The resolution varies by model: HI8936A & AL has a resolution of 0.1 mS/cm, HI8936B & BL has 0.01 mS/cm, HI8936C & CL has 1 µS/cm, and HI8936D & DL has 0.1 mS/cm.
The HI8936 features automatic temperature compensation (ATC) with a selectable correction coefficient of β=2%/°C, which can be configured for fixed or automatic compensation between 0 to 50°C.
The specific dimensions and weight of the HI8936 Conductivity Transmitter are not provided in the available data.
The HI8936 Conductivity Transmitter operates on a power supply range of 12-30 VDC without the LCD or 17-36 VDC with the LCD.
Yes, the HI8936 Conductivity Transmitter features a wall-mountable design and comes in an IP65-rated enclosure suitable for industrial or laboratory environments.
The HI8936 allows for manual, two-point calibration with offset and slope trimmers, providing flexibility for maintaining measurement accuracy.
The HI8936 Conductivity Transmitter is suitable for use in water treatment, chemical processes, food and beverage applications, and R&D facilities, among others.
The HI8936 is equipped with a large, optional backlit LCD display for easy reading in various lighting conditions, enhancing usability in different environments.
The HI8936 uses a four-ring potentiometric probe type, which provides high accuracy and resistance to contamination and fouling.
